2040247 Series

Catalog

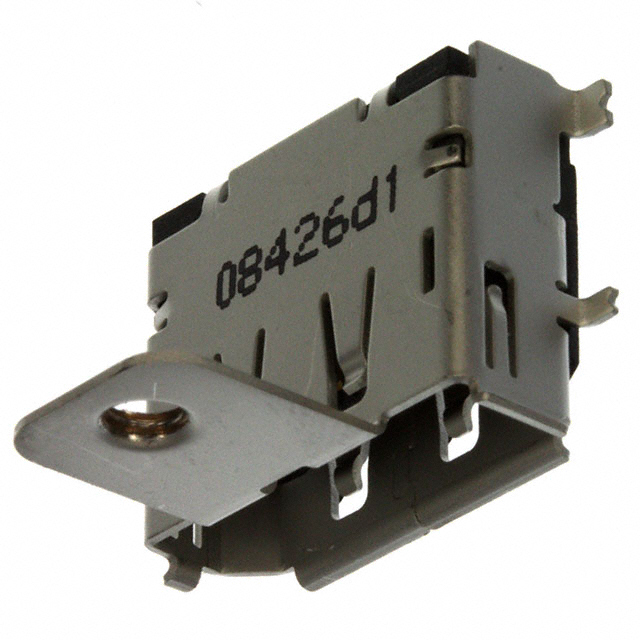

CONN RCP 1.1A DISPLAYPORT SMD RA

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Finish	Voltage - Rated	Shell/Shielding Material	Termination	Mating Cycles	Insulation Color	Number of Ports	Connector Type	Current Rating (Amps)	Mounting Feature	Material Flammability Rating	Gender	Specifications
TE Connectivity Raychem Cable Protection 5-2040247-5	Board Guide	85 °C	-40 °C	Surface Mount Right Angle	Gold	40 VAC	Copper Alloy	Solder	10000	Black	1	DisplayPort	500 mA	Flange Horizontal	UL94 V-0	Receptacle	Display Port 1.1a
TE Connectivity Raychem Cable Protection 2040247-5	Board Guide	85 °C	-40 °C	Surface Mount Right Angle	Gold	40 VAC	Copper Alloy	Solder	10000	Black	1	DisplayPort	500 mA	Flange Horizontal	UL94 V-0	Receptacle	Display Port 1.1a
