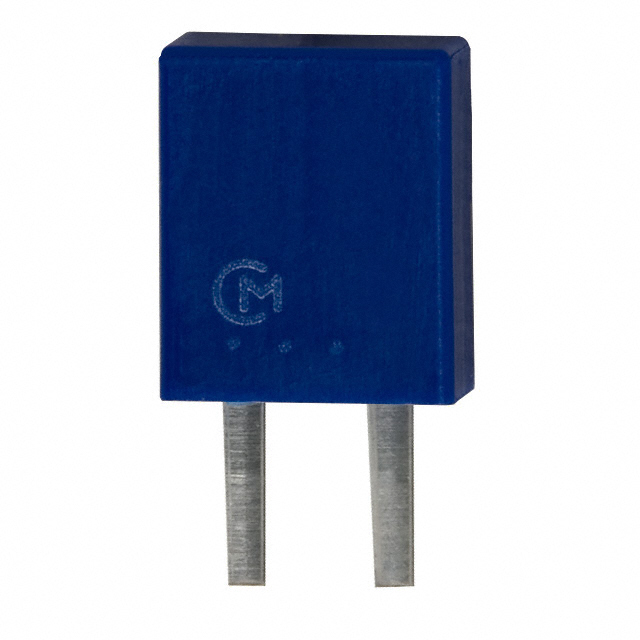

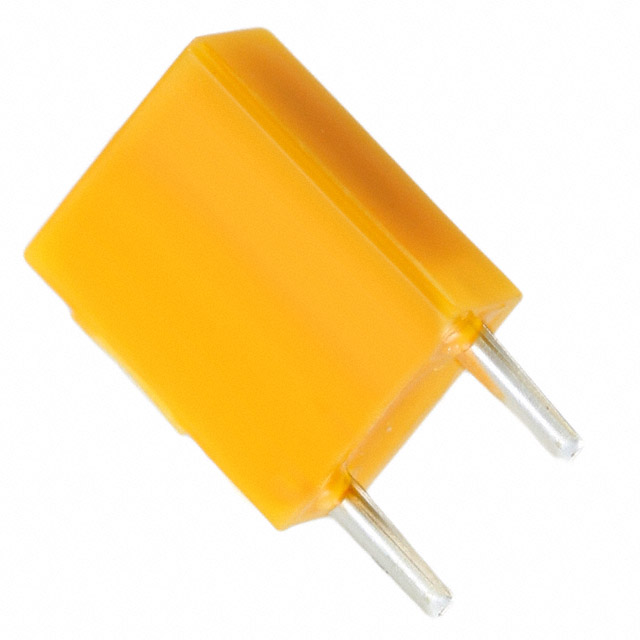

CSBLA Series

Catalog

CERAMIC RES 455.0000KHZ T/H

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Frequency Stability	Mounting Type	Frequency	Package / Case	Frequency Tolerance	Impedance	Type	Height [z]	Height [z]	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Size / Dimension [x]	Size / Dimension [y]	Package / Case
Murata Electronics CSBLA455KEC8-B0	3.5 mm	0.138 in	0.276 "	7 mm	0.3 %	Through Hole	455 kHz	Radial Box - 2 Lead 5.00mm Pitch	2 kHz	30 Ohms	Ceramic	9 mm	0.354 in	80 °C	-20 ░C
Murata Electronics CSBLA1M00J58-B0	2.2 mm			5 mm	0.3 %	Through Hole	1 MHz	Radial Box	0.5 %	100 Ohms	Ceramic	6 mm	0.236 in	80 °C	-20 ░C	100 pF	0.197 in	0.087 in	2 Lead 2.5 mm
Murata Electronics CSBLA922KJ58-B0	3.5 mm	0.138 in	0.276 "	7 mm		Through Hole		Radial Box - 2 Lead 5.00mm Pitch				9.3 mm	0.366 in
Murata Electronics CSBLA800KJ58-B0	2.2 mm			5 mm	0.3 %	Through Hole	800 kHz	Radial Box	0.5 %	60 Ohms	Ceramic	6 mm	0.236 in	80 °C	-20 ░C	100 pF	0.197 in	0.087 in	2 Lead 2.5 mm
Murata Electronics CSBLA480KEC8-B0	3.5 mm	0.138 in	0.276 "	7 mm	0.3 %	Through Hole	480 kHz	Radial Box - 2 Lead 5.00mm Pitch	2 kHz	30 Ohms	Ceramic	9 mm	0.354 in	80 °C	-20 ░C
