146276 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

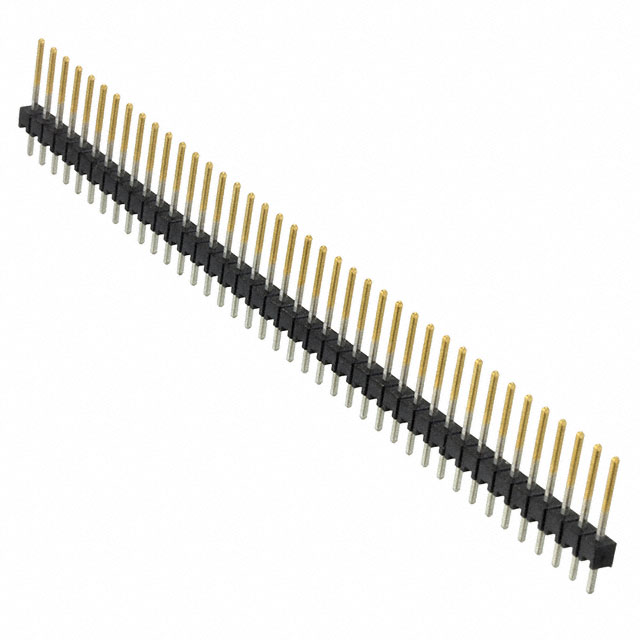

CONN HEADER VERT 38POS 2.54MM

Part	Insulation Height	Insulation Height	Contact Shape	Fastening Type	Contact Type	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Length - Mating [x]	Contact Length - Mating [x]	Shrouding	Number of Positions Loaded	Termination	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Connector Type	Number of Positions	Contact Material	Number of Rows	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material
TE Connectivity Raychem Cable Protection 9-146276-0-38	0.09 in	2.29 mm	Square	Push-Pull	Male Pin	0.1 in	2.54 mm	3 A	0.318 "	8.08 mm	Unshrouded	All	Solder	Through Hole	3.18 mm	0.125 in	Tin	UL94 V-0	2.54 µm	100 µin	Board to Board Cable	Breakaway Header	38	Copper Alloy	1	Black	-65 ░C	105 ░C	Gold	13.55 mm	0.533 in	15 µin	0.38 µm	Liquid Crystal Polymer (LCP)
TE Connectivity Raychem Cable Protection 9-146276-0-04	0.09 in	2.29 mm	Square	Push-Pull	Male Pin	0.1 in	2.54 mm	3 A	0.318 "	8.08 mm	Unshrouded	All	Solder	Through Hole	3.18 mm	0.125 in	Tin	UL94 V-0	2.54 µm	100 µin	Board to Board Cable	Breakaway Header	4	Copper Alloy	1	Black	-65 ░C	105 ░C	Gold	13.55 mm	0.533 in	15 µin	0.38 µm	Liquid Crystal Polymer (LCP)
TE Connectivity Raychem Cable Protection 6-146276-0	0.09 in	2.29 mm	Square	Push-Pull	Male Pin	0.1 in	2.54 mm	3 A	0.318 "	8.08 mm	Unshrouded	All	Solder	Through Hole	3.18 mm	0.125 in	Tin	UL94 V-0	2.54 µm	100 µin	Board to Board Cable	Breakaway Header	10	Copper Alloy	1	Black	-65 ░C	105 ░C	Gold	13.55 mm	0.533 in	15 µin	0.38 µm	Liquid Crystal Polymer (LCP)
TE Connectivity Raychem Cable Protection 9-146276-0-06	0.09 in	2.29 mm	Square	Push-Pull	Male Pin	0.1 in	2.54 mm	3 A	0.318 "	8.08 mm	Unshrouded	All	Solder	Through Hole	3.18 mm	0.125 in	Tin	UL94 V-0	2.54 µm	100 µin	Board to Board Cable	Breakaway Header	6	Copper Alloy	1	Black	-65 ░C	105 ░C	Gold	13.55 mm	0.533 in	15 µin	0.38 µm	Liquid Crystal Polymer (LCP)
TE Connectivity Raychem Cable Protection 9-146276-0-25	0.09 in	2.29 mm	Square	Push-Pull	Male Pin	0.1 in	2.54 mm	3 A	0.318 "	8.08 mm	Unshrouded	All	Solder	Through Hole	3.18 mm	0.125 in	Tin	UL94 V-0	2.54 µm	100 µin	Board to Board Cable	Breakaway Header		Copper Alloy	1	Black	-65 ░C	105 ░C	Gold	13.55 mm	0.533 in	15 µin	0.38 µm	Liquid Crystal Polymer (LCP)
TE Connectivity Raychem Cable Protection 4-146276-0	0.09 in	2.29 mm	Square	Push-Pull	Male Pin	0.1 in	2.54 mm	3 A	0.318 "	8.08 mm	Unshrouded	All	Solder	Through Hole	3.18 mm	0.125 in	Tin-Lead	UL94 V-0	2.54 µm	100 µin	Board to Board Cable	Breakaway Header	40	Copper Alloy	1	Black	-65 ░C	105 ░C	Gold	13.55 mm	0.533 in	15 µin	0.38 µm	Liquid Crystal Polymer (LCP)
TE Connectivity Raychem Cable Protection 9-146276-0-30	0.09 in	2.29 mm	Square	Push-Pull	Male Pin	0.1 in	2.54 mm	3 A	0.318 "	8.08 mm	Unshrouded	All	Solder	Through Hole	3.18 mm	0.125 in	Tin	UL94 V-0	2.54 µm	100 µin	Board to Board Cable	Breakaway Header	30	Copper Alloy	1	Black	-65 ░C	105 ░C	Gold	13.55 mm	0.533 in	15 µin	0.38 µm	Liquid Crystal Polymer (LCP)
TE Connectivity Raychem Cable Protection 9-146276-0-03	0.09 in	2.29 mm	Square	Push-Pull	Male Pin	0.1 in	2.54 mm	3 A	0.318 "	8.08 mm	Unshrouded	All	Solder	Through Hole	3.18 mm	0.125 in	Tin	UL94 V-0	2.54 µm	100 µin	Board to Board Cable	Breakaway Header		Copper Alloy	1	Black	-65 ░C	105 ░C	Gold	13.55 mm	0.533 in	15 µin	0.38 µm	Liquid Crystal Polymer (LCP)
TE Connectivity Raychem Cable Protection 7-146276-1	0.09 in	2.29 mm	Square	Push-Pull	Male Pin	0.1 in	2.54 mm	3 A	0.318 "	8.08 mm	Unshrouded	All	Solder	Through Hole	3.18 mm	0.125 in	Tin	UL94 V-0	2.54 µm	100 µin	Board to Board Cable	Breakaway Header	21	Copper Alloy	1	Black	-65 ░C	105 ░C	Gold	13.55 mm	0.533 in	15 µin	0.38 µm	Liquid Crystal Polymer (LCP)
TE Connectivity Raychem Cable Protection 9-146276-0-36	0.09 in	2.29 mm	Square	Push-Pull	Male Pin	0.1 in	2.54 mm	3 A	0.318 "	8.08 mm	Unshrouded	All	Solder	Through Hole	3.18 mm	0.125 in	Tin	UL94 V-0	2.54 µm	100 µin	Board to Board Cable	Breakaway Header	36	Copper Alloy	1	Black	-65 ░C	105 ░C	Gold	13.55 mm	0.533 in	15 µin	0.38 µm	Liquid Crystal Polymer (LCP)
