ELSH-E71 Series

Catalog

LED SHUEN BLUE 465NM SMD

Part	Color	Viewing Angle	Height - Seated (Max) [Max]	Height - Seated (Max)	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Current - Max [Max]	Package / Case	Lumens/Watt @ Current - Test	Thermal Resistance of Package	Mounting Type	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Wavelength	Temperature - Test

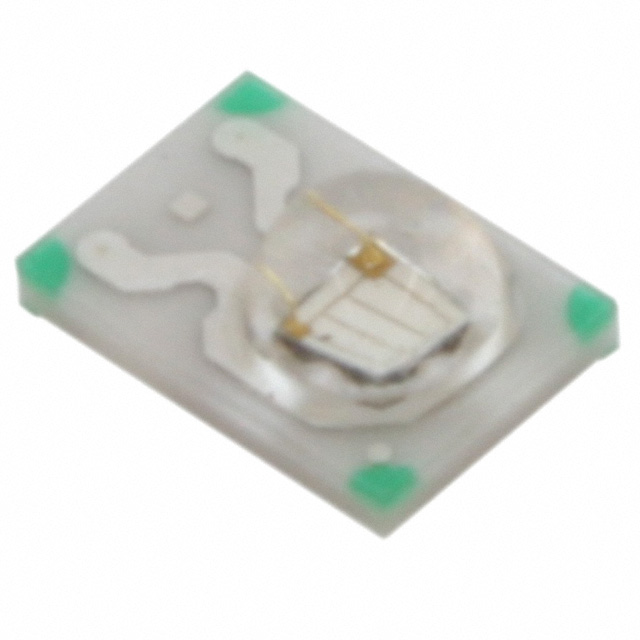

Everlight Electronics Co Ltd ELSH-E71B1-0CPNM-CB7B8	Blue	120 °	0.085 in	2.15 mm	SMD	3.25 V	19 lm	20 lm	17 lm	600 mA	1218 (3246 Metric)	15 lm/W	10 °C/W	Surface Mount	350 mA	0.12 inches	4.5 mm	3.05 mm	0.177 "	465 nm	25 °C

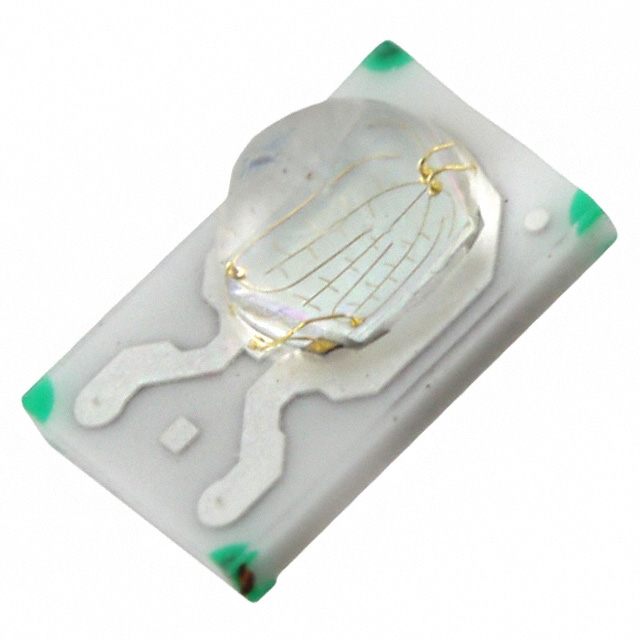

Everlight Electronics Co Ltd ELSH-E71B1-0LPNM-CB7B8	Blue	120 °	0.085 in	2.15 mm	SMD	3.25 V	19 lm	20 lm	17 lm	600 mA	1218 (3246 Metric)	15 lm/W	10 °C/W	Surface Mount	350 mA	0.12 inches	4.5 mm	3.05 mm	0.177 "	465 nm	25 °C
