ME101 Series

Catalog

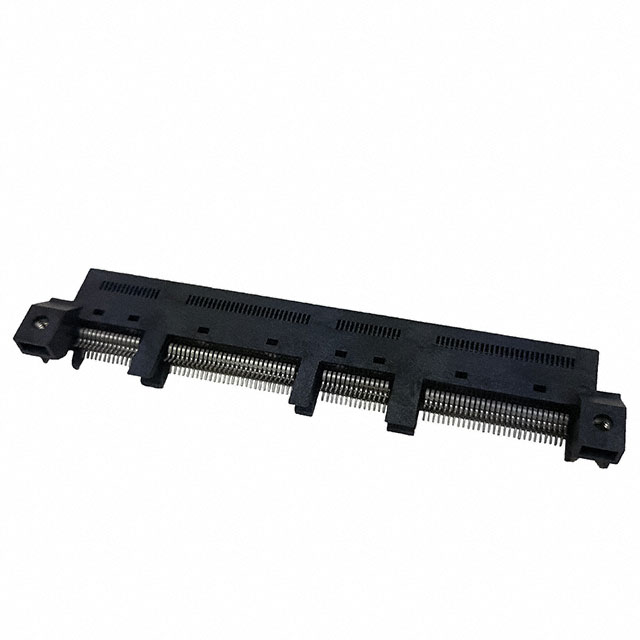

CONN EDGE DUAL FML 168POS 0.024

Part	Material - Insulation	Pitch	Pitch	Contact Material	Card Thickness	Card Thickness	Card Type	Number of Positions/Bay/Row	Number of Rows [custom]	Color	Read Out	Contact Type	Contact Finish	Number of Positions [custom]	Gender	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Finish Thickness	Contact Finish Thickness	Termination	Flange Feature [x]	Flange Feature	Flange Feature [x]	Number of Positions [custom]	Number of Positions/Bay/Row [custom]

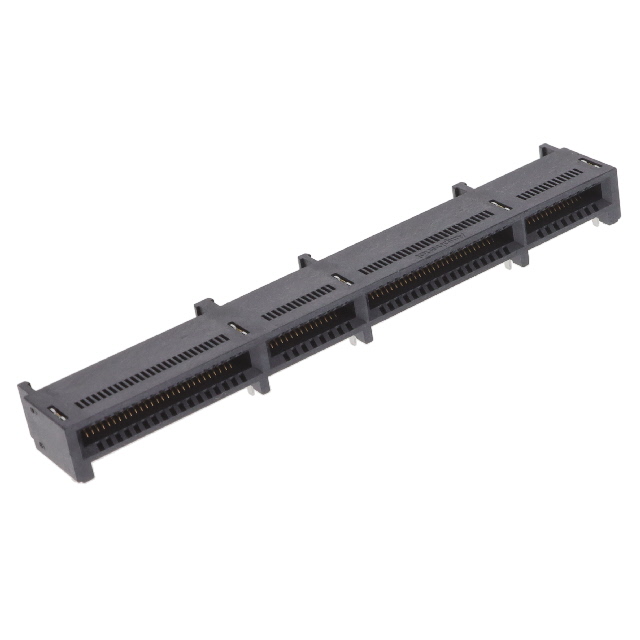

Amphenol ICC (FCI) ME1016810201031	Thermoplastic	0.6 mm	0.024 "	Copper Alloy	1.57 mm	0.062 in	Non Specified - Dual Edge	14 28	2	Black	Dual	Cantilever	Gold	168	Female	Right Angle Surface Mount	-55 C	105 ░C	Board Guide	30 Áin	0.76 Ám	Solder
Amphenol ICC (FCI) ME10168434A0601	Thermoplastic	0.6 mm	0.024 "	Copper Alloy	1.57 mm	0.062 in	Non Specified - Dual Edge	14 28	2	Black	Dual		Gold	168	Female	Board Edge Straddle Mount	-40 C	85 °C		30 Áin	0.76 Ám	Solder	0.087 "	Straddle Mount Opening Unthreaded	2.2 mm
Amphenol ICC (FCI) ME1016813401311	Thermoplastic	0.6 mm	0.024 "	Copper Alloy	1.57 mm	0.062 in	Non Specified - Dual Edge	14 28	2	Black	Dual	Cantilever	Gold	168	Female	Board Edge Straddle Mount	-55 C	105 ░C		30 Áin	0.76 Ám	Solder	0.087 "	Straddle Mount Opening Unthreaded	2.2 mm

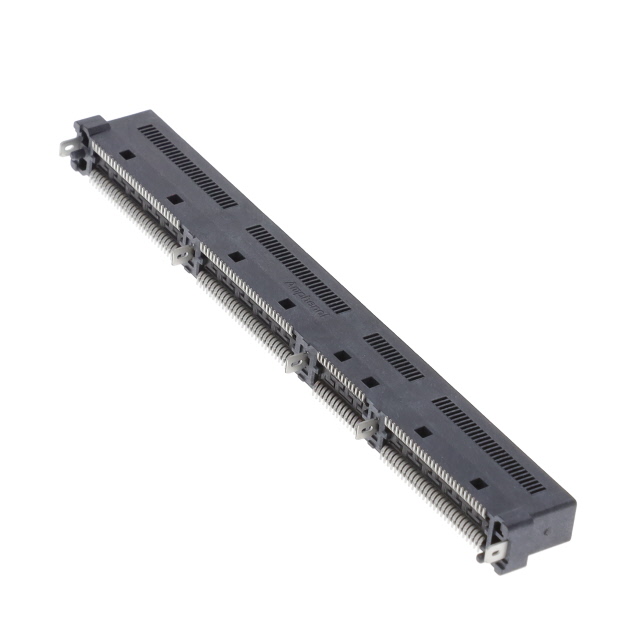

Amphenol ICC (FCI) ME1019610101011	Thermoplastic	0.6 mm	0.024 "	Copper Alloy	1.57 mm	0.062 in	Non Specified - Dual Edge		2	Black	Dual		Gold		Female	Surface Mount	-55 C	105 ░C		30 Áin	0.76 Ám	Solder				196	14 28

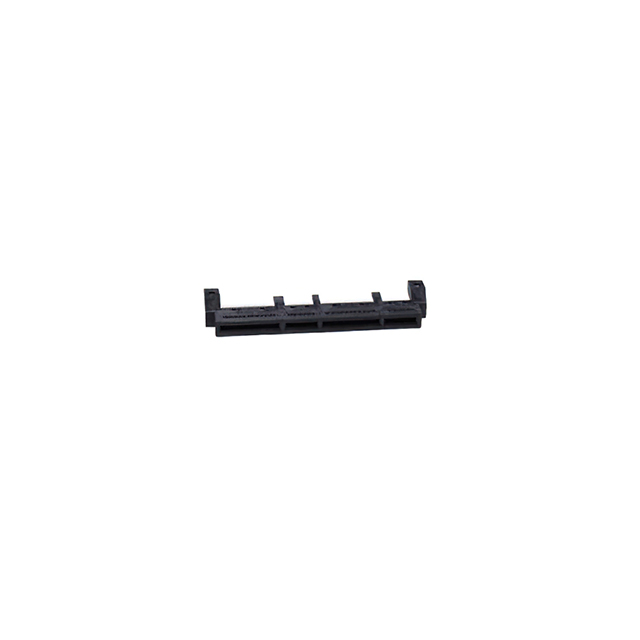

Amphenol ICC (FCI) ME1016813401411	Thermoplastic	0.6 mm	0.024 "	Copper Alloy	1.57 mm	0.062 in	Non Specified - Dual Edge	14 28	2	Black	Dual		Gold	168	Female	Board Edge Straddle Mount	-40 C	85 °C		30 Áin	0.76 Ám	Solder	0.087 "	Straddle Mount Opening Unthreaded	2.2 mm

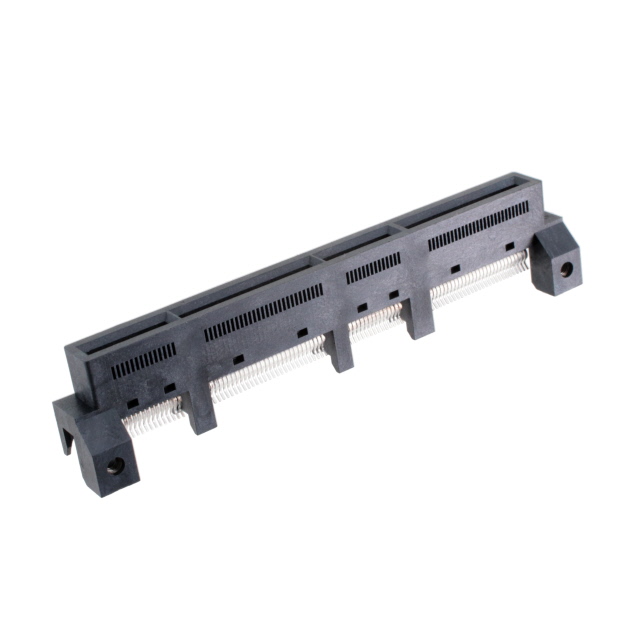

Amphenol ICC (FCI) ME1016843433701	Thermoplastic	0.6 mm	0.024 "	Copper Alloy	1.57 mm	0.062 in	Non Specified - Dual Edge	14 28	2	Black	Dual		Gold	168	Female	Board Edge Straddle Mount	-40 C	85 °C		30 Áin	0.76 Ám	Solder	0.087 "	Straddle Mount Opening Unthreaded	2.2 mm

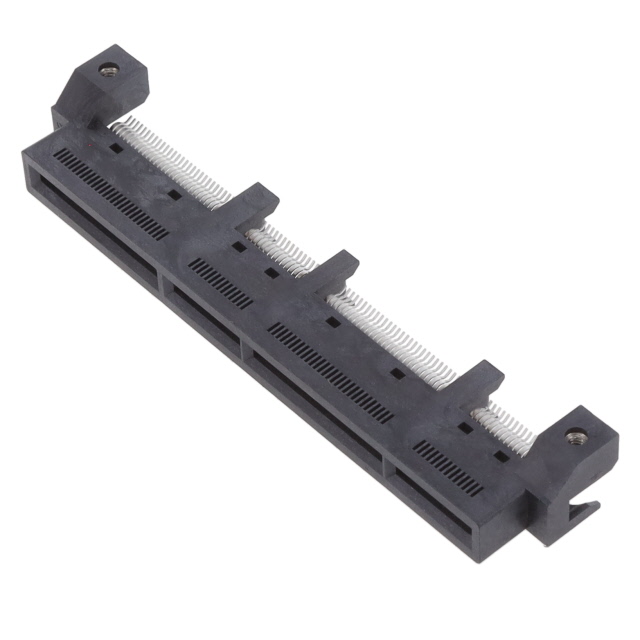

Amphenol ICC (FCI) ME10168334B2A01	Thermoplastic	0.6 mm	0.024 "	Copper Alloy	1.57 mm	0.062 in	Non Specified - Dual Edge	14 28	2	Black	Dual		Gold	168	Female	Board Edge Straddle Mount	-40 C	85 °C		30 Áin	0.76 Ám	Solder	0.087 "	Straddle Mount Opening Unthreaded	2.2 mm
