C1CXG-1 Series

Catalog

IDC CABLE - CKC16G/AE16G/X

Part	Cable Termination	Connector Type	Number of Positions	Shielding	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Features	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Length	Length	Color
CW Industries C1CXG-1636G	IDC	Socket to Cable	16	Unshielded	Gold	0.25 Ám	10 Áin	2	Polarizing Key	0.1 in	2.54 mm	0.05 in	1.27 mm	91.44 cm	3 ft
CW Industries C1CXG-1436G	IDC	Socket to Cable	14	Unshielded	Gold	0.25 Ám	10 Áin	2	Polarizing Key	0.1 in	2.54 mm	0.05 in	1.27 mm	91.44 cm	3 ft
CW Industries C1CXG-1636M	IDC	Socket to Cable	16	Unshielded	Gold	0.25 Ám	10 Áin	2	Polarizing Key	0.1 in	2.54 mm	0.05 in	1.27 mm	91.44 cm	3 ft	Multiple Ribbon
CW Industries C1CXG-1036G	IDC	Socket to Cable	10	Unshielded	Gold	0.25 Ám	10 Áin	2	Polarizing Key	0.1 in	2.54 mm	0.05 in	1.27 mm	91.44 cm	3 ft

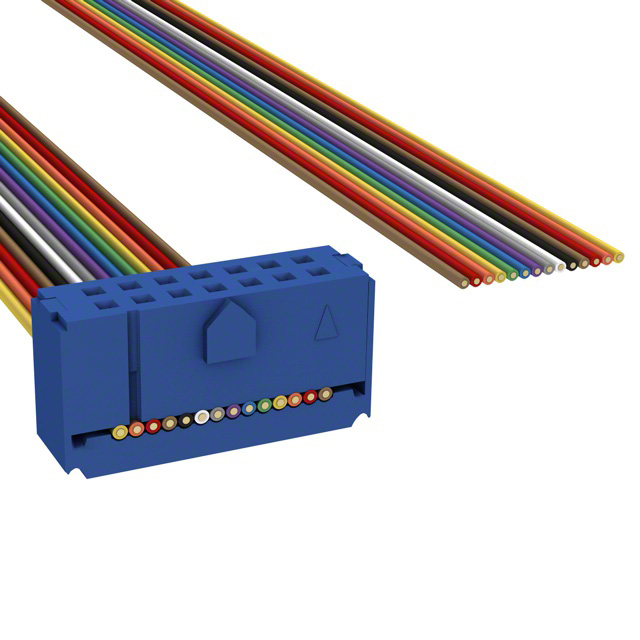

CW Industries C1CXG-1436M	IDC	Socket to Cable	14	Unshielded	Gold	0.25 Ám	10 Áin	2	Polarizing Key	0.1 in	2.54 mm	0.05 in	1.27 mm	91.44 cm	3 ft	Multiple Ribbon

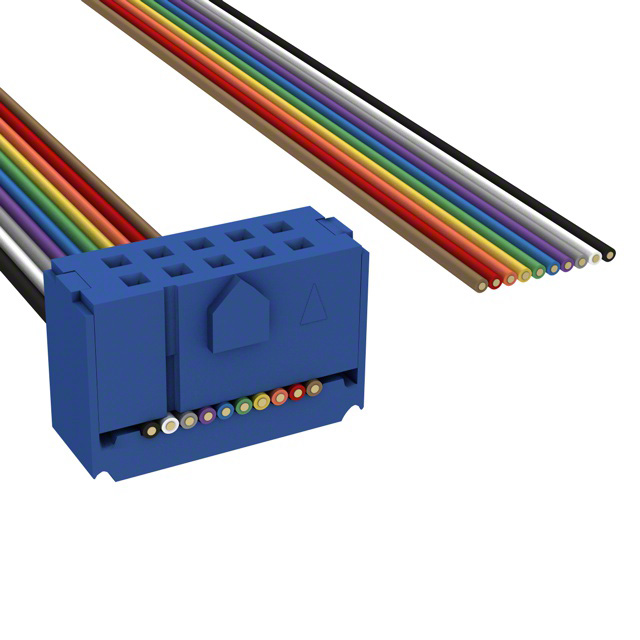

CW Industries C1CXG-1036M	IDC	Socket to Cable	10	Unshielded	Gold	0.25 Ám	10 Áin	2	Polarizing Key	0.1 in	2.54 mm	0.05 in	1.27 mm	91.44 cm	3 ft	Multiple Ribbon
