HFW5R Series

Catalog

CONN FFC FPC BOTTOM 5POS 1MM R/A

Part	Mating Cycles	Housing Color	Cable End Type	Mounting Type	Voltage Rating	Flat Flex Type	Contact Finish	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Height Above Board [z]	Height Above Board [z]	Number of Positions	Contact Material	FFC, FCB Thickness	Material Flammability Rating	Termination	Connector/Contact Type	Features	Current Rating (Amps)
Amphenol ICC (FCI) HFW5R-1STZE1LF	30	Black	Straight or Tapered	Right Angle Surface Mount	100 V	FFC FPC	Tin	1 mm	0.039 in	-55 C	105 ░C	Nylon 6T Polyamide (PA6T)	1.9 mm	0.075 in	5	Phosphor Bronze	0.3 mm	UL94 V-0	Solder	Contacts Bottom
Amphenol ICC (FCI) HFW5R-2STAE1H1LF	30	Black	Tapered	Right Angle Surface Mount	100 V	FPC	Gold	1 mm	0.039 in	-55 C	105 ░C	Liquid Crystal Polymer (LCP) Halogen Free	1.9 mm	0.075 in	5	Phosphor Bronze	0.3 mm	UL94 V-0	Solder	Contacts Top	Solder Retention

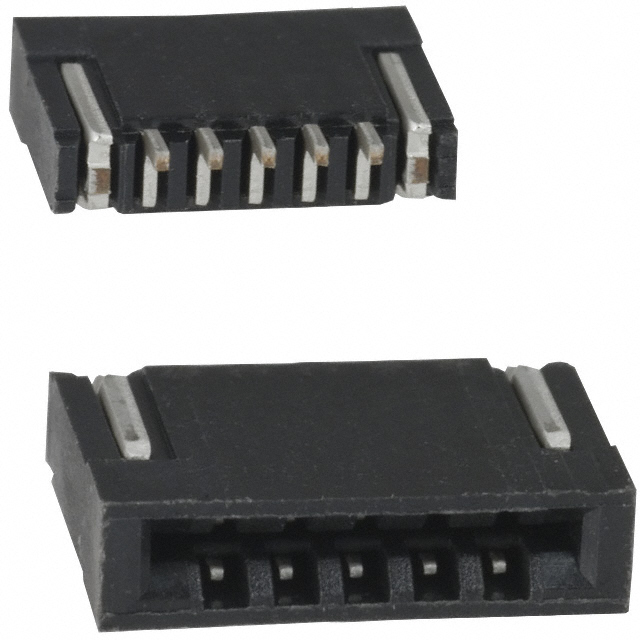

Amphenol ICC (FCI) HFW5R-2STE1LF	30	Black	Straight or Tapered	Right Angle Surface Mount	100 V	FFC FPC	Tin	1 mm	0.039 in	-55 C	105 ░C	Glass Filled Nylon 6T Polyamide (PA6T)	1.9 mm	0.075 in	5	Phosphor Bronze	0.3 mm	UL94 V-0	Solder	Contacts Top
Amphenol ICC (FCI) HFW5R-1STE1MTLF	30	Black	Straight or Tapered	Right Angle Surface Mount	50 V	FFC FPC	Tin	1 mm	0.039 in	-55 C	105 ░C	Glass Filled Thermoplastic	3.1 mm	0.122 in	5	Phosphor Bronze	0.3 mm	UL94 V-0	Solder	Contacts Bottom	Solder Retention	0.5 A
Amphenol ICC (FCI) HFW5R-2STZE1LF	30	Black	Straight or Tapered	Right Angle Surface Mount	100 V	FFC FPC	Tin	1 mm	0.039 in	-55 C	105 ░C	Glass Filled Nylon 6T Polyamide (PA6T)	1.9 mm	0.075 in	5	Phosphor Bronze	0.3 mm	UL94 V-0	Solder	Contacts Top
Amphenol ICC (FCI) HFW5R-2STE1MTLF	30	Black	Straight or Tapered	Right Angle Surface Mount	50 V	FFC FPC	Tin	1 mm	0.039 in	-55 C	105 ░C	Glass Filled Thermoplastic	3.1 mm	0.122 in	5	Phosphor Bronze	0.3 mm	UL94 V-0	Solder	Contacts Top	Solder Retention	0.5 A

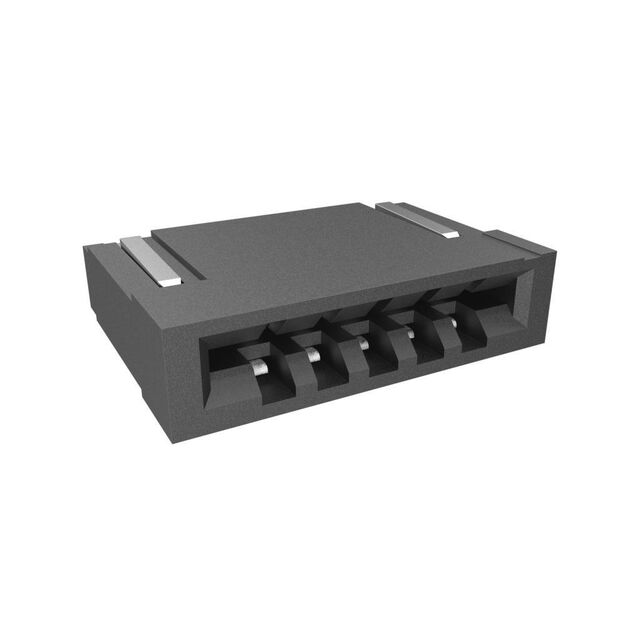

Amphenol ICC (FCI) HFW5R-2STE1H1LF	30	Black	Straight or Tapered	Right Angle Surface Mount	100 V	FFC FPC	Tin	1 mm	0.039 in	-55 C	105 ░C	Liquid Crystal Polymer (LCP) Halogen Free	1.9 mm	0.075 in	5	Phosphor Bronze	0.3 mm	UL94 V-0	Solder	Contacts Top
Amphenol ICC (FCI) HFW5R-2STZE1H1LF	30	Black	Straight or Tapered	Right Angle Surface Mount	100 V	FFC FPC	Tin	1 mm	0.039 in	-55 C	105 ░C	Liquid Crystal Polymer (LCP) Halogen Free	1.9 mm	0.075 in	5	Phosphor Bronze	0.3 mm	UL94 V-0	Solder	Contacts Top
Amphenol ICC (FCI) HFW5R-2STE1HLF	30	Black	Straight or Tapered	Right Angle Surface Mount	100 V	FFC FPC	Tin	1 mm	0.039 in	-55 C	105 ░C	Glass Filled Halogen Free Nylon 6T Polyamide (PA6T)	1.9 mm	0.075 in	5	Phosphor Bronze	0.3 mm	UL94 V-0	Solder	Contacts Top
