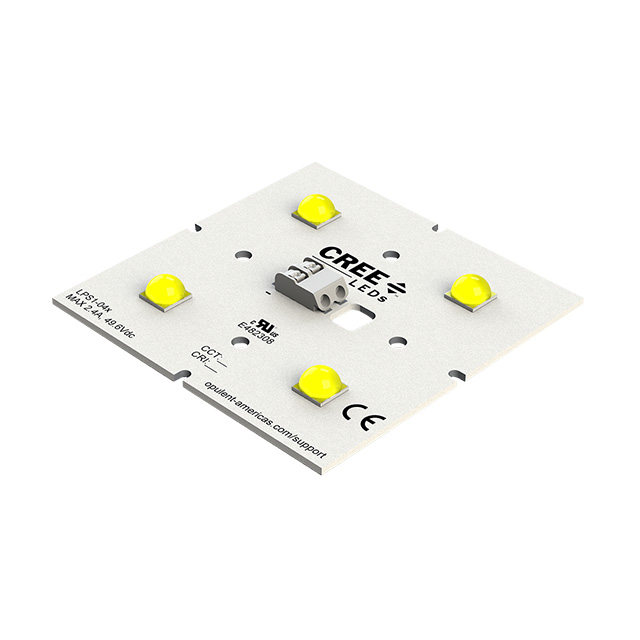

LPS1-04 Series

Catalog

LED MOD XHP70.2 WM WHT SQ 3000K

Part	Lens Type	Type	Size / Dimension [y]	Size / Dimension [x]	Color	Voltage - Forward (Vf) (Typ)	CCT (K)	CCT (K)	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Configuration	Current - Test	CRI (Color Rendering Index)	Temperature - Test	Current - Max [Max]
New Energy LPS1-04C24-3080-00	Domed	LED Module	70 mm	70 mm	Warm White	44.8 V	3000 K	5-Step MacAdam Ellipse	6840 lm	145 lm/W	Square	1.05 A	80	85 °C	2.4 A
New Energy LPS1-04C24-3070-00	Domed	LED Module	70 mm	70 mm	Warm White	44.8 V	3000 K	5-Step MacAdam Ellipse	6840 lm	145 lm/W	Square	1.05 A	70	85 °C	2.4 A
New Energy LPS1-04C24-5080-00	Domed	LED Module	70 mm	70 mm	Cool White	44.8 V	5000 K	5-Step MacAdam Ellipse	7320 lm	156 lm/W	Square	1.05 A	80	85 °C	2.4 A
New Energy LPS1-04C24-4080-00	Domed	LED Module	70 mm	70 mm	Neutral White	44.8 V	4000 K		7320 lm	156 lm/W	Square	1.05 A	80	85 °C	2.4 A
New Energy LPS1-04C24-2780-00	Domed	LED Module	70 mm	70 mm	Warm White	44.8 V	2700 K	3-Step MacAdam Ellipse	5940 lm	126 lm/W	Square	1.05 A	80	85 °C	2.4 A
New Energy LPS1-04C24-2790-00	Domed	LED Module	70 mm	70 mm	Warm White	44.8 V	2700 K	3-Step MacAdam Ellipse	5940 lm	126 lm/W	Square	1.05 A	90	85 °C	2.4 A
New Energy LPS1-04C24-5770-00	Domed	LED Module	70 mm	70 mm	Cool White	44.8 V	5700 K		7320 lm	156 lm/W	Square	1.05 A	70	85 °C	2.4 A
