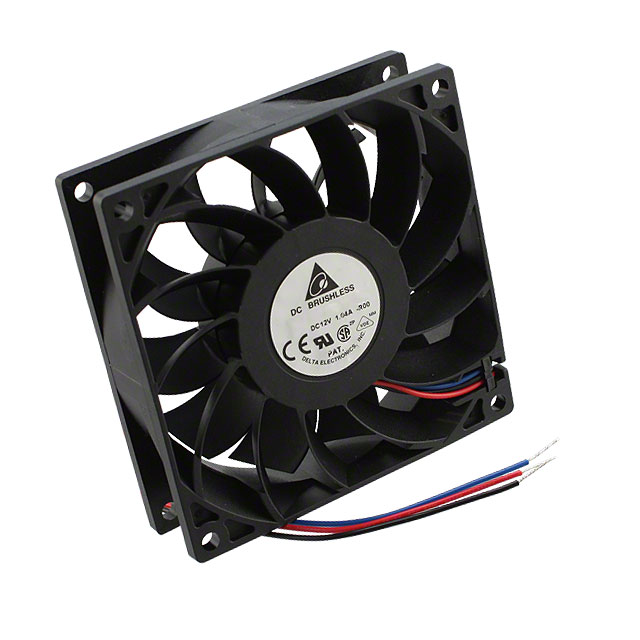

FFB Series

Catalog

DC FANS TUBEAXIAL FAN, 80X38MM, 12VDC, BALL BEARING, 3-LEAD WIRES, LOCKED ROTOR SENSOR

Part	Lifetime @ Temp.	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Current Rating (Amps)	Size / Dimension [z]	Size / Dimension [x]	Noise	Voltage - Rated	Fan Type	Features	Width [y]	Bearing Type	Static Pressure	Static Pressure	Approval Agency	Power (Watts)	Weight [custom]	Weight [custom]	Termination	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Air Flow	Air Flow	Weight	Weight	Size / Dimension [y]	Width [x]
Delta Electronics FFB0812EHE-R00	70000 Hrs	Plastic	13.8 VDC	7 V	Plastic	900 mA	80 mm	80 mm	52.5 dB(A)	12 VDC	Tubeaxial	Locked Rotor Sensor	38 mm	Ball	0.812 in H2O	202.3 Pa	CE CSA UL VDE	10.8 W	0.375 lb	170.1 g	3 Wire Leads	70 °C	-10 °C	5700 RPM	80.2 CFM	2.25 mł/min
Delta Electronics FFB1424UHE-M	80000 Hrs	Plastic	26.4 VDC	14 VDC	Aluminum	3.35 A			74 dB(A)	24 VDC	Tubeaxial		38 mm	Ball	1.644 in H2O	409.5 Pa	CE CSA UL VDE	80.4 W			2 Wire Leads	70 °C	-10 °C	5500 RPM	367.6 CFM	10.29 m³/min	1.4 lbs	650 g
Delta Electronics FFB1248SH							120 mm	120 mm	54.3 dB(A)	48 VDC	Tubeaxial		25.4 mm	Ball	0.419 in H2O	104.4 Pa	CE CSA UL VDE	12 W			2 Wire Leads	60 °C	-10 °C	3700 RPM	140 CFM	3.92 mł/min	0.452 lb	205.02 g
Delta Electronics FFB0912HHE	70000 Hrs	Plastic	13.8 VDC	7 V	Plastic	0.35 A		92 mm	42.5 dB	12 VDC	Tubeaxial		38 mm	Ball	0.298 in H2O	74.2 Pa	CE CSA UL VDE	4.2 W			2 Wire Leads	70 °C	-10 °C	3200 RPM	71.7 CFM	2.01 m³/min	0.437 lb	198 g	92 mm
Delta Electronics FFB0812VH-F00	70000 Hrs	Plastic	13.2 VDC	7 V	Plastic	0.34 A	80 mm	80 mm	45.4 dB(A)	12 VDC	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	25.4 mm	Ball	0.291 in H2O	72.5 Pa	CE CSA UL VDE		0.254 lb	115.21 g	3 Wire Leads	60 °C	-10 °C	4000 RPM	54.6 CFM	1.53 mł/min
Delta Electronics FFB0848SHE-TP36	70000 Hrs	Plastic	56 VDC	28 V	Plastic		80 mm	80 mm	48.5 dB(A)	48 VDC	Tubeaxial	Locked Rotor Protection PWM Control Speed Sensor (Tach)	38 mm	Ball	0.591 in H2O	147.2 Pa	CE CSA UL VDE	7.68 W	0.375 lb	170.1 g	4 Wire Leads	60 °C	-10 °C	4900 RPM	68.5 CFM	1.92 m³/min
Delta Electronics FFB1224EHE-R00	70000 Hrs	Plastic	26.4 VDC	14 VDC	Plastic	1 A	120 mm	120 mm	59 dB(A)	24 VDC	Tubeaxial	Locked Rotor Sensor	38 mm	Ball	0.7 in H2O	174.4 Pa	CE CSA UL VDE	24 W			3 Wire Leads	50 °C	-10 °C	4000 RPM	190 CFM	5.32 m³/min	0.816 lb	370.13 g
Delta Electronics FFB1248XHE-M	70000 Hrs	Plastic	54 VDC	28 V	Aluminum	1.65 A	120 mm	120 mm	73.5 dB(A)	48 VDC	Tubeaxial		38 mm	Ball	1.705 in H2O	424.7 Pa	CE CSA UL VDE	79.2 W			2 Wire Leads	70 °C	-10 °C	6300 RPM	264.6 CFM	7.41 m³/min	1.1 lbs	499 g
Delta Electronics FFB0424HN-R00	70000 Hrs	Plastic	27.6 VDC	14	Plastic	60 mA	40 mm	40 mm	36 dB	24 VDC	Tubeaxial	Locked Rotor Sensor		Ball	0.248 in H2O	61.8 Pa	CE CSA UL VDE	1.44 W	0.071 lb	32.21 g	3 Wire Leads	70 °C	-10 °C	6500 RPM	10.6 CFM	0.297 m³/min				28 mm
Delta Electronics FFB1424UHE-MF00	80000 Hrs	Plastic	26.4 VDC	14 VDC	Aluminum	3.35 A			74 dB(A)	24 VDC	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	38 mm	Ball	1.644 in H2O	409.5 Pa	CE CSA UL VDE	80.4 W			3 Wire Leads	70 °C	-10 °C	5500 RPM	367.6 CFM	10.29 m³/min	1.4 lbs	650 g
