CD214B Series

Catalog

DIODE GEN PURP 50V 2A SMB

...

Part	Supplier Device Package	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Current - Average Rectified (Io)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Capacitance @ Vr, F	Current - Reverse Leakage @ Vr	Mounting Type	Voltage - Forward (Vf) (Max) @ If [Max]	Speed [Min]	Power - Peak Pulse	Operating Temperature [Max]	Operating Temperature [Min]	Current - Peak Pulse (10/1000µs)	Voltage - Reverse Standoff (Typ)	Applications	Unidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Breakdown (Min) [Min]	Type	Voltage - Forward (Vf) (Max) @ If	Bidirectional Channels [custom]

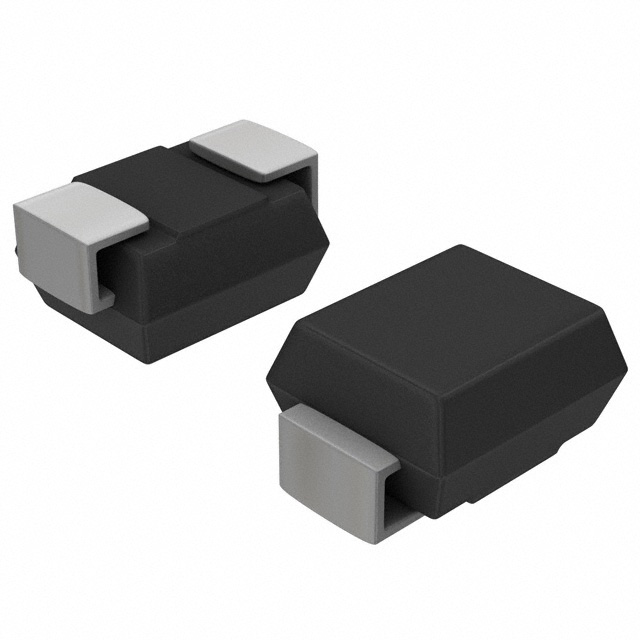

Bourns Inc. CD214B-R250	DO-214AA (SMB)	DO-214AA SMB	50 V	Standard	2 A	175 ░C	-65 C	200 mA 500 ns	25 pF	5 µA	Surface Mount	1 V
Bourns Inc. CD214B-R2600	DO-214AA (SMB)	DO-214AA SMB	600 V	Standard	2 A	170 °C	-65 C		25 pF	5 µA	Surface Mount	1 V	200 mA 500 ns
Bourns Inc. CD214B-T110ALF	DO-214AA (SMB)	DO-214AA SMB									Surface Mount			600 W	150 °C	-55 °C	3.4 A	110 V	General Purpose	1	177 V	122 V	Zener
Bourns Inc. CD214B-T17ALF	DO-214AA (SMB)	DO-214AA SMB									Surface Mount			600 W	150 °C	-55 °C	21.7 A	17 V	General Purpose	1	27.6 V	18.9 V	Zener

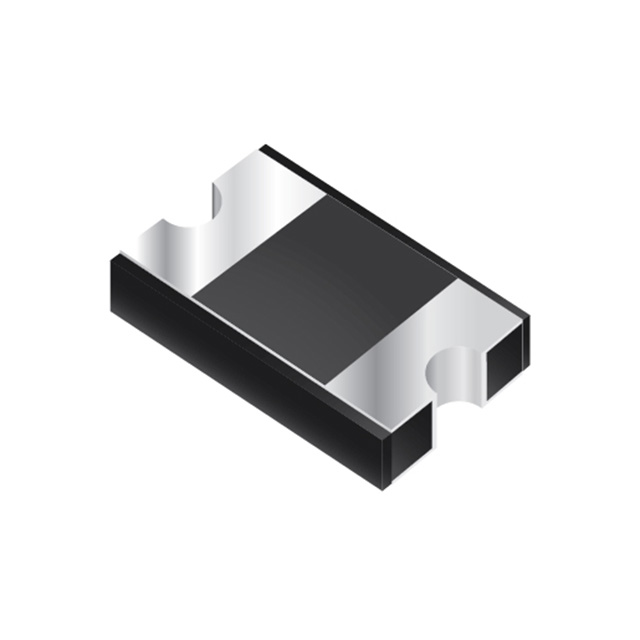

Bourns Inc. CD214B-S3K	2-SMD	2-SMD No Lead	800 V	Standard	3 A	175 ░C	-65 C		23 pF	5 µA	Surface Mount	1 V	200 mA 500 ns
Bourns Inc. CD214B-B240R	2-SMD	2-SMD No Lead	40 V	Schottky	2 A	125 °C	-55 °C	200 mA 500 ns	115 pF	200 µA	Surface Mount													500 mV
Bourns Inc. CD214B-T22ALF	DO-214AA (SMB)	DO-214AA SMB									Surface Mount			600 W	150 °C	-55 °C	16.9 A	22 V	General Purpose	1	35.5 V	24.4 V	Zener
Bourns Inc. CD214B-T24CALF	DO-214AA (SMB)	DO-214AA SMB									Surface Mount			600 W	150 °C	-55 °C	15.4 A	24 V	General Purpose		38.9 V	26.7 V	Zener		1
Bourns Inc. CD214B-B330LF	DO-214AA (SMB)	DO-214AA SMB	30 V	Schottky	3 A	125 °C	-55 °C	200 mA 500 ns	250 pF	500 µA	Surface Mount													500 mV
Bourns Inc. CD214B-R2100	DO-214AA (SMB)	DO-214AA SMB	100 V	Standard	2 A	175 ░C	-65 C		25 pF	5 µA	Surface Mount	1 V	200 mA 500 ns
