D38999/24MG Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN RCPT HSG FMALE 39POS PNL MT

Part	Qualification	Shell Finish	Contact Shape	Fastening Type	Contact Size	Contact Size	Grade	Shell Material	Contact Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Ingress Protection	Shell Size, MIL	Mounting Feature	Shielding	Note	Orientation	Insert Material	Housing Color	Mounting Type	Connector Type	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Type	Applications	Voltage Rating	Voltage Rating	Contact Material	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Termination	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Shell Size - Insert
TE Connectivity AMP Connectors D38999/24MG39BA	MIL-DTL-38999 Series III	Electroless Nickel	Circular	Threaded	2 37	16 20	Military	Composite	Crimp	39	21	Environment Resistant	G	Bulkhead - Front Side Nut	Shielded	Contacts Not Included	A	Plastic	Silver	Panel Mount	Receptacle Housing	Composite	-65 ░C	200 °C	39	For Female Sockets
TE Connectivity AMP Connectors D38999/24MG39SD	MIL-DTL-38999 Series III	Electroless Nickel		Threaded			Military	Composite		39	21	Environment Resistant	G	Bulkhead - Front Side Nut	Shielded		D	Thermoplastic		Panel Mount	Receptacle Female Sockets	Composite	-65 ░C	200 °C	39		Aerospace Military	600 VAC	850 VDC	Copper Alloy	Gold	50 µin	1.27 µm	Silver	Crimp
TE Connectivity AMP Connectors D38999/24MG35HB	MIL-DTL-38999 Series III	Electroless Nickel		Threaded			Military	Composite				Environment Resistant	G	Bulkhead - Front Side Nut	Shielded		B	Thermoplastic		Panel Mount	Receptacle Male Pins	Composite	-65 ░C	200 °C	79		Aerospace Military	400 VAC 550 VDC		Copper Alloy	Gold	50 µin	1.27 µm	Silver	Crimp	21	35
TE Connectivity AMP Connectors D38999/24MG35HN	MIL-DTL-38999 Series III	Electroless Nickel		Threaded			Military	Composite				Environment Resistant	G	Bulkhead - Front Side Nut	Shielded		N (Normal)	Thermoplastic		Panel Mount	Receptacle Male Pins	Composite	-65 ░C	200 °C	79		Aerospace Military	400 VAC 550 VDC		Copper Alloy	Gold	50 µin	1.27 µm	Silver	Crimp	21	35
TE Connectivity AMP Connectors D38999/24MG41PN	MIL-DTL-38999 Series III	Electroless Nickel		Threaded			Military	Composite		41	21	Environment Resistant	G	Bulkhead - Front Side Nut	Shielded		N (Normal)	Thermoplastic		Panel Mount	Receptacle Male Pins	Composite	-65 ░C	200 °C	41		Aerospace Military	600 VAC	850 VDC	Copper Alloy	Gold	50 µin	1.27 µm	Silver	Crimp
TE Connectivity AMP Connectors D38999/24MG11SN	MIL-DTL-38999 Series III	Electroless Nickel		Threaded			Military	Composite				Environment Resistant	G	Bulkhead - Front Side Nut	Shielded		N (Normal)	Thermoplastic		Panel Mount	Receptacle Female Sockets	Composite	-65 ░C	200 °C	11		Aerospace Military	600 VAC	850 VDC	Copper Alloy	Gold	50 µin	1.27 µm	Silver	Crimp			21-11
TE Connectivity AMP Connectors D38999/24MG16SA	MIL-DTL-38999 Series III	Electroless Nickel		Threaded			Military	Composite				Environment Resistant	G	Bulkhead - Front Side Nut	Shielded		A	Thermoplastic		Panel Mount	Receptacle Female Sockets	Composite	-65 ░C	200 °C	16		Aerospace Military	750 Vrms 1050 VDC		Copper Alloy	Gold	50 µin	1.27 µm	Silver	Crimp			21-16
TE Connectivity AMP Connectors D38999/24MG16PN	MIL-DTL-38999 Series III	Electroless Nickel		Threaded			Military	Composite				Environment Resistant	G	Bulkhead - Front Side Nut	Shielded		N (Normal)	Thermoplastic		Panel Mount	Receptacle Male Pins	Composite	-65 ░C	200 °C	16		Aerospace Military	750 Vrms 1050 VDC		Copper Alloy	Gold	50 µin	1.27 µm	Silver	Crimp			21-16

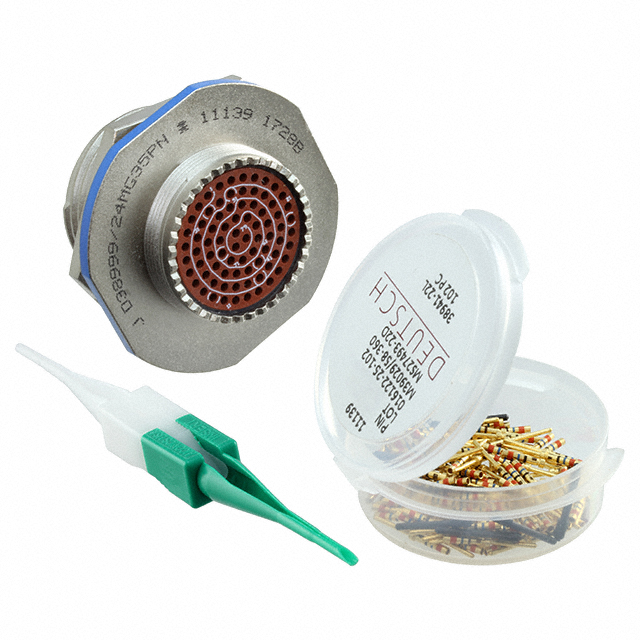

TE Connectivity AMP Connectors D38999/24MG35PN	MIL-DTL-38999 Series III	Electroless Nickel		Threaded			Military	Composite				Environment Resistant	G	Bulkhead - Front Side Nut			N (Normal)	Thermoplastic		Panel Mount	Receptacle Male Pins	Composite	-65 ░C	200 °C	79		Aerospace Military	400 VAC 550 VDC		Copper Alloy	Gold	50 µin	1.27 µm		Crimp	21	35
TE Connectivity AMP Connectors D38999/24MG39SC	MIL-DTL-38999 Series III	Electroless Nickel		Threaded			Military	Composite		39	21	Environment Resistant	G	Bulkhead - Front Side Nut	Shielded		C	Thermoplastic		Panel Mount	Receptacle Female Sockets	Composite	-65 ░C	200 °C	39		Aerospace Military	600 VAC	850 VDC	Copper Alloy	Gold	50 µin	1.27 µm	Silver	Crimp
