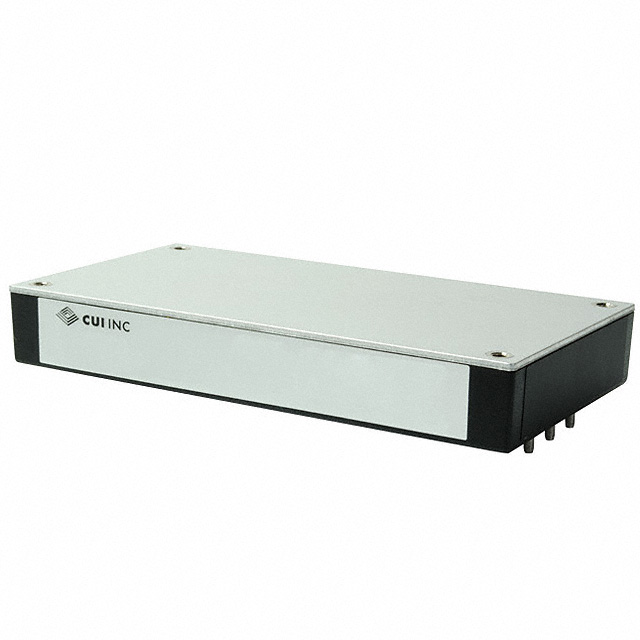

VBM-100 Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 24V 100W

Part	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Efficiency	Approval Agency	Current - Output (Max) [Max]	Load Regulation	Standard Number	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Line Regulation	Weight	Weight	Power (Watts)	Features	Mounting Type	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Type	Voltage - Output 1 [custom]
CUI Inc. VBM-100-24	5-DIP Module	85 °C	-20 °C	1	91 %	CB Scheme EN FCC IEC UL	4.2 A	±1%	55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61204-3	24 V	4.6 "	61 mm	0.67 in	2.4 in	116.8 mm	17 mm	0.5 %	226.8 g	0.5 lb	100 W	Baseplate PFC Universal Input	Through Hole	ITE (Commercial)	264 VAC	90 VAC	Enclosed
CUI Inc. VBM-100-12	5-DIP Module	85 °C	-20 °C	1	90 %	CB Scheme EN FCC IEC UL	8.4 A	±1%	55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61204-3	12 V	4.6 "	61 mm	0.67 in	2.4 in	116.8 mm	17 mm	0.5 %	226.8 g	0.5 lb	100 W	Baseplate PFC Universal Input	Through Hole	ITE (Commercial)	264 VAC	90 VAC	Enclosed
CUI Inc. VBM-100-28	5-DIP Module	85 °C	-20 °C	1	91 %	CB Scheme EN FCC IEC UL	3.6 A	±1%	55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61204-3	28 V	4.6 "	61 mm	0.67 in	2.4 in	116.8 mm	17 mm	0.5 %	226.8 g	0.5 lb	100 W	Baseplate PFC Universal Input	Through Hole	ITE (Commercial)	264 VAC	90 VAC	Enclosed
CUI Inc. VBM-100-48	5-DIP Module	85 °C	-20 °C	1	92 %	CB Scheme EN FCC IEC UL	2.1 A	±1%	55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61204-3	48 V	4.6 "	61 mm	0.67 in	2.4 in	116.8 mm	17 mm	0.5 %	226.8 g	0.5 lb	100 W	Baseplate PFC Universal Input	Through Hole	ITE (Commercial)	264 VAC	90 VAC	Enclosed
CUI Inc. VBM-100-36	5-DIP Module	85 °C	-20 °C	1	91 %	CB Scheme EN FCC IEC UL	2.8 A	±1%	55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61204-3		4.6 "	61 mm	0.67 in	2.4 in	116.8 mm	17 mm	0.5 %	226.8 g	0.5 lb	100 W	Baseplate PFC Universal Input	Through Hole	ITE (Commercial)	264 VAC	90 VAC	Enclosed	36 V
