M2018TZ Series

Catalog

SWITCH ROCKER SPDT 0.4VA 28V

Part	Electrical Life	Mechanical Life	Voltage Rating - DC	Termination Style	Actuator Type	Mounting Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Actuator Marking	Current Rating (Amps)	Voltage Rating - AC	Switch Function	Features	Color - Actuator/Cap

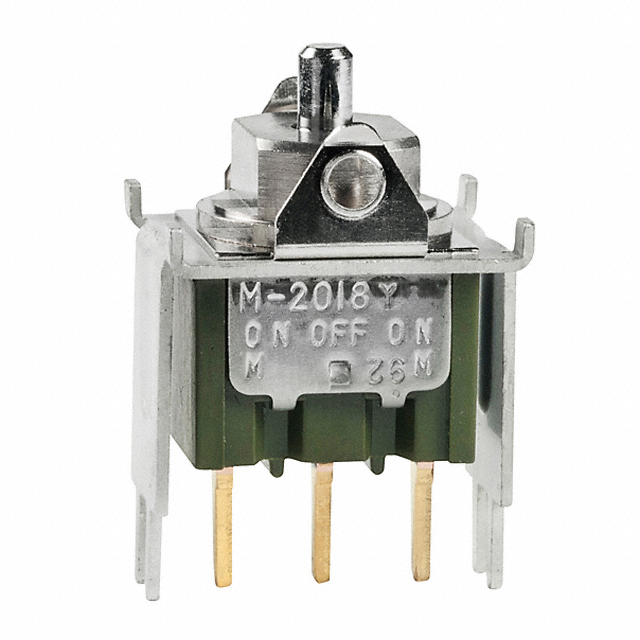

NKK Switches M2018TZG13	50000 Cycles	50000 Cycles	28 V	PC Pin	Actuator Arm Cap Required	Through Hole	SPDT	85 °C	-30 ░C	CSA UL	Varies by Cap	0.4 VA	28 V	Mom-Off-Mom	Epoxy Sealed Terminals
NKK Switches M2018TZW13-JE	25000 Steps	50000 Cycles	30 V	PC Pin	Concave	Through Hole	SPDT	85 °C	-30 ░C	CSA UL	No Marking	3 A 6 A	125 V	Mom-Off-Mom	Epoxy Sealed Terminals	Yellow
NKK Switches M2018TZW13	25000 Steps	50000 Cycles	30 V	PC Pin	Actuator Arm Cap Required	Through Hole	SPDT	85 °C	-30 ░C	CSA UL	Varies by Cap	3 A 6 A	125 V	Mom-Off-Mom	Epoxy Sealed Terminals
NKK Switches M2018TZW13-JB	25000 Steps	50000 Cycles	30 V	PC Pin	Concave	Through Hole	SPDT	85 °C	-30 ░C	CSA UL	No Marking	3 A 6 A	125 V	Mom-Off-Mom	Epoxy Sealed Terminals	White

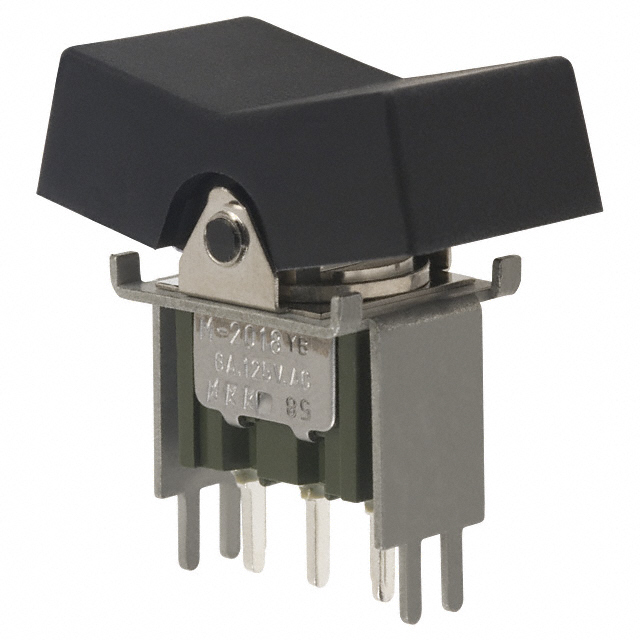

NKK Switches M2018TZW13-JA	25000 Steps	50000 Cycles	30 V	PC Pin	Concave	Through Hole	SPDT	85 °C	-30 ░C	CSA UL	No Marking	3 A 6 A	125 V	Mom-Off-Mom	Epoxy Sealed Terminals	Black
NKK Switches M2018TZG13-JA	50000 Cycles	50000 Cycles	28 V	PC Pin	Concave	Through Hole	SPDT	85 °C	-30 ░C	CSA UL	No Marking	0.4 VA	28 V	Mom-Off-Mom	Epoxy Sealed Terminals	Black

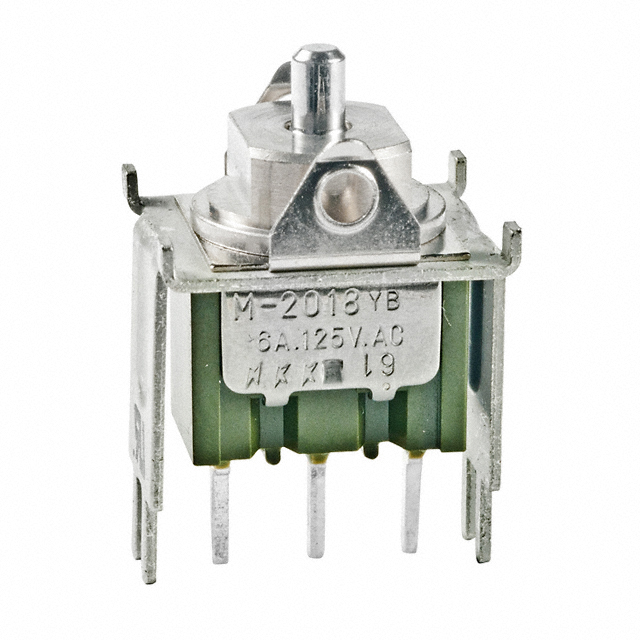

NKK Switches M2018TZW13/U	25000 Steps	50000 Cycles		PC Pin	Actuator Arm Cap Required	Through Hole	SPDT	85 °C	-30 ░C	CSA UL	Varies by Cap	6 A	125 V	Mom-Off-Mom	Epoxy Sealed Terminals
