A-32-24H Series

Catalog

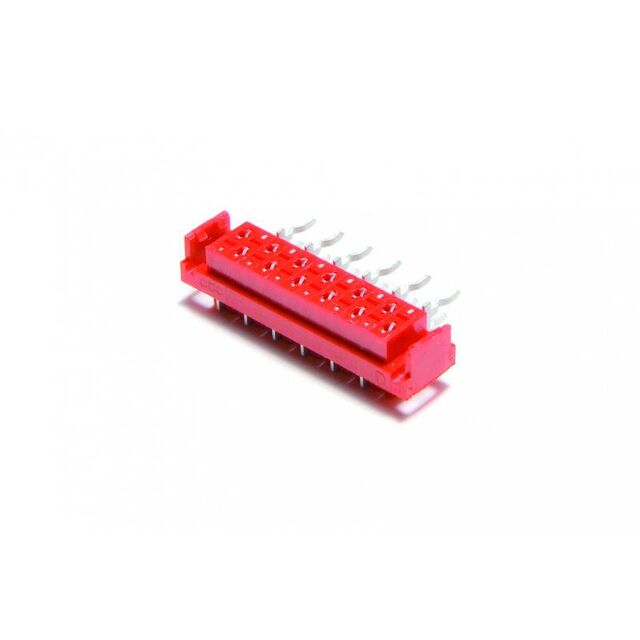

1.27MM R/A DIP TYPE FEMALE CONNE

Part	Insulation Material	Contact Material	Insulation Height [z]	Insulation Height [z]	Contact Type	Number of Positions Loaded	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Material Flammability Rating	Insulation Color	Termination	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Connector Type	Current Rating (Amps)	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Board-Side Pitch	Board-Side Pitch	Cable Pitch	Cable Pitch	Cable Termination	Contact Finish	Row Spacing	Row Spacing	Color
Assmann WSW Components A-32-24H-1300	Polyester Glass Filled	Phosphor Bronze	0.228 "	5.8 mm	Female Socket	All	Push-Pull	0.122 in	3.1 mm	24	UL94 V-0	Red	Kinked Pin Solder	2	0.1 "	2.54 mm	Receptacle	1.5 A	Right Angle Through Hole	0.1 in	2.54 mm
Assmann WSW Components A-32-24H-130L						All				24				2			Header					2.54 mm	0.1 "	2.54 mm	0.1 in	IDC	Tin	2.54 mm	0.1 "	Red
