DF3 Series

Catalog

LED LGT BAR 19.9X6.8MM GREEN

Part	Mounting Type	Current	Lens Type	Color	Wavelength - Peak	Millicandela Rating	Lens Style	Lens Size [x]	Lens Size [y]	Configuration	Voltage Rating
Kingbright DF3SGD	Through Hole	25 mA	Diffused Tinted	Green	565 nm	60 mcd	Rectangle with Flat Top	19.9 mm	6.8 mm	Bar - Single DIP
Kingbright DF3CGKD	Through Hole	150 mA	Diffused Tinted	Green		94 mcd	Rectangle with Flat Top	19.9 mm	6.8 mm	Bar - Single DIP	2.1 V

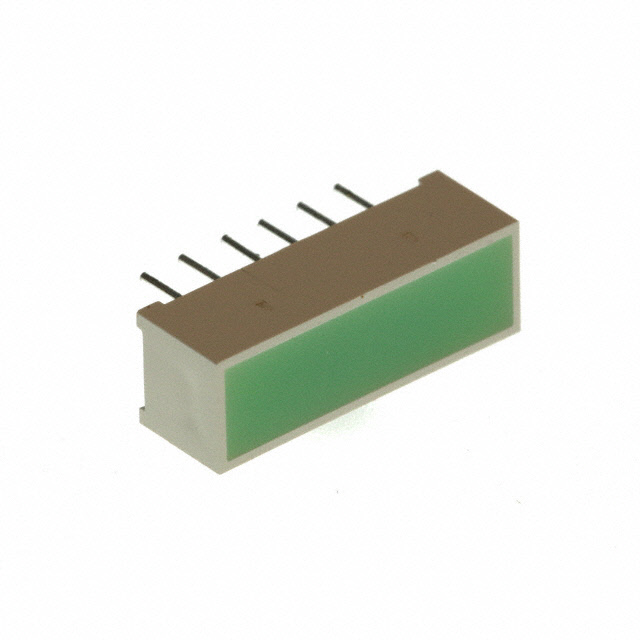

Kingbright DF3GD	Through Hole	25 mA	Diffused Tinted	Green	565 nm	34 mcd	Rectangle with Flat Top	19.9 mm	6.8 mm	Bar - Single DIP
Kingbright DF3YD	Through Hole	30 mA	Diffused Tinted	Yellow	590 nm	26 mcd	Rectangle with Flat Top	19.9 mm	6.8 mm	Bar - Single DIP	2.1 V

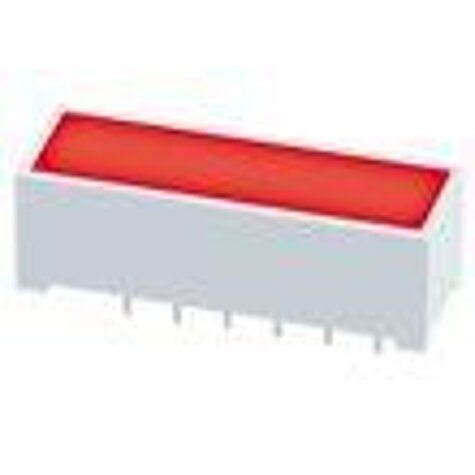

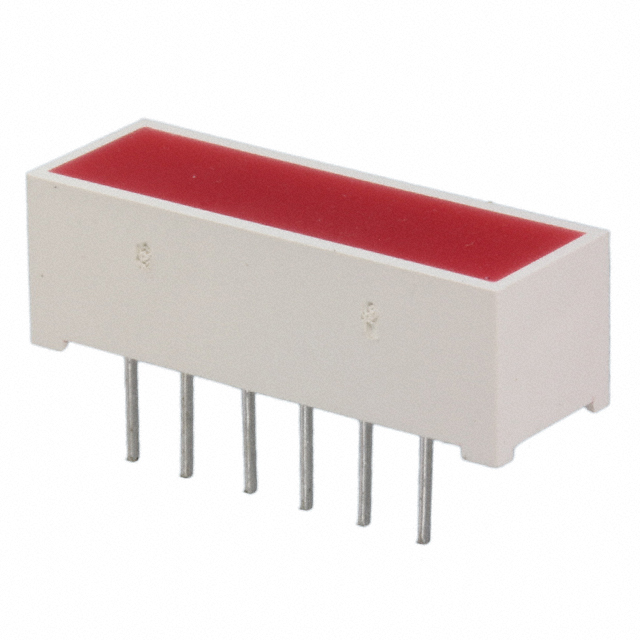

Kingbright DF3SURKD	Through Hole	185 mA	Diffused Tinted	Red	645 nm	160 mcd	Rectangle with Flat Top	19.9 mm	6.8 mm	Bar - Single DIP	1.95 V

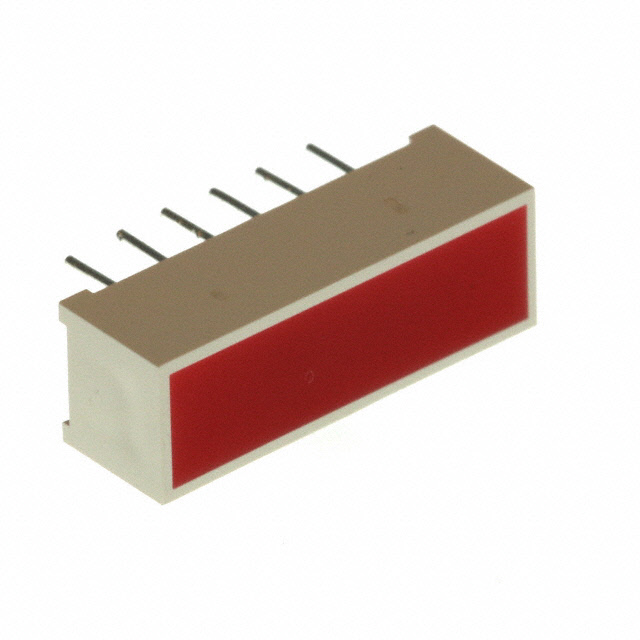

Kingbright DF3ID	Through Hole	30 mA	Diffused Tinted	Red	627 nm	27 mcd	Rectangle with Flat Top	19.9 mm	6.8 mm	Bar - Single DIP	2 V

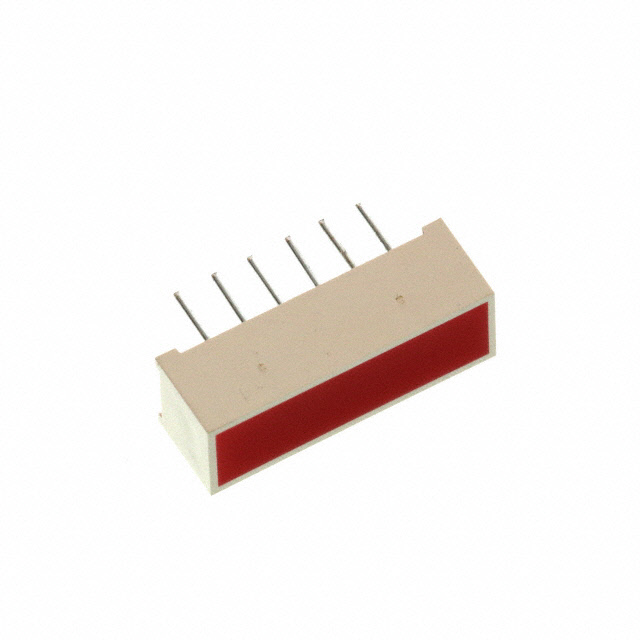

Kingbright DF3SRD	Through Hole	20 mA 30 mA	Diffused Diffused Red Tinted	Red Red (x 3)	655 nm 660 nm	270 mcd	Rectangle with Flat Top	19.9 mm	6.8 mm	Bar - Single Bar - Single SIP DIP	1.85 V
Kingbright DF3SYKD	Through Hole	175 mA	Diffused Tinted	Yellow	590 nm	350 mcd	Rectangle with Flat Top	19.9 mm	6.8 mm	Bar - Single DIP	2 V
