8418 Series
Manufacturer: Belden Inc.
Beta
⌘K

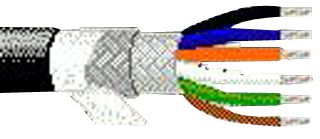

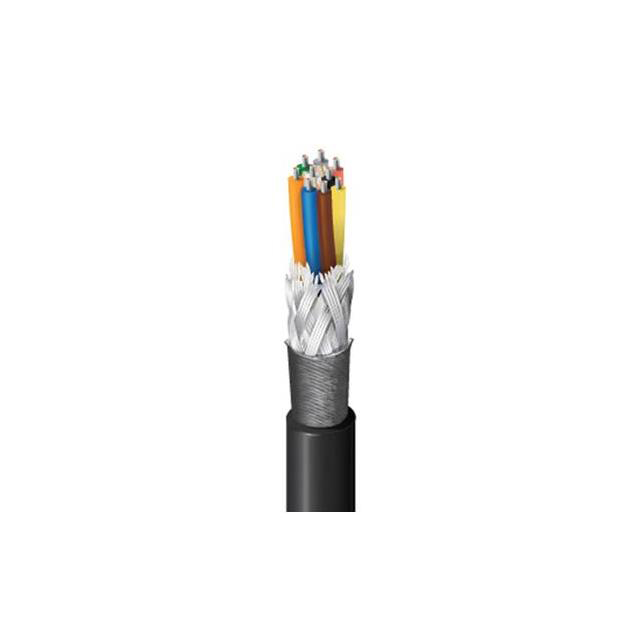

MULTICONDUCTOR CABLE, MICROPHONE, SHIELDED, 8 CONDUCTOR, 20 AWG, 100 FT, 30.48 M
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Number of Conductors [custom] | Jacket (Insulation) Material | Wire Gauge | Conductor Material | Usage | Voltage | Conductor Insulation | Length [x] | Length [x] | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Tinned Viscose | 85 % | 0.381 in | 9.68 mm | Black | 8 | Ethylene Propylene Terpolymer Rubber (EPDM) | 20 AWG | Copper Tinned | Audio | 600 V | Ethylene Propylene Terpolymer Rubber (EPDM) | 100 ft | 30.5 m | 90 °C | -50 °C | Double Braid | Microphone | 26 | 34 AWG | 0.94 mm | 0.037 in |
