LY1N-DC Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

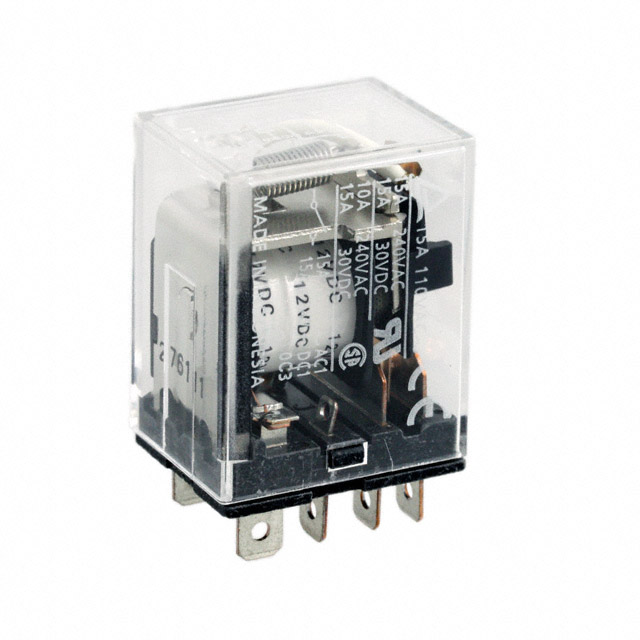

RELAY GEN PURPOSE SPDT 15A 12V
| Part | Release Time | Coil Resistance | Contact Form | Approval Agency | Contact Rating (Current) | Contact Material | Load - Max Switching | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Operate Time | Coil Current | Coil Voltage | Must Release Voltage | Relay Type | Mounting Type | Switching Voltage | Features | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 25 ms | 160 Ohms | SPDT (1 Form C) | CE CSA TUV UR | 15 A | Silver Alloy | 1875 W 3750 VA | Plug In | 55 °C | -25 °C | 9.6 VDC | 25 ms | 75 mA | 12 VDC | 1.2 VDC | General Purpose | Socketable | 125 VDC 250 VAC | Lighted Indicator | Non Latching |
