2475/22 Series

Catalog

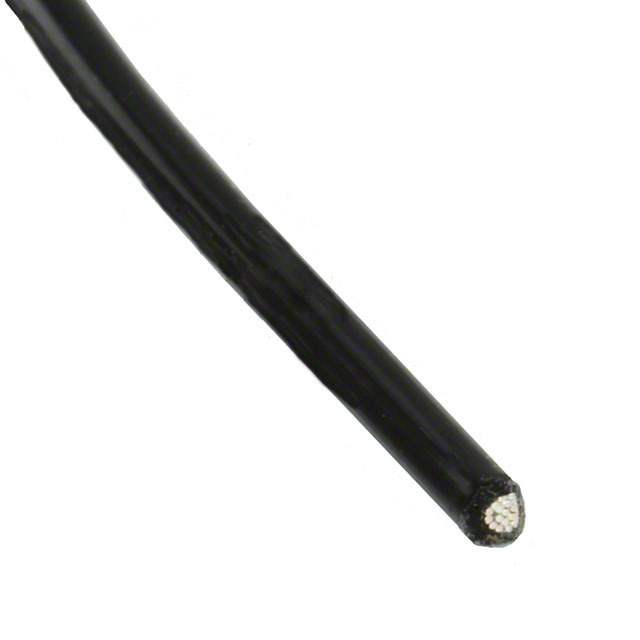

HOOK-UP STRND 22AWG VIO

Part	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Conductor Material	Features	Jacket Color	Voltage	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Length	Length	Length
Daburn Electronics 2475/22 VI-100	34 AWG	19	22 AWG	0.38 mm	0.015 in	Hook-Up	Copper Silver Coated	High Voltage	Violet	20 kVDC	Fluorinated Ethylene-Propylene (FEP)	-65 ░C	200 °C	100 ft	30.5 m
Daburn Electronics 2475/22 WH-500	34 AWG	19	22 AWG	0.38 mm	0.015 in	Hook-Up	Copper Silver Coated	High Voltage	White	20 kVDC	Fluorinated Ethylene-Propylene (FEP)	-65 ░C	200 °C	100 ft	30.5 m	15.24 m 152.4 m	50 ft 500 ft	Enter Number of Feet in Order Quantity
Daburn Electronics 2475/22 BU-500	34 AWG	19	22 AWG	0.38 mm	0.015 in	Hook-Up	Copper Silver Coated	High Voltage	Blue	20 kVDC	Fluorinated Ethylene-Propylene (FEP)	-65 ░C	200 °C			152.4 m	500 ft
Daburn Electronics 2475/22 CL-1000	34 AWG	19	22 AWG	0.38 mm	0.015 in	Hook-Up	Copper Silver Coated	High Voltage	Clear	20 kVDC	Fluorinated Ethylene-Propylene (FEP)	-65 ░C	200 °C			304.8 m	1000 ft
Daburn Electronics 2475/22 BK-100	34 AWG	19	22 AWG	0.38 mm	0.015 in	Hook-Up	Copper Silver Coated	High Voltage	Black	20 kVDC	Fluorinated Ethylene-Propylene (FEP)	-65 ░C	200 °C	100 ft	30.5 m
Daburn Electronics 2475/22 CL-500	34 AWG	19	22 AWG	0.38 mm	0.015 in	Hook-Up	Copper Silver Coated	High Voltage	Clear	20 kVDC	Fluorinated Ethylene-Propylene (FEP)	-65 ░C	200 °C			152.4 m	500 ft
Daburn Electronics 2475/22 CL-100	34 AWG	19	22 AWG	0.38 mm	0.015 in	Hook-Up	Copper Silver Coated	High Voltage	Clear	20 kVDC	Fluorinated Ethylene-Propylene (FEP)	-65 ░C	200 °C	100 ft	30.5 m
Daburn Electronics 2475/22 BK-1000	34 AWG	19	22 AWG	0.38 mm	0.015 in	Hook-Up	Copper Silver Coated	High Voltage	Black	20 kVDC	Fluorinated Ethylene-Propylene (FEP)	-65 ░C	200 °C			304.8 m	1000 ft
Daburn Electronics 2475/22 BK-500	34 AWG	19	22 AWG	0.38 mm	0.015 in	Hook-Up	Copper Silver Coated	High Voltage	Black	20 kVDC	Fluorinated Ethylene-Propylene (FEP)	-65 ░C	200 °C	100 ft	30.5 m	15.24 m 152.4 m	50 ft 500 ft	Enter Number of Feet in Order Quantity
Daburn Electronics 2475/22 BU-100	34 AWG	19	22 AWG	0.38 mm	0.015 in	Hook-Up	Copper Silver Coated	High Voltage	Blue	20 kVDC	Fluorinated Ethylene-Propylene (FEP)	-65 ░C	200 °C	100 ft	30.5 m
