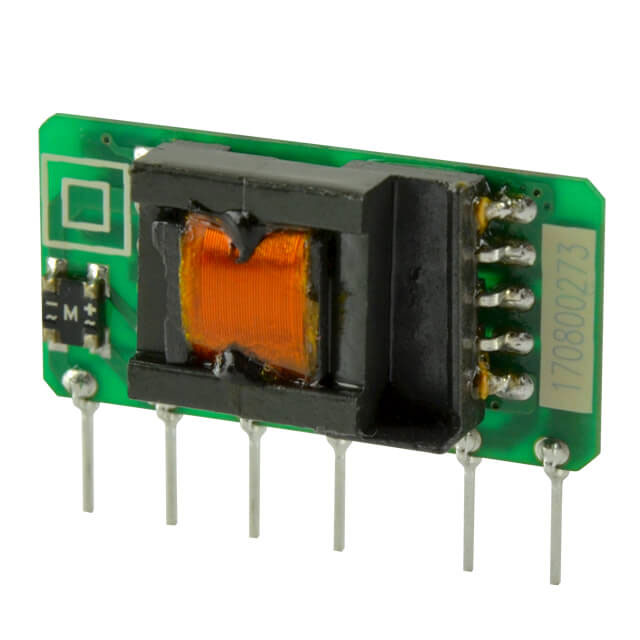

PBO-1 Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 24V 1W

Part	Voltage - Output 1	Mounting Type	Efficiency	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Current - Output (Max) [Max]	Applications	Package / Case	Load Regulation	Line Regulation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Type	Standard Number	Approval Agency	Size / Dimension [y]	Size / Dimension [z]
CUI Inc. PBO-1-S24	24 V	Through Hole	68 %	1	35 mm	0.43 in	11 mm	1.38 "	18 mm	0.71 in	42 mA	ITE (Commercial)	12-SIP Module 6 Leads	2.5 %	1.5 %	-40 °C	85 °C	70 VDC 85 VAC	305 VAC 430 VDC	Open Frame	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	CB Scheme EN IEC UL
CUI Inc. PBO-1-S12	12 V	Through Hole	70 %	1	35 mm	0.43 in	11 mm	1.38 "	18 mm	0.71 in	83 mA	ITE (Commercial)	12-SIP Module 6 Leads	2.5 %	1.5 %	-40 °C	85 °C	70 VDC 85 VAC	305 VAC 430 VDC	Open Frame	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	CB Scheme EN IEC UL
CUI Inc. PBO-1-S9	9 V	Through Hole	67 %	1	35 mm	0.43 in	11 mm	1.38 "	18 mm	0.71 in	111 mA	ITE (Commercial)	12-SIP Module 6 Leads	2.5 %	1.5 %	-40 °C	85 °C	70 VDC 85 VAC	305 VAC 430 VDC	Open Frame	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	CB Scheme EN IEC UL

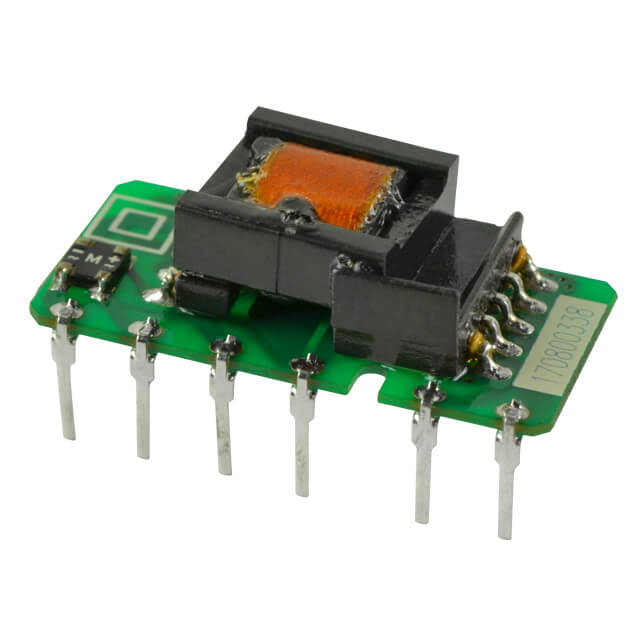

CUI Inc. PBO-1-S5-B	5 V	Through Hole	66 %	1	35 mm	0.71 in		1.38 "		0.43 in	200 mA	ITE (Commercial)	12-SIP Module 6 Leads	2.5 %	1.5 %	-40 °C	85 °C	70 VDC 85 VAC	305 VAC 430 VDC	Open Frame	55024 55032 60950-1 61000-3-3	CB Scheme EN IEC UL	18 mm	11 mm
