CLU02Q Series

Catalog

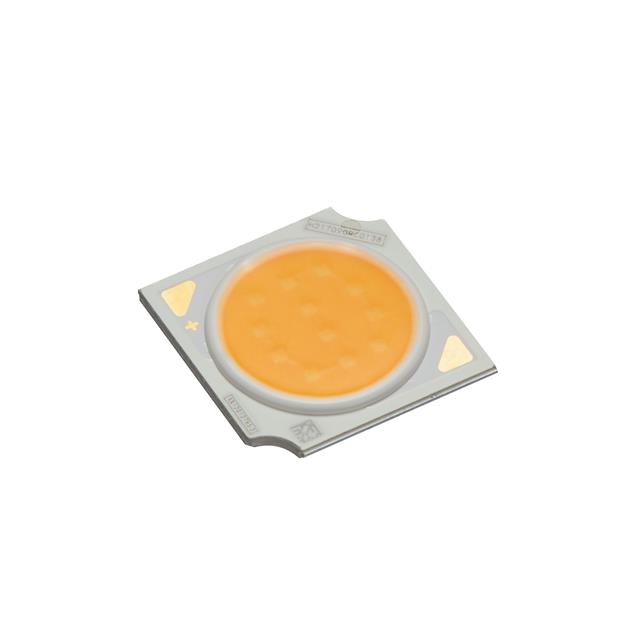

LED COB CLU02Q WM WHT SQ 3000K

Part	Current - Test	CRI (Color Rendering Index)	Color	Voltage - Forward (Vf) (Typ)	Features	Lens Type	Luminous Flux @ Current/Temperature	Light Emitting Surface (LES) [diameter]	Lumens/Watt @ Current - Test	CCT (K)	CCT (K)	Configuration	Temperature - Test	Current - Max [Max]	Type	Size / Dimension [y]	Size / Dimension [x]	Height [z]
Citizen Finedevice Co Ltd CLU02Q-1202E1-303L7X4	180 mA	70	Warm White	33.8 V	With Connector	Flat	1152 lm	9.7 mm	175 lm/W	3-Step MacAdam Ellipse	3000 K	Square	85 °C	460 mA	Chip On Board (COB)	13.5 mm	13.5 mm	1.4 mm
Citizen Finedevice Co Ltd CLU02Q-1204E1-352H6X3	360 mA	90	Warm White	33.8 V	With Connector	Flat	1804 lm	9.7 mm	137 lm/W		3500 K	Square	85 °C	920 mA	Chip On Board (COB)	13.5 mm	13.5 mm	1.4 mm
Citizen Finedevice Co Ltd CLU02Q-1201E1-503L7X4	90 mA	70	Cool White	33.8 V	With Connector	Flat	591 lm	9.7 mm	179 lm/W	3-Step MacAdam Ellipse	5000 K	Square	85 °C	230 mA	Chip On Board (COB)	13.5 mm	13.5 mm	1.4 mm
Citizen Finedevice Co Ltd CLU02Q-1201E1-272H6X3	90 mA	90	Warm White	33.8 V	With Connector	Flat	421 lm	9.7 mm	128 lm/W	2-Step MacAdam Ellipse	2700 K	Square	85 °C	230 mA	Chip On Board (COB)	13.5 mm	13.5 mm	1.4 mm
Citizen Finedevice Co Ltd CLU02Q-1201E1-272H5X3	90 mA	90	Warm White	33.8 V	With Connector	Flat	440 lm	9.7 mm	133 lm/W	2-Step MacAdam Ellipse	2700 K	Square	85 °C	230 mA	Chip On Board (COB)	13.5 mm	13.5 mm	1.4 mm
Citizen Finedevice Co Ltd CLU02Q-1204E1-572H5X3	360 mA	90	Cool White	33.8 V	With Connector	Flat	1929 lm	9.7 mm	147 lm/W	2-Step MacAdam Ellipse	5700 K	Square	85 °C	920 mA	Chip On Board (COB)	13.5 mm	13.5 mm	1.4 mm
Citizen Finedevice Co Ltd CLU02Q-1202E1-272H5X3	180 mA	90	Warm White	33.8 V	With Connector	Flat	869 lm	9.7 mm	132 lm/W	2-Step MacAdam Ellipse	2700 K	Square	85 °C	460 mA	Chip On Board (COB)	13.5 mm	13.5 mm	1.4 mm
Citizen Finedevice Co Ltd CLU02Q-1201E1-403L7X4	90 mA	70	Neutral White	33.8 V	With Connector	Flat	592 lm	9.7 mm	179 lm/W	3-Step MacAdam Ellipse	4000 K	Square	85 °C	230 mA	Chip On Board (COB)	13.5 mm	13.5 mm	1.4 mm
