PEC06 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 12POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Termination	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Contact Length - Mating	Contact Length - Mating	Contact Material	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Connector Type	Insulation Material	Number of Positions	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Mounting Type	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Style	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Number of Rows [custom]	Number of Rows	Overall Contact Length	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [custom]	Contact Length - Post [custom]

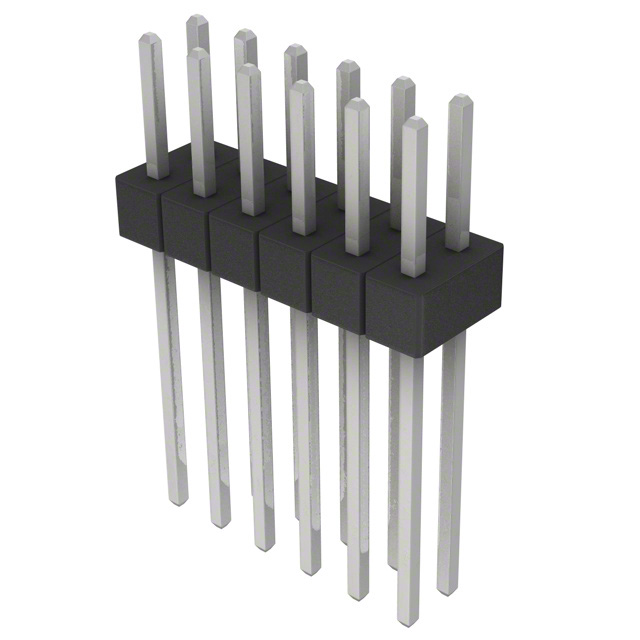

Sullins Connector Solutions PEC06DAEN	2.54 µm	100 µin	UL94 V-0	Solder	0.1 "	2.54 mm	Push-Pull	100 çin	2.54 çm	Square	0.23 in	5.84 mm	Phosphor Bronze	Unshrouded	0.1 in	2.54 mm	Black	Header Breakaway	Polybutylene Terephthalate (PBT)	12	0.85 in	21.59 mm	All	Through Hole	3 A	0.52 in	13.21 mm	Tin	Board to Board Cable	Male Pin	-65 ░C	125 °C	0.1 in	2.54 mm	2
Sullins Connector Solutions PEC06DACN	2.54 µm	100 µin	UL94 V-0	Solder	0.1 "	2.54 mm	Push-Pull	100 çin	2.54 çm	Square	0.23 in	5.84 mm	Phosphor Bronze	Unshrouded	0.1 in	2.54 mm	Black	Header Breakaway	Polybutylene Terephthalate (PBT)	12	0.65 in	16.51 mm	All	Through Hole	3 A	0.32 in	8.13 mm	Tin	Board to Board Cable	Male Pin	-65 ░C	125 °C	0.1 in	2.54 mm	2
Sullins Connector Solutions PEC06SFCN	2.54 µm	100 µin	UL94 V-0	Solder	0.1 "	2.54 mm	Push-Pull	100 çin	2.54 çm	Square	0.318 in	8.08 mm	Phosphor Bronze	Unshrouded			Black	Header Breakaway	Polybutylene Terephthalate (PBT)	6		18.75 mm	All	Through Hole	3 A	0.32 in	8.13 mm	Tin	Board to Board Cable	Male Pin	-65 ░C	125 °C	0.1 in	2.54 mm		1	0.738 in

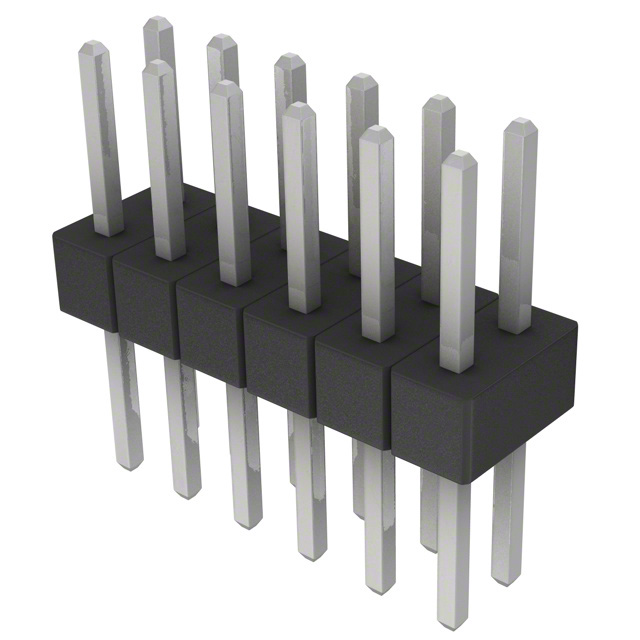

Sullins Connector Solutions PEC06DABN	2.54 µm	100 µin	UL94 V-0	Solder	0.1 "	2.54 mm	Push-Pull	100 çin	2.54 çm	Square	0.23 in	5.84 mm	Phosphor Bronze	Unshrouded	0.1 in	2.54 mm	Black	Header Breakaway	Polybutylene Terephthalate (PBT)	12	0.56 in	14.22 mm	All	Through Hole	3 A	0.23 "	5.84 mm	Tin	Board to Board Cable	Male Pin	-65 ░C	125 °C	0.1 in	2.54 mm	2
Sullins Connector Solutions PEC06DBBN	2.54 µm	100 µin	UL94 V-0	Solder	0.1 "	2.54 mm	Push-Pull	100 çin	2.54 çm	Square	0.23 in	5.84 mm	Phosphor Bronze	Unshrouded	0.1 in	2.54 mm	Black	Header Breakaway	Polybutylene Terephthalate (PBT)	12			All	Right Angle Through Hole	3 A			Tin	Board to Board Cable	Male Pin	-65 ░C	125 °C			2			6.1 mm	0.24 in	5.08 mm	0.2 "

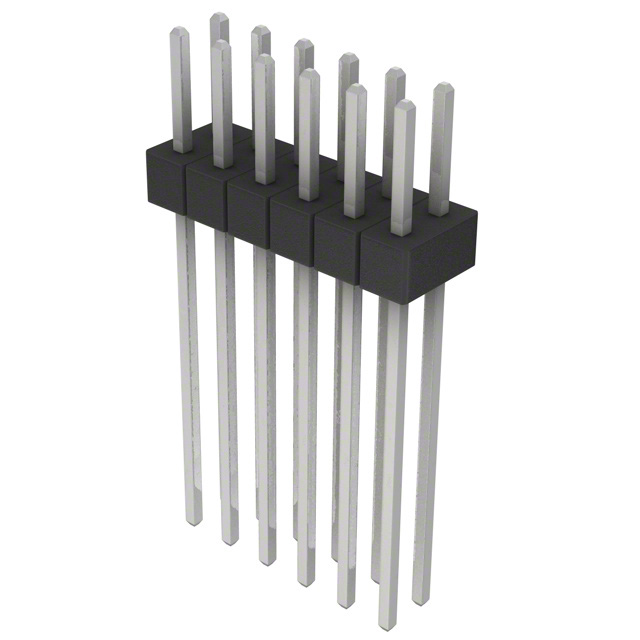

Sullins Connector Solutions PEC06DAGN	2.54 µm	100 µin	UL94 V-0	Solder	0.1 "	2.54 mm	Push-Pull	100 çin	2.54 çm	Square	0.23 in	5.84 mm	Phosphor Bronze	Unshrouded	0.1 in	2.54 mm	Black	Header Breakaway	Polybutylene Terephthalate (PBT)	12	1.05 in	26.67 mm	All	Through Hole	3 A	0.72 "	18.29 mm	Tin	Board to Board Cable	Male Pin	-65 ░C	125 °C	0.1 in	2.54 mm	2
Sullins Connector Solutions PEC06SBDN	2.54 µm	100 µin	UL94 V-0	Solder	0.1 "	2.54 mm	Push-Pull	100 çin	2.54 çm	Square	0.23 in	5.84 mm	Phosphor Bronze	Unshrouded			Black	Header Breakaway	Polybutylene Terephthalate (PBT)	6			All	Right Angle Through Hole	3 A	0.4 in	10.16 mm	Tin	Board to Board Cable	Male Pin	-65 ░C	125 °C	0.14 in	3.56 mm		1
Sullins Connector Solutions PEC06SBEN	2.54 µm	100 µin	UL94 V-0	Solder	0.1 "	2.54 mm	Push-Pull	100 çin	2.54 çm	Square	0.23 in	5.84 mm	Phosphor Bronze	Unshrouded			Black	Header Breakaway	Polybutylene Terephthalate (PBT)	6			All	Right Angle Through Hole	3 A	0.5 "	12.7 mm	Tin	Board to Board Cable	Male Pin	-65 ░C	125 °C	0.14 in	3.56 mm		1
Sullins Connector Solutions PEC06DBAN-M71	2.54 µm	100 µin	UL94 V-0	Solder	0.1 "	2.54 mm	Push-Pull	100 çin	2.54 çm	Square	0.23 in	5.84 mm	Phosphor Bronze	Unshrouded	0.1 in	2.54 mm	Black	Header Breakaway	Polybutylene Terephthalate (PBT)	12			All	Right Angle Through Hole	3 A	0.12 in	3.05 mm	Tin	Board to Board Cable	Male Pin	-65 ░C	125 °C			2			5.08 mm	0.2 in
Sullins Connector Solutions PEC06SFDN	2.54 µm	100 µin	UL94 V-0	Solder	0.1 "	2.54 mm	Push-Pull	100 çin	2.54 çm	Square	0.318 in	8.08 mm	Phosphor Bronze	Unshrouded			Black	Header Breakaway	Polybutylene Terephthalate (PBT)	6	0.838 in	21.29 mm	All	Through Hole	3 A	0.42 in	10.67 mm	Tin	Board to Board Cable	Male Pin	-65 ░C	125 °C	0.1 in	2.54 mm		1
