AWH 24G Series

Catalog

CONN HEADER 24POS IDC GOLD

Part	Row Spacing	Row Spacing	Contact Type	Number of Rows [custom]	Contact Finish	Cable Termination	Number of Positions	Color	Pitch	Pitch	Connector Type	Features	Wire Type	Mounting Type	Fastening Type	Insulation Color	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Shrouding	Contact Finish - Post	Contact Material	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions Loaded	Insulation Material	Current Rating (Amps)	Style	Contact Shape

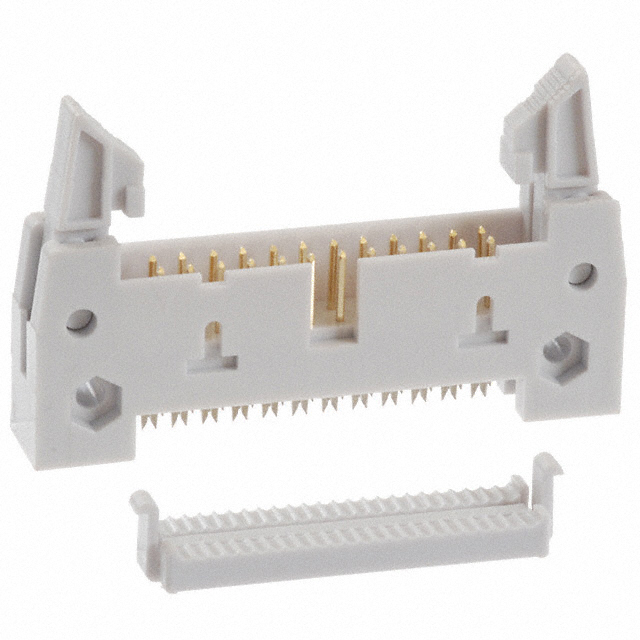

Assmann WSW Components AWH24G-0222-IDC-R	2.54 mm	0.1 "	Male Pin	2	Gold	IDC	24	Gray	0.1 "	2.54 mm	Header	Feed Through	Ribbon Cable	Free Hanging (In-Line)	Latch Lock/Eject Hooks
Assmann WSW Components AWH 24G-0232-IDC	2.54 mm	0.1 "	Male Pin	2	Gold	IDC	24	Gray	0.1 "	2.54 mm	Header	Feed Through	Ribbon Cable	Free Hanging (In-Line)	Latch Lock/Eject Hooks Long

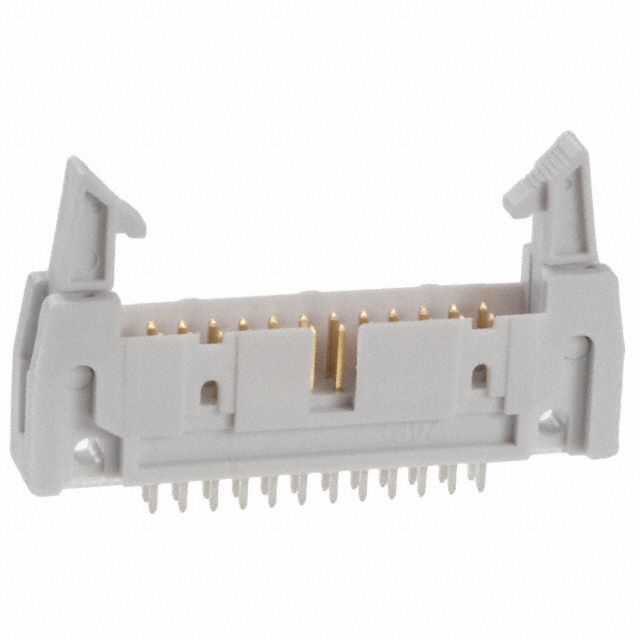

Assmann WSW Components AWH24G-0232-T-R			Male Pin	2			24				Header	Keying Slot		Through Hole	Latch Lock/Eject Hooks Long	Gray	Gold	0.1 in	2.54 mm	0.1 "	2.54 mm	0.13 "	3.3 mm	UL94 V-0	Shrouded - 4 Wall	Tin	Brass	17 mm	0.669 in	Flash	-40 C	105 ░C	Solder	All	Polybutylene Terephthalate (PBT) Glass Filled	3 A	Board to Cable/Wire	Square

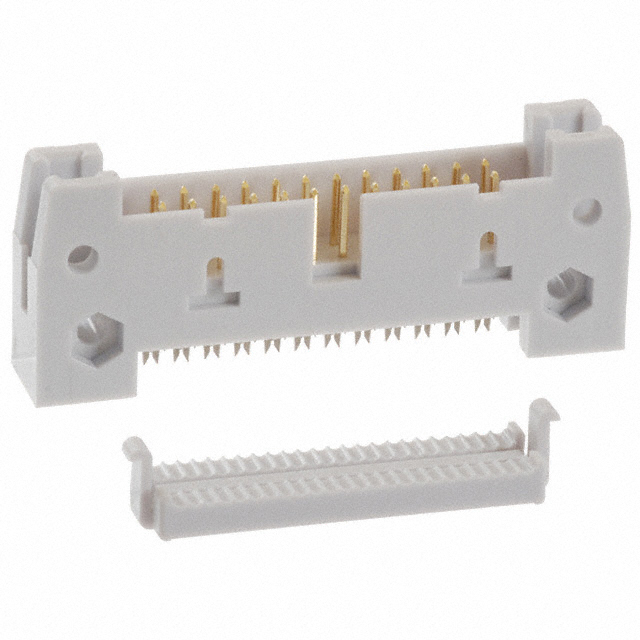

Assmann WSW Components AWH24G-0202-IDC-R	2.54 mm	0.1 "	Male Pin	2	Gold	IDC	24	Gray	0.1 "	2.54 mm	Header	Feed Through	Ribbon Cable	Free Hanging (In-Line)

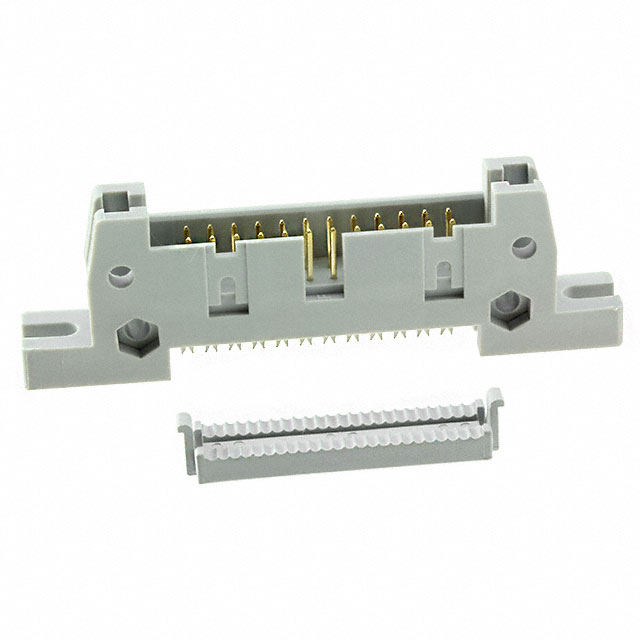

Assmann WSW Components AWH 24G-E202-IDC	2.54 mm	0.1 "	Male Pin	2	Gold	IDC	24	Gray	0.1 "	2.54 mm	Header	Feed Through	Ribbon Cable	Panel Mount
