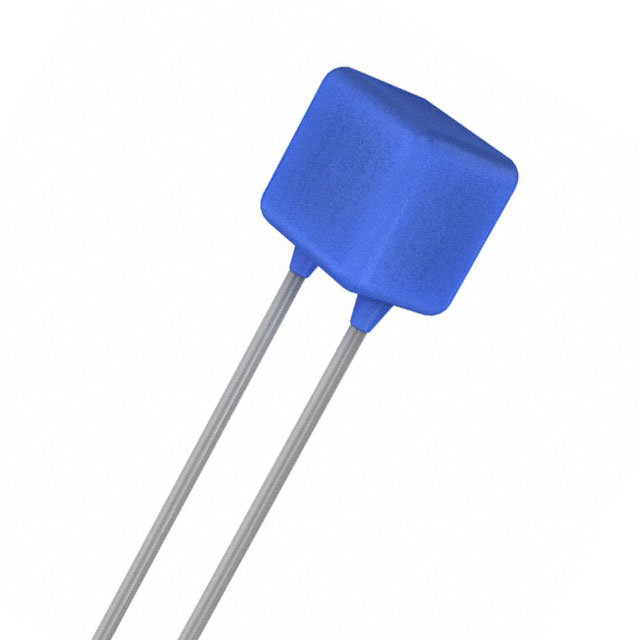

30HV11N Series
Manufacturer: KEMET
Beta
⌘K
CAP CERAMIC 470PF 3000V C0G 10% RADIAL 5.08MM 200°C
| Part | Lead Spacing | Lead Spacing | Voltage - Rated | Voltage - Rated | Package / Case | Capacitance | Tolerance | Temperature Coefficient | Features | Operating Temperature [Max] | Operating Temperature [Min] | Lead Style | Mounting Type | Applications | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Height - Seated (Max) [Max] | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 0.2 in | 5.08 mm | 3000 V | 3 kV | Radial | 470 pF | 10 % | C0G NP0 | High Temperature High Voltage | 200 °C | -55 C | Straight | Through Hole | Downhole | 8.13 mm | 0.32 " | 6.35 mm | 0.25 in | 0.3 in | 7.62 mm |
 KEMET | 0.2 in | 5.08 mm | 3000 V | 3 kV | Radial | 100 pF | 10 % | C0G NP0 | High Temperature High Voltage | 200 °C | -55 C | Straight | Through Hole | Downhole | 8.13 mm | 0.32 " | 6.35 mm | 0.25 in | 0.3 in | 7.62 mm |
