TLR2A Series

Catalog

RES 4M OHM 1% 1W 0805

Part	Ratings	Resistance	Tolerance	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Composition	Supplier Device Package	Number of Terminations [custom]	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max)	Package / Case	Temperature Coefficient	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

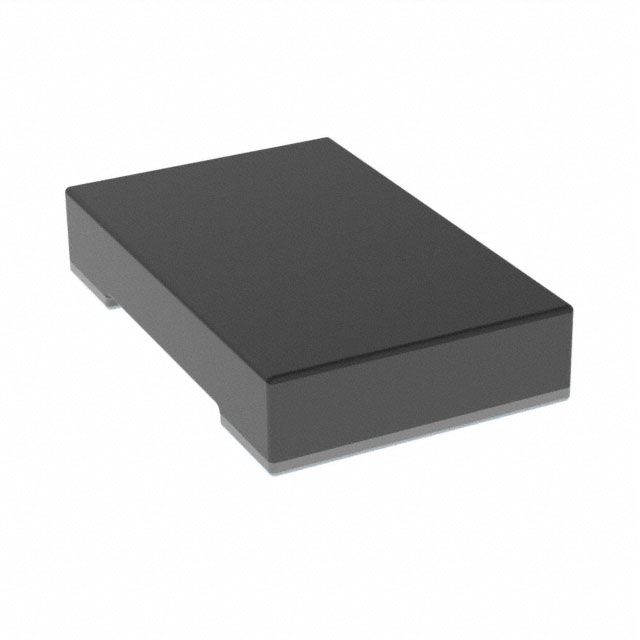

KOA Speer Electronics, Inc. TLR2ATTD4L00F	AEC-Q200	4 mOhms	1 %	1 W	155 C	-65 ░C	Metal Element	0805	2	Automotive AEC-Q200 Current Sense	2 mm	1.25 mm	0.049 "	0.079 in	0.016 in	0.4 mm	0805	100 ppm/°C

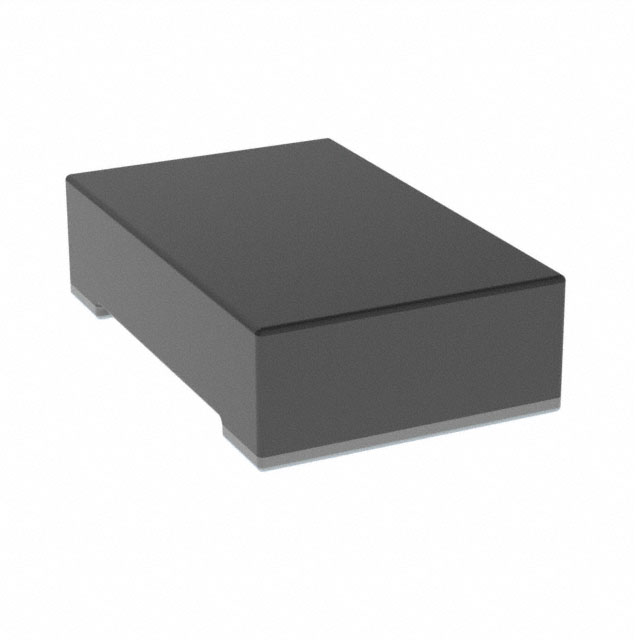

KOA Speer Electronics, Inc. TLR2ATTD10L0F	AEC-Q200	10 mOhms	1 %	1 W	155 C	-65 ░C	Metal Element	0805	2	Automotive AEC-Q200 Current Sense	2 mm	1.25 mm	0.049 "	0.079 in	0.022 in		0805	100 ppm/°C	0.55 mm

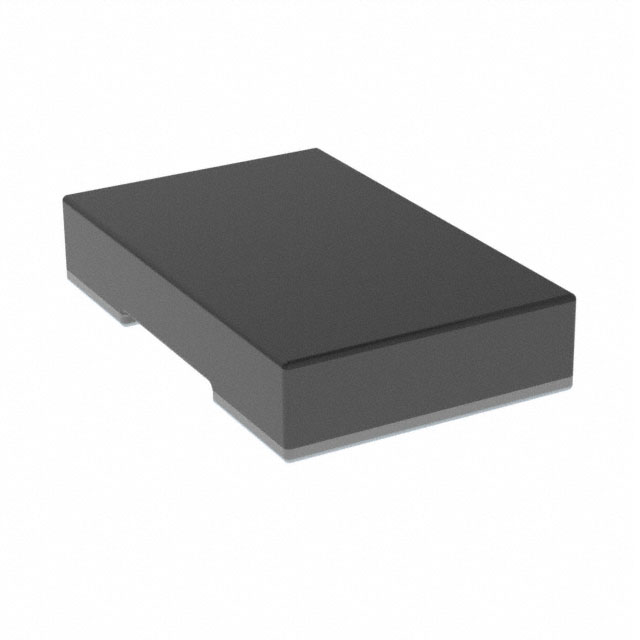

KOA Speer Electronics, Inc. TLR2ATTD3L00F	AEC-Q200	3 mOhms	1 %	1 W	155 C	-65 ░C	Metal Element	0805	2	Automotive AEC-Q200 Current Sense	2 mm	1.25 mm	0.049 "	0.079 in	0.016 in	0.4 mm	0805	100 ppm/°C

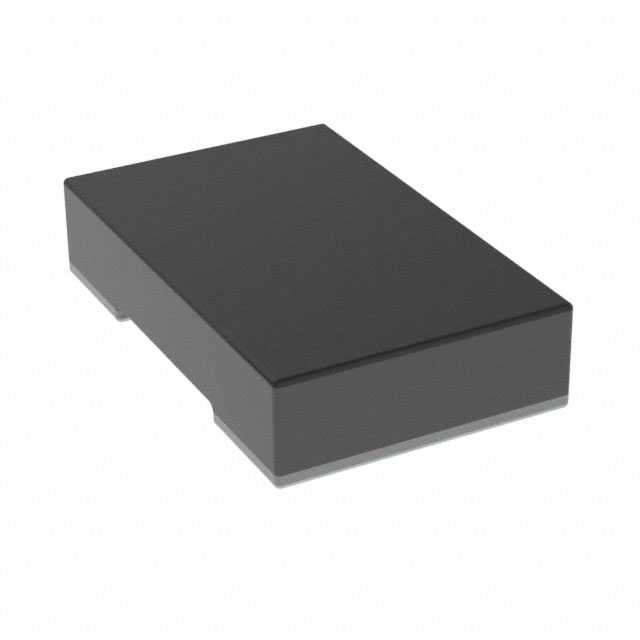

KOA Speer Electronics, Inc. TLR2ATTD6L00F	AEC-Q200	6 mOhms	1 %	1 W	155 C	-65 ░C	Metal Element	0805	2	Automotive AEC-Q200 Current Sense	2 mm	1.25 mm	0.049 "	0.079 in			0805	100 ppm/°C		0.018 "	0.45 mm
