09140033 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY CONNECTOR, HAN C SERIES, CABLE MOUNT, PLUG, 3 CONTACTS, PIN, 1 ROWS

Part	Color	Housing Material	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Current Rating (Amps)	Connector Type	Contact Type	Termination Style	Voltage Rating	For Use With/Related Products	Specifications	Accessory Type
HARTING 09140033001	Gray	Polycarbonate (PC)	UL94 V-0	125 °C	-40 C	Male	32 A	Module without Contacts	Han® C	Crimp	600 V
HARTING 09140033051	Gray	Polycarbonate (PC)	UL94 V-0	125 °C	-40 C	Male	16 A	Module without Contacts	Han® E	Crimp	500 V

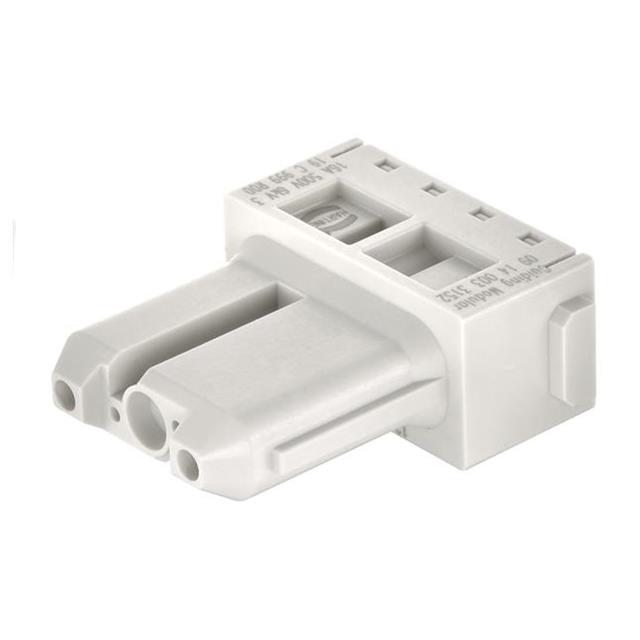

HARTING 09140033152	Gray	Polycarbonate (PC)	UL94 V-0	125 °C	-40 C	Female	16 A	Module without Contacts	Han® E	Crimp	500 V

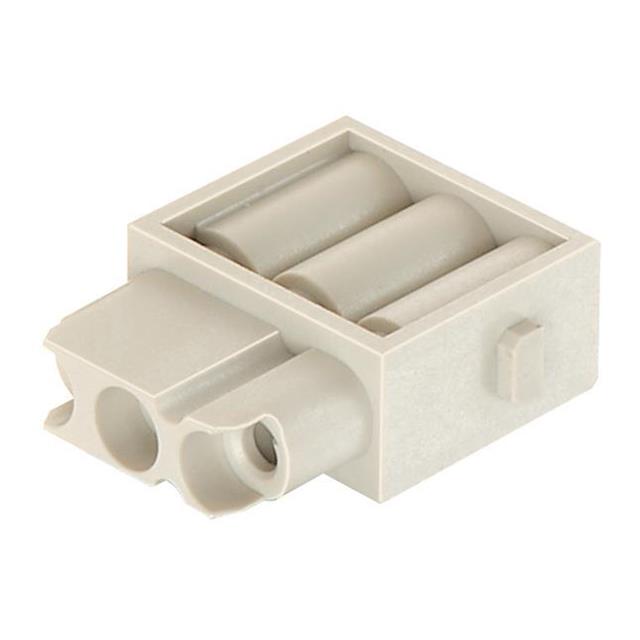

HARTING 09140033101	Gray	Polycarbonate (PC)	UL94 V-0	125 °C	-40 C	Female	32 A	Module without Contacts	Han® C	Crimp	600 V
HARTING 09140033102	Gray	Polycarbonate (PC)	UL94 V-0	125 °C	-40 C	Female	32 A	Module without Contacts	Han® C	Crimp	600 V
HARTING 09140033151	Gray	Polycarbonate (PC)	UL94 V-0	125 °C	-40 C	Female	16 A	Module without Contacts	Han® E	Crimp	500 V

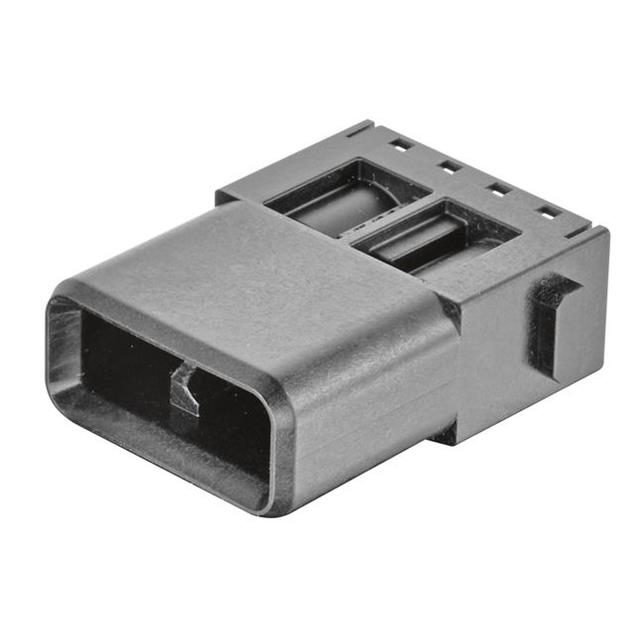

HARTING 09140033050												Han-Modular® Modules	Male	Dummy Module
HARTING 09140033501	Blue	Polycarbonate (PC)	UL94 V-0	85 °C	-40 C	Female Male		Module without Contacts		Crimp

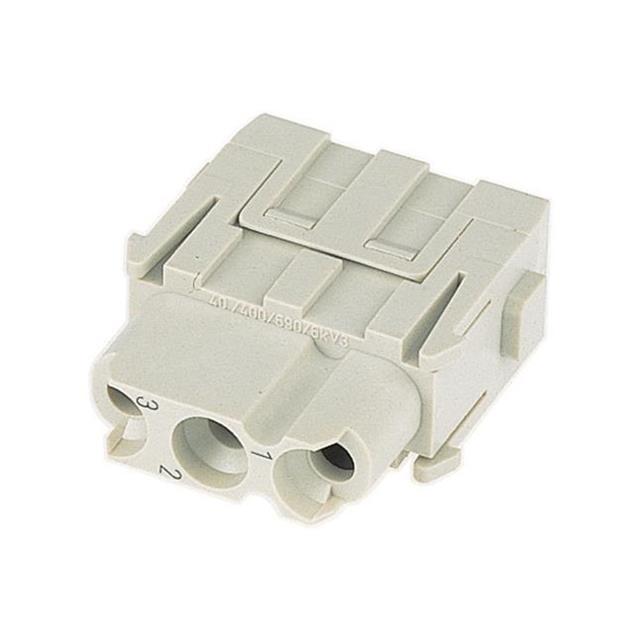

HARTING 09140033103	Gray	Polycarbonate (PC)	UL94 V-0	125 °C	-40 C	Female	40 A	Module without Contacts	Han® C	Crimp	500 V

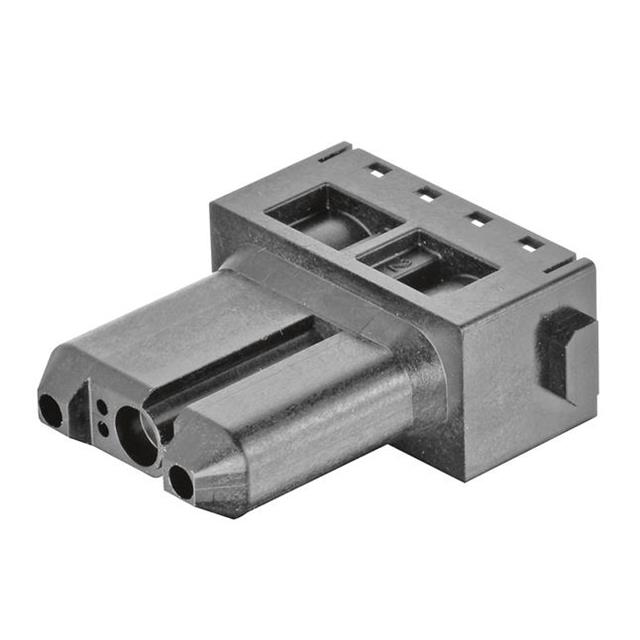

HARTING 09140033150												Han-Modular® Modules	Female	Dummy Module
