T41304 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SENSOR CONNECTOR, M12, MALE, 4 POSITIONS, SOLDER PIN, STRAIGHT PANEL MOUNT

Part	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Contact Material	Ingress Protection	Shielding	Material Flammability Rating	Current Rating (Amps)	Contact Finish - Mating	Number of Positions	Orientation	Color	Fastening Type	Primary Material	Shell Size - Insert	Shell Finish	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Mounting Feature	Voltage Rating	Mounting Type	Connector Type
TE Connectivity AMP Connectors T4130412041-000	Nylon 6/6 Polyamide (PA66)	0.076 µm	3 µin	Industrial	Copper Alloy	IP67 - Dust Tight Waterproof	Unshielded	UL94 V-0	4 A	Gold	4	B	Silver	Threaded	Metal	M12-4	Nickel	85 °C	-40 C	Copper Alloy	Bulkhead - Front Side Nut	250 V	Panel Mount	Receptacle Male Pins

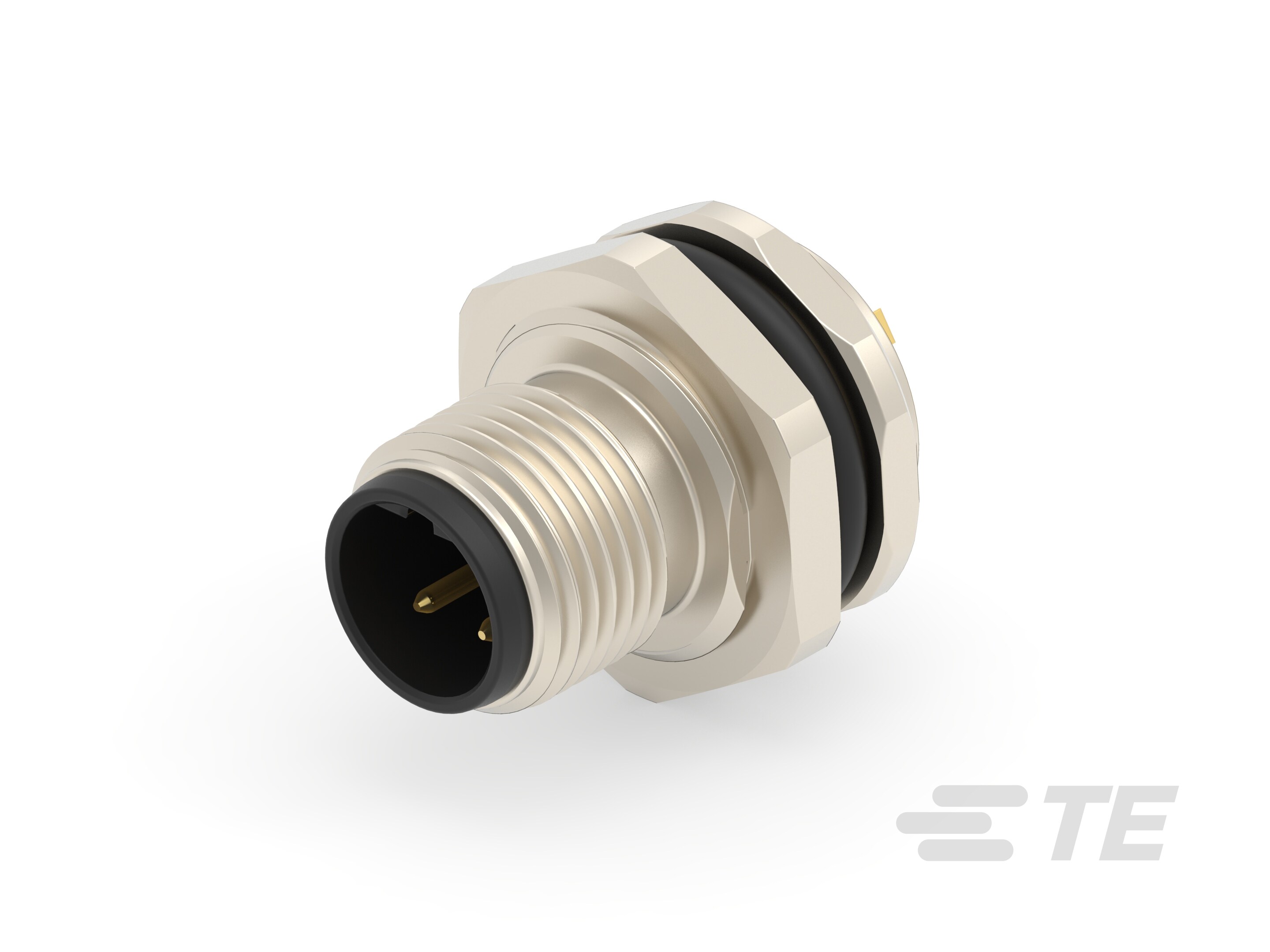

TE Connectivity AMP Connectors T4130412031-000	Nylon 6/6 Polyamide (PA66)	0.076 µm	3 µin	Industrial	Copper Alloy	IP67 - Dust Tight Waterproof	Unshielded	UL94 V-0	4 A	Gold		B	Silver	Threaded	Metal	M12-3	Nickel	85 °C	-40 C	Copper Alloy	Bulkhead - Front Side Nut	250 V	Panel Mount	Receptacle Male Pins

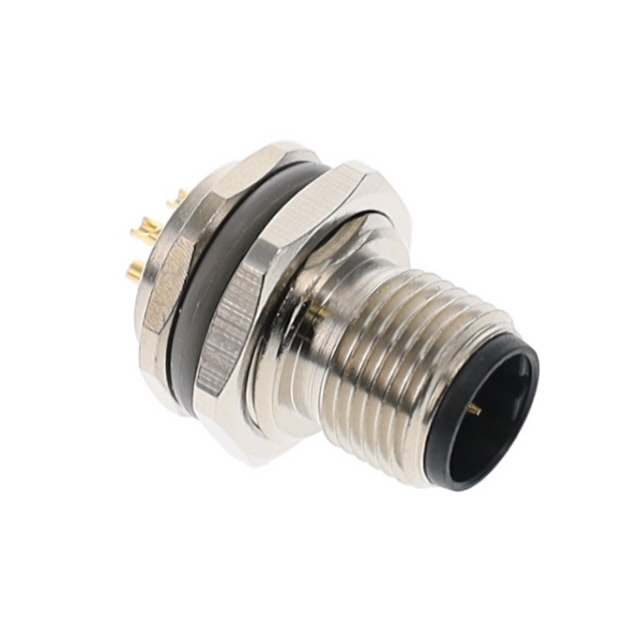

TE Connectivity AMP Connectors T4130412051-000	Nylon 6/6 Polyamide (PA66)	0.076 µm	3 µin	Industrial	Copper Alloy	IP67 - Dust Tight Waterproof	Unshielded	UL94 V-0	4 A	Gold	5	B	Silver	Threaded	Metal	M12-5	Nickel	85 °C	-40 C	Copper Alloy	Bulkhead - Front Side Nut	60 VDC	Panel Mount	Receptacle Male Pins
TE Connectivity AMP Connectors T4130412021-000	Nylon 6/6 Polyamide (PA66)	0.076 µm	3 µin	Industrial	Copper Alloy	IP67 - Dust Tight Waterproof	Unshielded	UL94 V-0	4 A	Gold	2	B	Silver	Threaded	Metal	M12-2	Nickel	85 °C	-40 C	Copper Alloy	Bulkhead - Front Side Nut	250 V	Panel Mount	Receptacle Male Pins
