ASB01503 Series
Manufacturer: Delta Electronics
Beta
⌘K

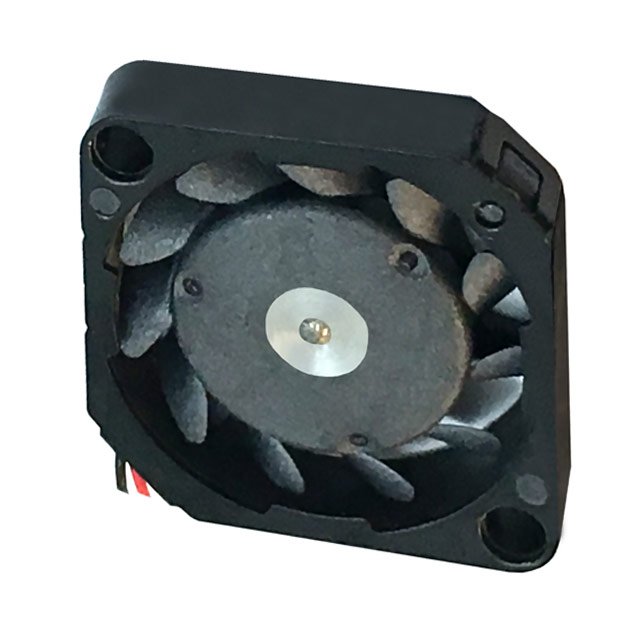

DC FAN AXIAL SLEEVE BEARING 3V 2V TO 3.5V 0.28CFM 31DB 15.4 X 15.4 X 3.4MM
| Part | Voltage Range [Max] | Voltage Range [Min] | Material - Blade | Current Rating (Amps) | Material - Frame | Lifetime @ Temp. | Air Flow | Air Flow | Termination | Weight | Weight | Width [x] | Bearing Type | Operating Temperature [Min] | Operating Temperature [Max] | RPM | Noise | Size / Dimension [z] | Size / Dimension | Size / Dimension [x] | Power (Watts) | Fan Type | Static Pressure | Static Pressure | Features | Approval Agency | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 3.5 VDC | 2 V | Plastic | 50 mA | Plastic | 30000 Hrs | 0.008 m³/min | 0.28 CFM | 3 Position Rectangular Connector | 1.36 g | 0.003 lb | 3.4 mm | Sleeve | -10 °C | 60 °C | 14500 RPM | 31 dB(A) | 15.4 mm | Square | 15.4 mm | 150 mW | Blower | 18.6 Pa | 0.075 in H2O | Locked Rotor Protection Speed Sensor (Tach) | cURus TUV | 3 VDC |
