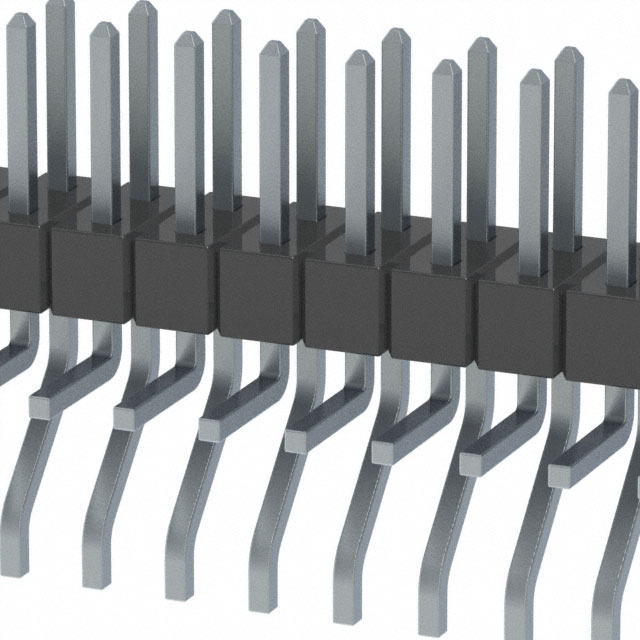

MMT-127 Series

Catalog

CONN HEADER SMD R/A 54POS 2MM

Part	Connector Type	Insulation Color	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Insulation Height [custom]	Insulation Height [custom]	Fastening Type	Style	Contact Type	Contact Shape	Contact Finish - Post	Material Flammability Rating	Termination	Number of Positions	Shrouding	Mounting Type	Features	Number of Rows	Current Rating (Amps)	Pitch - Mating [x]	Pitch - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Insulation Height	Insulation Height
Samtec Inc. MMT-127-01-T-DH-P	Header	Black	All	3.2 mm	0.126 "	0.079 in	2 mm	Phosphor Bronze	0.157 in	4 mm	Push-Pull	Board to Board Cable	Male Pin	Square	Tin	UL94 V-0	Solder	54	Unshrouded	Surface Mount Right Angle	Pick and Place	2	3 A	0.079 in	2 mm	105 ░C	-55 °C	Liquid Crystal Polymer (LCP)
Samtec Inc. MMT-127-02-T-MT-K-TR	Header	Black	All	4.45 mm	0.175 in	0.079 in	2 mm	Phosphor Bronze	0.157 in	4 mm	Push-Pull	Board to Board Cable	Male Pin	Square	Tin	UL94 V-0	Solder	54	Unshrouded	Surface Mount Right Angle Through Hole	Pick and Place	2	3 A	0.079 in	2 mm	105 ░C	-55 °C	Liquid Crystal Polymer (LCP)
Samtec Inc. MMT-127-01-F-SH-K	Header	Black	All	3.2 mm	0.126 "			Phosphor Bronze			Push-Pull	Board to Board Cable	Male Pin	Square	Tin	UL94 V-0	Solder	27	Unshrouded	Surface Mount Right Angle	Pick and Place	1	3 A	0.079 in	2 mm	125 °C	-55 °C	Liquid Crystal Polymer (LCP)	3 µin	0.076 µm	Gold	0.079 in	2 mm
Samtec Inc. MMT-127-01-S-DH-P	Header	Black	All	3.2 mm	0.126 "	0.079 in	2 mm	Phosphor Bronze	0.157 in	4 mm	Push-Pull	Board to Board Cable	Male Pin	Square	Tin	UL94 V-0	Solder	54	Unshrouded	Surface Mount Right Angle	Pick and Place	2	3 A	0.079 in	2 mm	125 °C	-55 °C	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	Gold
Samtec Inc. MMT-127-01-L-DH-P	Header	Black	All	3.2 mm	0.126 "	0.079 in	2 mm	Phosphor Bronze	0.157 in	4 mm	Push-Pull	Board to Board Cable	Male Pin	Square	Tin	UL94 V-0	Solder	54	Unshrouded	Surface Mount Right Angle	Pick and Place	2	3 A	0.079 in	2 mm	125 °C	-55 °C	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Gold
Samtec Inc. MMT-127-02-S-MT	Header	Black	All	4.45 mm	0.175 in	0.079 in	2 mm	Phosphor Bronze	0.157 in	4 mm	Push-Pull	Board to Board Cable	Male Pin	Square	Tin	UL94 V-0	Solder	54	Unshrouded	Surface Mount Right Angle Through Hole		2	3 A	0.079 in	2 mm	125 °C	-55 °C	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	Gold
