R22225 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

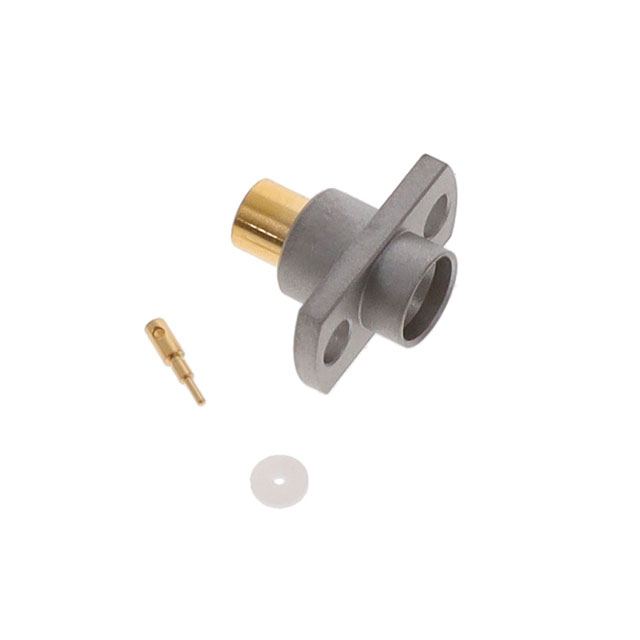

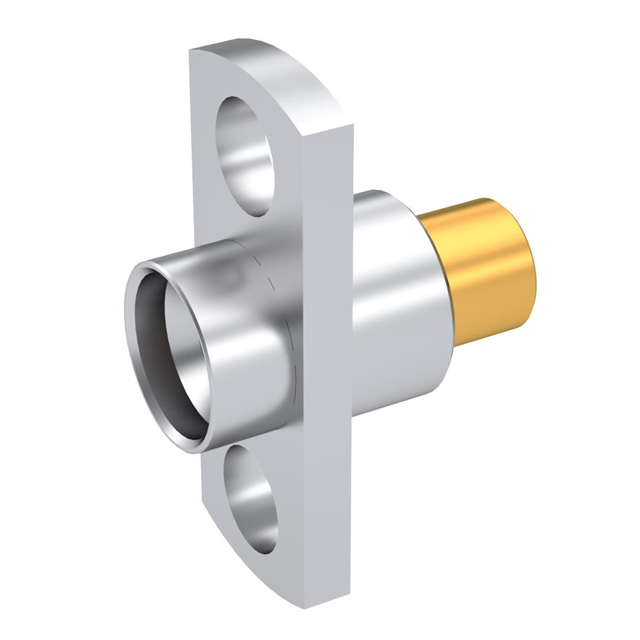

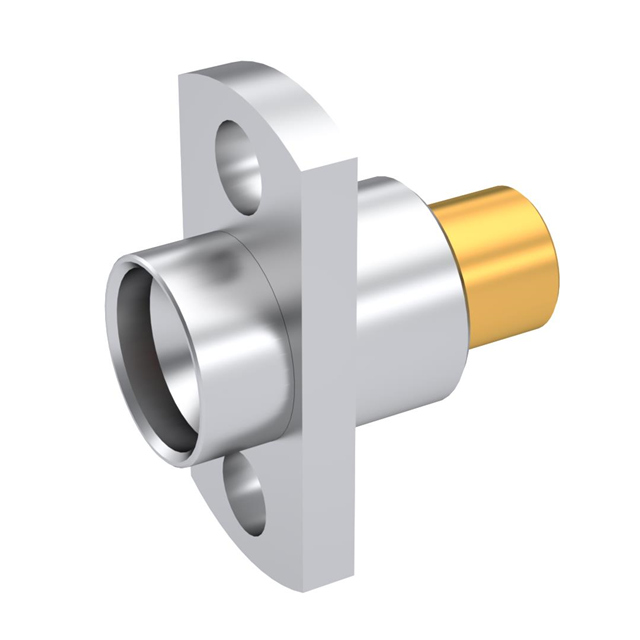

SMP / 2 HOLE FLANGE MALE JACK LI
| Part | Voltage Rating | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Center Contact Plating | Body Material | Dielectric Material | Fastening Type | Connector Type | Contact Termination | Mounting Feature | Center Contact Material | Number of Ports | Features | Frequency - Max [Max] | Impedance | Mounting Type | Cable Group | Housing Color | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 335 V | 500 | -65 ░C | 165 °C | Gold | Gold | Brass Stainless Steel | Polytetrafluoroethylene (PTFE) | Snap-On | Jack Male Pin | Solder | Flange | Beryllium Copper | 1 | Limited Detent | 40 GHz | 50 Ohms | Panel Mount | RG-405 (.085" Semi Rigid) | Gold Silver | Solder |
 Radiall USA, Inc. | 335 V | -65 ░C | 165 °C | Gold | Gold | Brass Stainless Steel | Polytetrafluoroethylene (PTFE) | Snap-On | Jack Male Pin | Solder | Flange | Beryllium Copper | 1 | Full Detent | 40 GHz | 50 Ohms | Panel Mount | RG-405 (.085" Semi Rigid) | Gold Silver | Solder | |
 Radiall USA, Inc. | 335 V | -65 ░C | 165 °C | Gold | Gold | Brass Stainless Steel | Polytetrafluoroethylene (PTFE) | Snap-On | Jack Male Pin | Solder | Bronze | 1 | Full Detent | 40 GHz | 50 Ohms | Free Hanging (In-Line) | RG-405 (.085" Semi Rigid) | Gold Silver | Solder | ||
 Radiall USA, Inc. | 335 V | 500 | -65 ░C | 165 °C | Gold | Gold | Brass Stainless Steel | Polytetrafluoroethylene (PTFE) | Snap-On | Jack Male Pin | Solder | Flange | Beryllium Copper | 1 | Limited Detent | 40 GHz | 50 Ohms | Panel Mount | RG-405 (.085" Semi Rigid) | Gold Silver | Solder |
 Radiall USA, Inc. | 335 V | -65 ░C | 165 °C | Gold | Gold | Brass Stainless Steel | Polytetrafluoroethylene (PTFE) | Snap-On | Jack Male Pin | Solder | Bronze | 1 | Full Detent | 40 GHz | 50 Ohms | Free Hanging (In-Line) | RG-405 (.085" Semi Rigid) | Gold Silver | Solder |
