TDSG5150 Series

Catalog

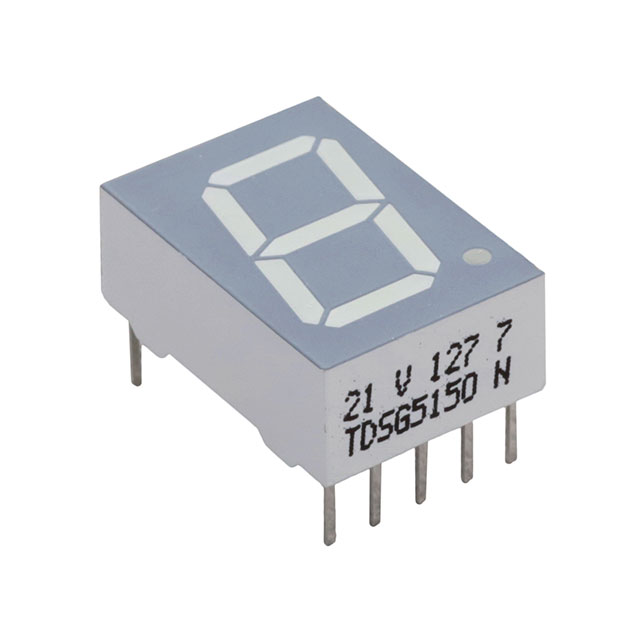

DISPLAY 7SEG 0.51" SGL GRN 10DIP

Part	Number of Characters [custom]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Millicandela Rating	Display Type	Voltage - Forward (Vf) (Typ)	Package / Case	Package / Case	Package / Case	Wavelength - Peak	Common Pin	Current - Test	Power Dissipation (Max) [Max]	Color	Digit/Alpha Size	Digit/Alpha Size
Vishay General Semiconductor - Diodes Division TDSG5150-MN	1	6.4 mm	17.5 mm	0.482 in	0.252 in	0.689 in	12.25 mm	14 mcd	7-Segment	2.4 V	0.6 in	15.24 mm	10-DIP	565 nm	Common Anode	20 mA	550 mW	Green	0.51 in	13 mm
Vishay General Semiconductor - Diodes Division TDSG5150-N	1	6.4 mm	17.5 mm	0.482 in	0.252 in	0.689 in	12.25 mm	14 mcd	7-Segment	2.4 V	0.6 in	15.24 mm	10-DIP	565 nm	Common Anode	20 mA	550 mW	Green	0.51 in	13 mm
Vishay General Semiconductor - Diodes Division TDSG5150	1	6.4 mm	17.5 mm	0.482 in	0.252 in	0.689 in	12.25 mm	9.5 mcd	7-Segment	2.4 V	0.6 in	15.24 mm	10-DIP	565 nm	Common Anode	20 mA	550 mW	Green	0.51 in	13 mm
