SRD2-2D Series
Manufacturer: Switch Components
Beta
⌘K

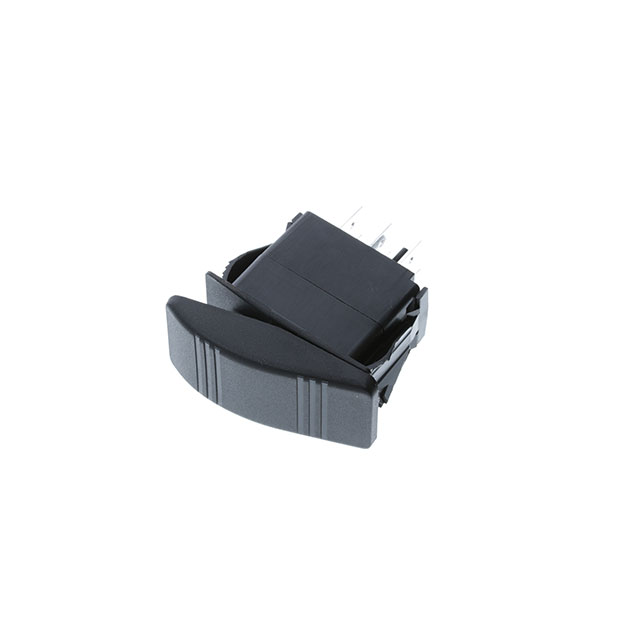

SWITCH ROCKER DPDT 21A 125V
| Part | Mechanical Life (Cycles) | Electrical Life (Cycles) | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Actuator Marking | Ingress Protection IP Rating | Ingress Protection Description | Color - Actuator/Cap | Switch Function | Voltage Rating - DC | Voltage Rating - AC | Circuit | Quick Connect Size (0.250") | Termination Style | Actuator Type | Current Rating | Panel Cutout Width | Panel Cutout Shape | Panel Cutout Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch Components | 10000 Cycles | 6000 Cycles | 85 °C | -25 °C | Panel Mount Snap-In | No Marking | IP56 | Dust Protected Water Resistant | Red | On-On | 14 V | 125 V | DPDT | 0.25 in | Quick Connect | Convex (Reverse V) | 20 A 21 A | 21.2 mm | Rectangular | 36.8 mm |
 Switch Components | 10000 Cycles | 6000 Cycles | 85 °C | -25 °C | Panel Mount Snap-In | No Marking | IP56 | Dust Protected Water Resistant | Black | On-On | 14 V | 125 V | DPDT | 0.25 in | Quick Connect | Convex (Reverse V) | 20 A 21 A | 21.2 mm | Rectangular | 36.8 mm |
