892-114 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 114POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Card Type	Number of Rows [custom]	Pitch	Pitch	Read Out	Contact Finish	Termination	Card Thickness [Max]	Card Thickness [Min]	Color	Mounting Type	Number of Positions	Features	Gender	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Bay/Row [custom]	Contact Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]
EDAC Inc. 892-114-560-203	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	2	0.1 "	2.54 mm	Dual	Gold	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Board Edge Straddle Mount	114	Card Extender	Female	Copper Alloy	0.25 Ám	10 Áin	125 °C	-40 C	57	Cantilever	0.116 "	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 892-114-555-204	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	2	0.1 "	2.54 mm	Dual	Gold	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Board Edge Straddle Mount	114	Card Extender	Female	Copper Alloy	0.25 Ám	10 Áin	125 °C	-40 C	57	Cantilever	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm

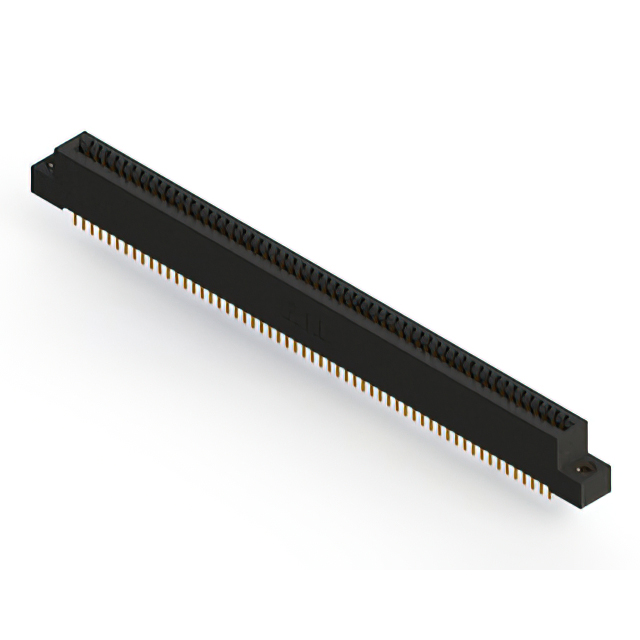

EDAC Inc. 892-114-521-208	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	2	0.1 "	2.54 mm	Dual	Gold	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Through Hole	114		Female	Copper Alloy	0.25 Ám	10 Áin	125 °C	-40 C	57	Cantilever		4-40 Flush Mount Threaded Insert Top Opening

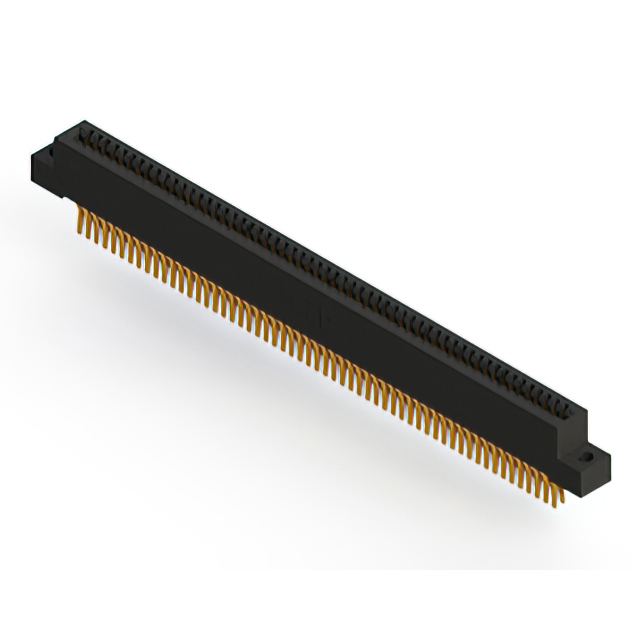

EDAC Inc. 892-114-560-204	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	2	0.1 "	2.54 mm	Dual	Gold	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Board Edge Straddle Mount	114	Card Extender	Female	Copper Alloy	0.25 Ám	10 Áin	125 °C	-40 C	57	Cantilever	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm
EDAC Inc. 892-114-558-202	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	2	0.1 "	2.54 mm	Dual	Gold	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Right Angle Through Hole	114		Female	Copper Alloy	0.25 Ám	10 Áin	125 °C	-40 C	57	Cantilever	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm
EDAC Inc. 892-114-559-204	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	2	0.1 "	2.54 mm	Dual	Gold	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Right Angle Through Hole	114		Female	Copper Alloy	0.25 Ám	10 Áin	125 °C	-40 C	57	Cantilever	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm

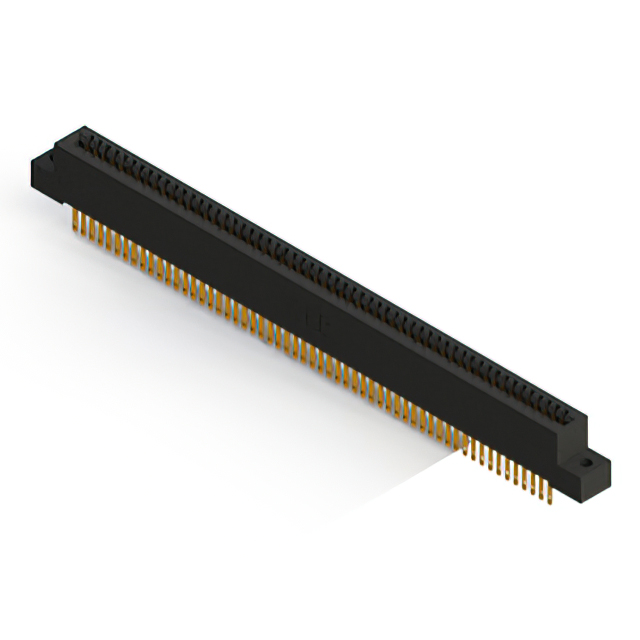

EDAC Inc. 892-114-500-202	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	2	0.1 "	2.54 mm	Dual	Gold	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Through Hole	114		Female	Copper Alloy	0.25 Ám	10 Áin	125 °C	-40 C	57	Cantilever	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm
EDAC Inc. 892-114-560-207	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	2	0.1 "	2.54 mm	Dual	Gold	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Board Edge Straddle Mount	114	Card Extender	Female	Copper Alloy	0.25 Ám	10 Áin	125 °C	-40 C	57	Cantilever		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 892-114-556-202	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	2	0.1 "	2.54 mm	Dual	Gold	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Board Edge Straddle Mount	114	Card Extender	Female	Copper Alloy	0.25 Ám	10 Áin	125 °C	-40 C	57	Cantilever	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm

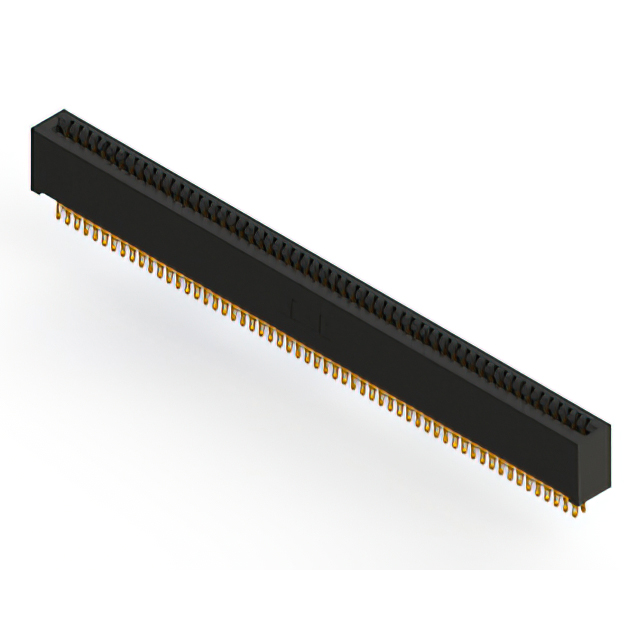

EDAC Inc. 892-114-555-201	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	2	0.1 "	2.54 mm	Dual	Gold	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Board Edge Straddle Mount	114	Card Extender	Female	Copper Alloy	0.25 Ám	10 Áin	125 °C	-40 C	57	Cantilever
