XW5G-S4 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K

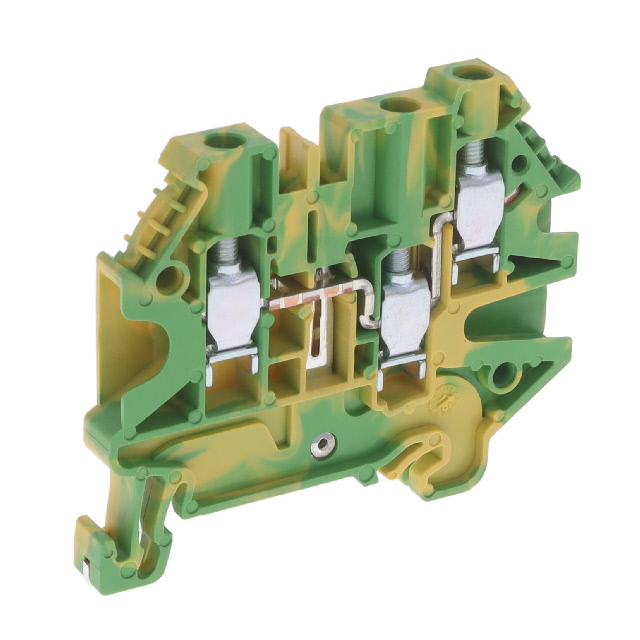

GROUNDTB SCREW 4MM 1:2 1TIER
| Part | Material - Insulation | Material Flammability Rating | Stripping Length | Terminal - Width [y] | Voltage - UL | Type | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Voltage - IEC | Number of Levels | Color | Termination Style | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | Nylon Polyamide (PA) | UL94 V-0 | 9 mm | 6 mm | 300 V | Ground Earth | 0.14 mm² | 6 mm² | 26 AWG | 10 AWG | 500 V | 1 | Green Yellow | Screw | |
 Omron Automation and Safety | Nylon Polyamide (PA) | UL94 V-0 | 9 mm | 6 mm | 300 V | Ground Earth | 0.14 mm² | 6 mm² | 26 AWG | 10 AWG | 500 V | 1 | Green Yellow | Screw | 4 |
