SM07B-ZE Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

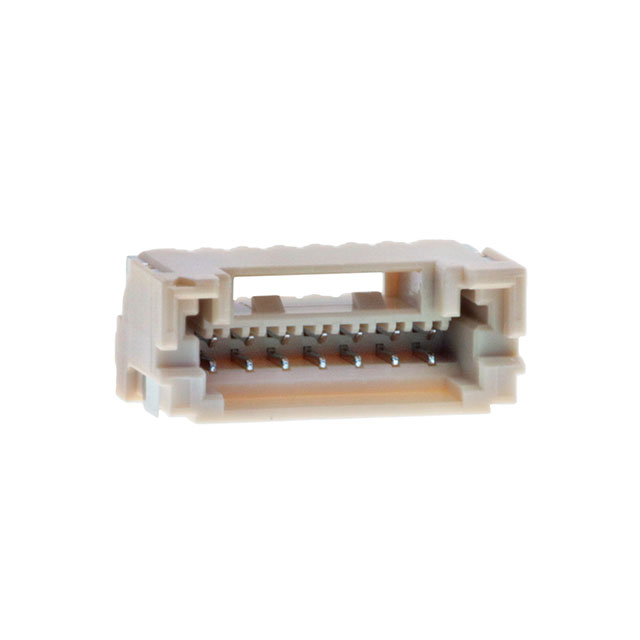

CONN HEADER SMD R/A 7POS 1.5MM
| Part | Contact Finish - Post | Insulation Color | Current Rating (Amps) | Connector Type | Style | Features | Voltage Rating | Mounting Type | Insulation Material | Shrouding | Termination | Contact Type | Contact Material | Insulation Height [z] | Insulation Height [z] | Number of Positions Loaded | Number of Positions | Number of Rows | Material Flammability Rating | Contact Shape | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Tin | Natural | 2 A | Header | Board to Cable/Wire | Solder Retention | 100 V | Right Angle Surface Mount | Nylon Polyamide (PA) | Shrouded - 4 Wall | Solder | Outer Shroud Contact | Copper Alloy | 0.228 " | 5.8 mm | All | 7 | 1 | UL94 V-0 | Rectangular | Locking Ramp | 85 °C | -25 °C |
