RT6242 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K

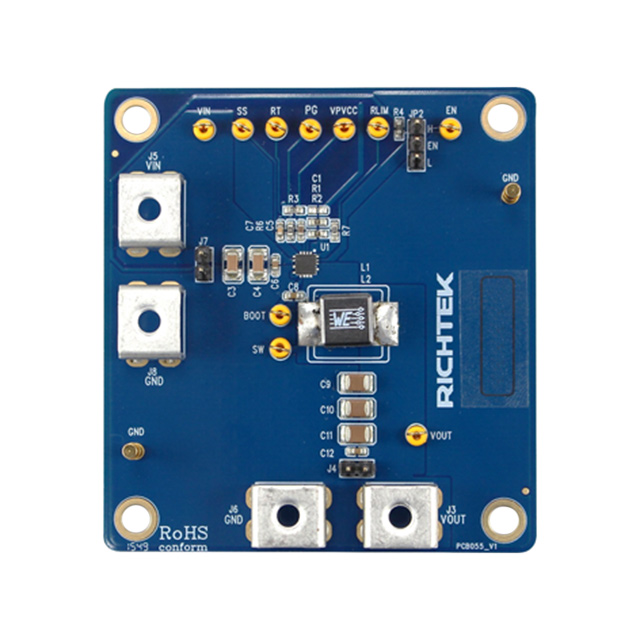

EVAL MODULE FOR RT6242AHGQUF
| Part | Outputs and Type | Outputs and Type | Board Type | Supplied Contents | Utilized IC / Part | Voltage - Output | Frequency - Switching | Current - Output | Regulator Topology | Voltage - Input [Max] | Voltage - Input [Min] | Main Purpose | Contents | Number of Outputs | Output Configuration | Synchronous Rectifier | Voltage - Input (Max) [Max] | Mounting Type | Voltage - Output (Min/Fixed) [Min] | Package / Case | Voltage - Input (Min) [Min] | Function | Topology | Output Type | Voltage - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Frequency - Switching [Min] | Frequency - Switching [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Richtek USA Inc. | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | Board(s) | RT6242A | 1.4 V | 500 kHz | 12 A | Buck | 18 V | 4.5 V | DC/DC Step Down | Board(s) | |||||||||||||||||
 Richtek USA Inc. | 12 A | 1 | Positive | 18 V | Surface Mount | 0.7 V | 16-UFQFN | 4.5 V | Step-Down | Buck | Adjustable | 8 V | 85 C | -40 ¯C | 16-UQFN (3x3) | 300 kHz | 700 kHz |
