ECQ-UAAF225 Series

Catalog

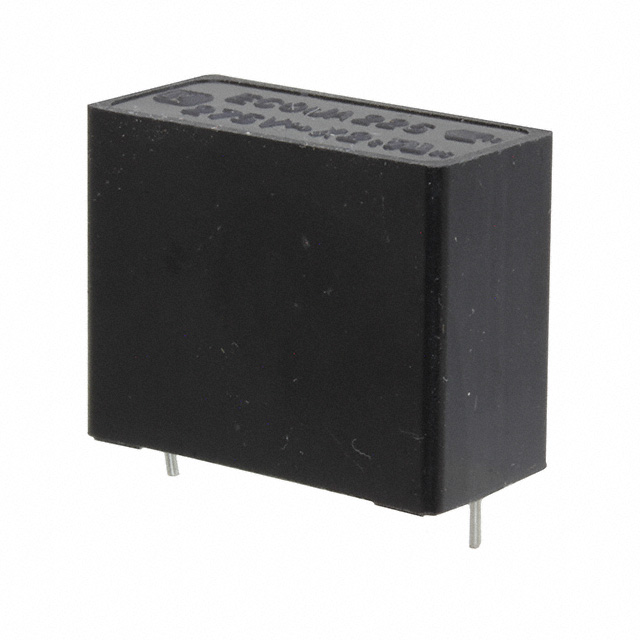

CAP FILM 2.2UF 20% 275VAC RAD

Part	Package / Case	Ratings	Termination	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Dielectric Material	Tolerance	Voltage Rating - AC	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance
Panasonic Industrial Automation Sales ECQ-UAAF225SA	Radial	AEC-Q200 X2	PC Pins	1.22 in	14.5 mm	31 mm	0.571 in	Metallized Polypropylene (PP)	20 %	275 V	Automotive EMI RFI Suppression	-40 °C	110 °C	27.5 mm	1.083 in	Through Hole	0.984 "	25 mm	2.2 µF
Panasonic Industrial Automation Sales ECQ-UAAF225S1	Radial	AEC-Q200 X2	PC Pins	1.22 in	14.5 mm	31 mm	0.571 in	Metallized Polypropylene (PP)	20 %	275 V	Automotive EMI RFI Suppression	-40 °C	110 °C	27.5 mm	1.083 in	Through Hole	0.984 "	25 mm	2.2 µF
Panasonic Industrial Automation Sales ECQ-UAAF225TA	Radial	AEC-Q200 X2	PC Pins	1.22 in	14.5 mm	31 mm	0.571 in	Metallized Polypropylene (PP)	10 %	275 V	Automotive EMI RFI Suppression	-40 °C	110 °C	27.5 mm	1.083 in	Through Hole	0.984 "	25 mm	2.2 µF
