808 Series

Catalog

CONN DIP SOCKET SKT 8 POS 2.54MM SOLDER ST THRU-HOLE BOX/TUBE

Part	Contact Resistance	Termination Post Length	Termination Post Length	Material Flammability Rating	Current Rating (Amps)	Termination	Pitch - Post	Pitch - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Contact Finish - Mating	Contact Material - Post [custom]	Contact Material - Mating	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Pitch - Mating	Pitch - Mating	Housing Material	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [y]	Type	Type	Type

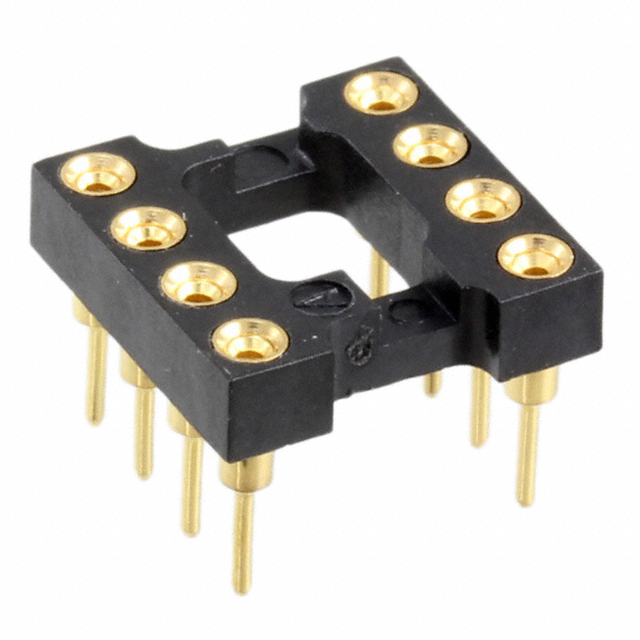

TE Connectivity AMP Connectors 808-AG10D	10 mOhm	0.125 in	3.18 mm	UL94 V-0	3 A	Solder	0.1 in	2.54 mm	0.127 µm	5 µin	Open Frame	Gold	Copper Alloy	Copper Alloy	Gold	-55 C	105 ░C	Through Hole	0.1 "	2.54 mm	Polyester	8	2	4	7.62 mm	0.3 in	DIP
TE Connectivity AMP Connectors 808-AG12D	10 mOhm	0.125 in	3.18 mm	UL94 V-0	3 A	Solder	0.1 in	2.54 mm			Open Frame	Tin-Lead	Copper Alloy	Copper Alloy	Tin-Lead	-55 C	105 ░C	Through Hole	0.1 "	2.54 mm	Polyester	8	2	4	7.62 mm	0.3 in	DIP
TE Connectivity AMP Connectors 808-AG11D	10 mOhm	0.125 in	3.18 mm	UL94 V-0		Solder	0.1 in	2.54 mm	2.03 µm	80 µin	Open Frame	Gold	Copper Alloy	Copper Alloy	Tin-Lead	-55 C	105 ░C	Through Hole	0.1 "	2.54 mm	Polyester	8	2	4	7.62 mm	0.3 in	DIP

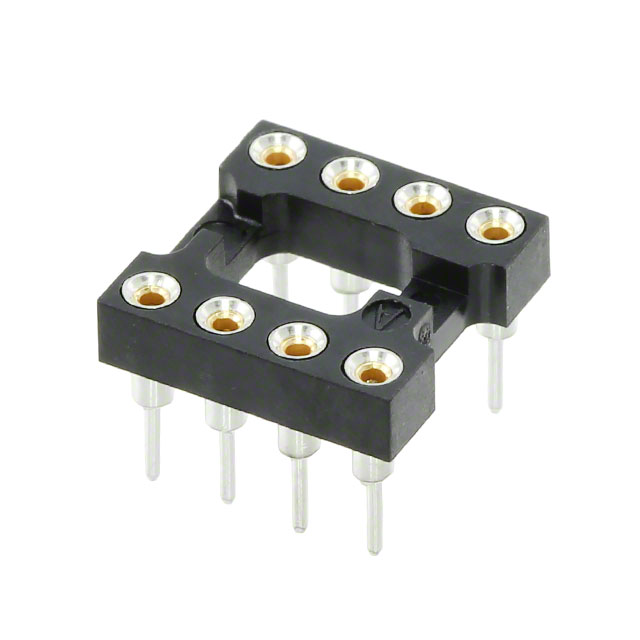

TE Connectivity AMP Connectors 808-AG11D-LF	10 mOhm	0.125 in	3.18 mm	UL94 V-0		Solder	0.1 in	2.54 mm	0.63 µm	25 µin	Open Frame	Gold	Copper	Beryllium Copper	Gold	-55 C	105 ░C	Through Hole	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	8	2	4	7.62 mm	0.3 in	DIP
