PSR500HTQFB0L10 Series

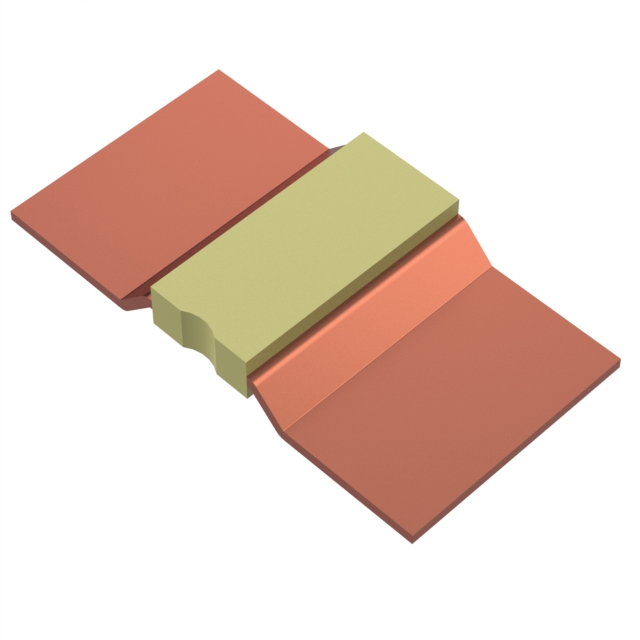

15x7.75 (5931) size, 15W, 0.1mΩ, High Power Type Metal Plate Shunt Resistor (AEC-Q200 Qualified)

Catalog

15x7.75 (5931) size, 15W, 0.1mΩ, High Power Type Metal Plate Shunt Resistor (AEC-Q200 Qualified)

Part	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Features	Temperature Coefficient [Max]	Temperature Coefficient [Min]	Package / Case	Resistance	Supplier Device Package	Power (Watts)	Composition	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Number of Terminations
Rohm Semiconductor PSR500HTQFB0L10	AEC-Q200	-65 ░C	347 °F	0.591 in	7.75 mm	0.305 in	15 mm	1 %	Automotive AEC-Q200 Current Sense	250 ppm/°C	150 ppm/°C	Nonstandard	0.1 mOhms	5931	15 W	Metal Element	2.11 mm	0.083 "	2

Catalog

15x7.75 (5931) size, 15W, 0.1mΩ, High Power Type Metal Plate Shunt Resistor (AEC-Q200 Qualified)

Key Features

• High power max 15W, Ultra low resistance range (0.1mΩ or more)., Excellent TCR characteristic, Convex structure, ROHM resistors have obtained ISO9001 / IATF16949 certification., Corresponds to AEC-Q200.

Description

PSR500 series is ideal for current detection under high current circuit.It is ideal for sets that require high power, such as in-vehicle, industrial equipment, and large household appliances. In addition to stable resistance values under overcurrent loads, these products are highly accurate and reliable, achieving excellent resistance temperature coefficient (TCR) even in the low resistance range.
