003927 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 3POS 2MM

Part	Shrouding	Number of Rows	Connector Type	Contact Shape	Insulation Height	Insulation Height	Insulation Material	Fastening Type	Pitch - Mating	Pitch - Mating	Termination	Number of Positions Loaded	Material Flammability Rating	Contact Finish - Post	Contact Type	Contact Material	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Number of Rows [custom]	Insulation Color	Overall Contact Length	Overall Contact Length	Number of Positions	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post
Molex 0039270034	Unshrouded	1	Header	Circular	3 mm	0.118 in	Nylon 6/6 Polyamide (PA66)	Push-Pull	0.079 "	2 mm	Press-Fit Solder	All	UL94 V-0	Tin	Male Pin	Brass	Right Angle Through Hole	0.122 in	3.1 mm	0.122 in	3.1 mm
Molex 0039271203
Molex 0039274102	Unshrouded		Header	Circular	1.8 mm	0.071 in	Polybutylene Terephthalate (PBT) Glass Filled	Push-Pull	0.1 "	2.54 mm	Solder	All	UL94 V-0	Tin	Male Pin		Through Hole	0.106 in	2.69 mm	0.177 in	4.5 mm	0.1 in	2.54 mm	Board to Board Cable	2	Black	0.354 "	9 mm	10
Molex 0039271163
Molex 0039271166

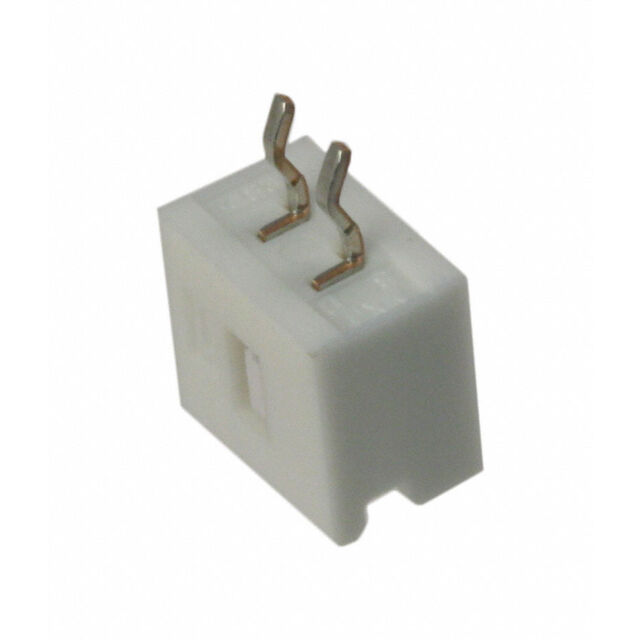

Molex 0039276023	Shrouded - 4 Wall	1	Header	Square	6.8 mm	0.268 in	Polybutylene Terephthalate (PBTP)	Friction Lock	0.098 in	2.5 mm	Kinked Pin Solder	All	UL94 V-0	Tin	Male Pin	Phosphor Bronze	Through Hole				4.2 mm			Board to Cable/Wire		Natural	0.356 in	9.05 mm	2	0.165 in	0.132 in	3.35 mm
Molex 0039274162	Unshrouded		Header	Circular	1.8 mm	0.071 in	Polybutylene Terephthalate (PBT) Glass Filled	Push-Pull	0.1 "	2.54 mm	Solder	All	UL94 V-0	Tin	Male Pin		Through Hole	0.106 in	2.69 mm	0.177 in	4.5 mm	0.1 in	2.54 mm	Board to Board Cable	2	Black	0.354 "	9 mm	16
Molex 0039271263
Molex 0039271143
Molex 0039271206
