178496 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

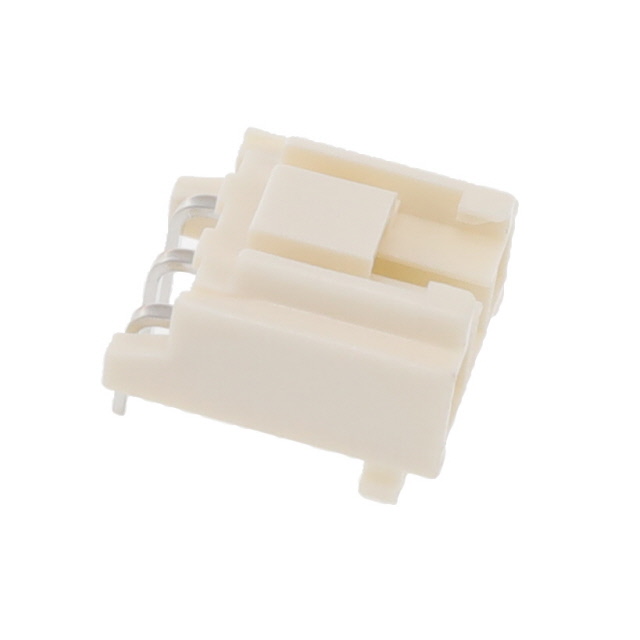

UNIV. POWER HDR H ASSY 3P NAT. ROHS COMPLIANT: YES
| Part | Applications | Contact Finish - Post | Contact Material | Pitch - Mating | Pitch - Mating | Insulation Material | Insulation Color | Fastening Type | Current Rating (Amps) | Contact Shape | Number of Positions Loaded | Connector Type | Contact Type | Style | Insulation Height | Insulation Height | Contact Length - Post [x] | Contact Length - Post [x] | Number of Rows | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Material Flammability Rating | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | General Purpose | Tin | Brass | 0.156 in | 3.96 mm | Polyamide (PA66) Nylon 6/6 Glass Filled | Natural | Locking Ramp | Varies by Wire Gauge | Rectangular | All | Header | Tab | Board to Cable/Wire | 9.55 mm | 0.376 in | 0.15 in | 3.81 mm | 1 | Solder | -30 ░C | 105 ░C | Through Hole Right Angle | UL94 V-0 | Shrouded - 4 Wall |
