Triple Buck + LDO Power Management IC (PMIC)
Key Features

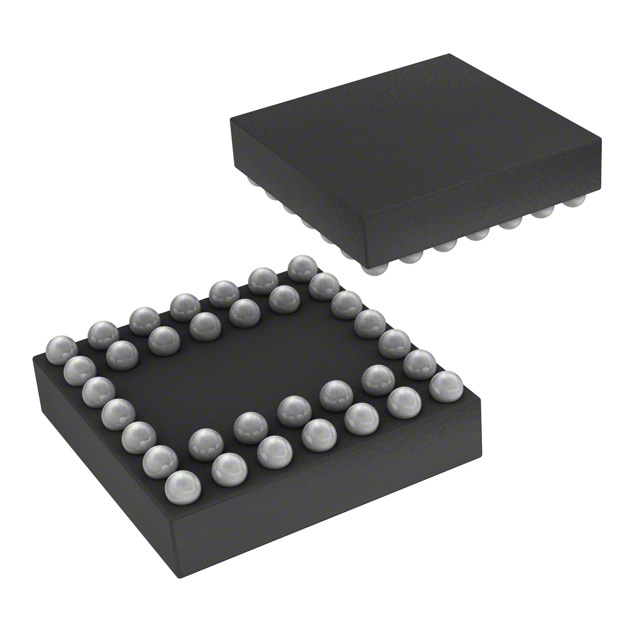

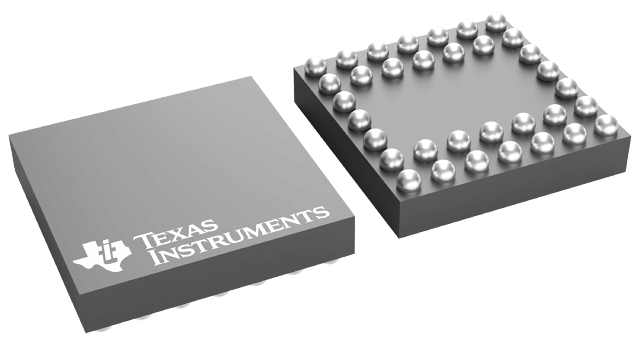

• Three Highly Efficient Programmable Buck RegulatorsIntegrated FETs with Low RDS-ONBucks Operate with their Phases Shifted to Reduce the Input Current Ripple and Capacitor SizeProgrammable Output Voltage via the SPI InterfaceOver and Under-Voltage-LockoutAutomatic Internal Soft Start with Power-On ResetCurrent Overload and Thermal Shutdown ProtectionPFM Mode for High Efficiency at Light Load ConditionsLow-Dropout Regulator 2.5 V, 250mAHardware ENABLE and PWR_OK TerminalFast Start-up for All Voltage Rails in about 3.5ms to PWR_OKFast Turn-off / Active Discharge on Regulator OutputsProgrammable Buck Regulators:Buck 1: 0.9 – 3.4 V; 1.6ABuck 2: 0.9 – 3.4 V; 1ABuck 3: 0.865 – 1.5 V; 1A±3% Feedback Voltage AccuracyUp to 95% efficient Buck Regulators2MHz Switching Frequency for Smaller Inductor Size2.8 × 2.8 mm, 0.4 mm pitch, 34-bump µSMD PackageThree Highly Efficient Programmable Buck RegulatorsIntegrated FETs with Low RDS-ONBucks Operate with their Phases Shifted to Reduce the Input Current Ripple and Capacitor SizeProgrammable Output Voltage via the SPI InterfaceOver and Under-Voltage-LockoutAutomatic Internal Soft Start with Power-On ResetCurrent Overload and Thermal Shutdown ProtectionPFM Mode for High Efficiency at Light Load ConditionsLow-Dropout Regulator 2.5 V, 250mAHardware ENABLE and PWR_OK TerminalFast Start-up for All Voltage Rails in about 3.5ms to PWR_OKFast Turn-off / Active Discharge on Regulator OutputsProgrammable Buck Regulators:Buck 1: 0.9 – 3.4 V; 1.6ABuck 2: 0.9 – 3.4 V; 1ABuck 3: 0.865 – 1.5 V; 1A±3% Feedback Voltage AccuracyUp to 95% efficient Buck Regulators2MHz Switching Frequency for Smaller Inductor Size2.8 × 2.8 mm, 0.4 mm pitch, 34-bump µSMD Package
Description
AI
The LM10507 is an advanced PMU containing three configurable, high-efficiency buck regulators for supplying variable voltages. The device is ideal for supporting ASIC and SOC designs for Solid-State and Flash drives.
LM10507 operates cooperatively with ASIC to optimize the supply voltage for low power conditions and power saving modes via SPI interface. It also supports a 2.5 V 250 mA LDO.
The LM10507 is an advanced PMU containing three configurable, high-efficiency buck regulators for supplying variable voltages. The device is ideal for supporting ASIC and SOC designs for Solid-State and Flash drives.
LM10507 operates cooperatively with ASIC to optimize the supply voltage for low power conditions and power saving modes via SPI interface. It also supports a 2.5 V 250 mA LDO.
