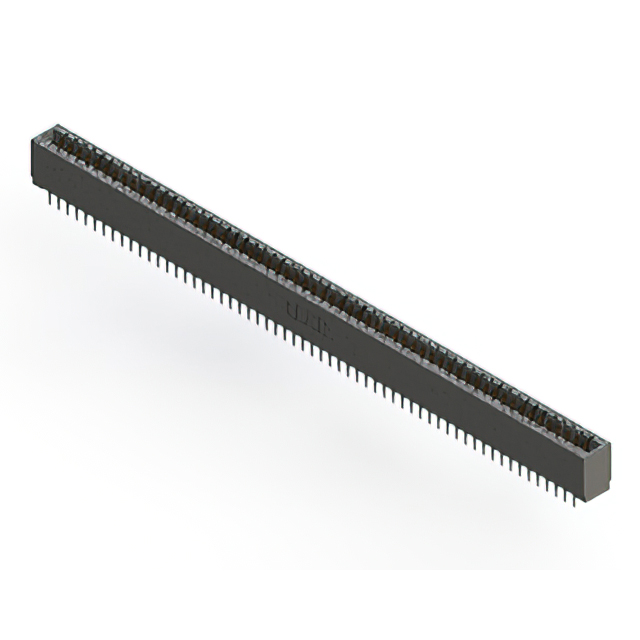

726-118 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FML 118POS 0.125
| Part | Termination Rows [custom] | Material - Insulation | Number of Positions/Bay/Row [custom] | Gender | Pitch | Pitch | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Finish | Contact Material | Number of Rows [custom] | Mounting Type | Color | Number of Positions | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Read Out | Card Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | 59 | Female | 3.18 mm | 0.125 in | -40 C | 105 ░C | Press-Fit | Gold | Copper Alloy | 2 | Through Hole | Black | 118 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 30 Áin | 0.76 Ám | Dual | Non Specified - Dual Edge |
 EDAC Inc. | 2 | Polyester Thermoplastic | 59 | Female | 3.18 mm | 0.125 in | -40 C | 105 ░C | Press-Fit | Gold | Copper Alloy | 2 | Through Hole | Black | 118 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 30 Áin | 0.76 Ám | Dual | Non Specified - Dual Edge |
