M80-666 Series

Catalog

PIN HEADER, PCB HEADER, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 2 ROWS, 12 CONTACTS, SURFACE MOUNT

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Fastening Type	Contact Finish - Mating	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Pitch - Mating	Pitch - Mating	Insulation Color	Number of Positions Loaded	Current Rating (Amps)	Mounting Type	Voltage Rating	Termination	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]	Features	Contact Type	Shrouding	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Connector Type	Insulation Material	Number of Positions	Style	Contact Finish - Post	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]
Harwin Inc. M80-6661222	29.5 Áin	0.75 Ám	-55 C	125 °C	118.1 Áin	3 Ám	UL94 V-0	Latch Lock	Gold	Circular	2 mm	0.079 in	Brass	0.079 "	2 mm	Black	All	2.2 A	Right Angle Surface Mount	800 V	Solder	2	0.235 in	5.97 mm	Strain Relief Clips	Male Pin	Shrouded - 4 Wall	29.5 µin	0.75 µm	Header	Polyphenylene Sulfide (PPS) Glass Filled	12	Board to Board Cable	Tin-Lead
Harwin Inc. M80-6661642			-55 C	125 °C			UL94 V-0	Latch Lock	Gold	Circular	2 mm	0.079 in	Brass	0.079 "	2 mm	Black	All	2.2 A	Right Angle Surface Mount	800 V	Solder	2	0.235 in	5.97 mm	Strain Relief Clips	Male Pin	Shrouded - 4 Wall	29.5 µin	0.75 µm	Header	Polyphenylene Sulfide (PPS) Glass Filled	16	Board to Board Cable	Tin	118.1 µin	3 µm

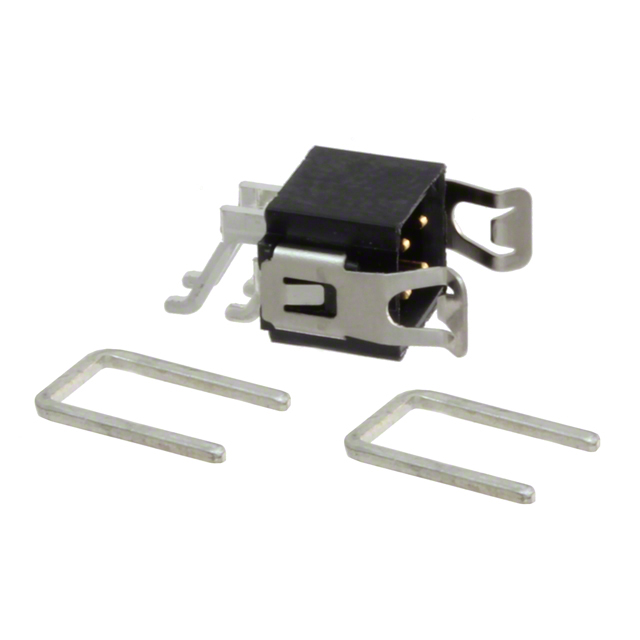

Harwin Inc. M80-6660442			-55 C	125 °C			UL94 V-0	Latch Lock	Gold	Circular	2 mm	0.079 in	Brass	0.079 "	2 mm	Black	All	2.2 A	Right Angle Surface Mount	800 V	Solder	2	0.235 in	5.97 mm	Strain Relief Clips	Male Pin	Shrouded - 4 Wall	29.5 µin	0.75 µm	Header	Polyphenylene Sulfide (PPS) Glass Filled	4	Board to Board Cable	Tin	118.1 µin	3 µm
Harwin Inc. M80-6660622			-55 C	125 °C			UL94 V-0	Latch Lock	Gold	Circular	2 mm	0.079 in	Brass	0.079 "	2 mm	Black	All	2.2 A	Right Angle Surface Mount	800 V	Solder	2	0.235 in	5.97 mm	Strain Relief Clips	Male Pin	Shrouded - 4 Wall	29.5 µin	0.75 µm	Header	Polyphenylene Sulfide (PPS) Glass Filled	6	Board to Board Cable	Tin-Lead	118.1 µin	3 µm

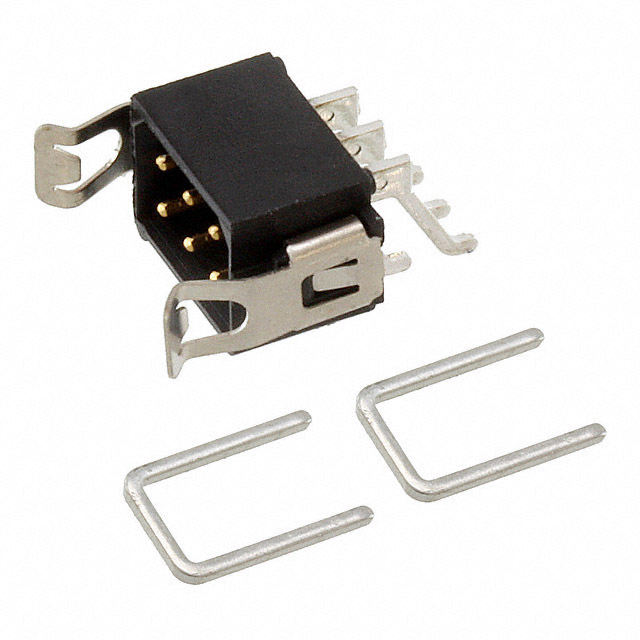

Harwin Inc. M80-6660642			-55 C	125 °C			UL94 V-0	Latch Lock	Gold	Circular	2 mm	0.079 in	Brass	0.079 "	2 mm	Black	All	2.2 A	Right Angle Surface Mount	800 V	Solder	2	0.235 in	5.97 mm	Strain Relief Clips	Male Pin	Shrouded - 4 Wall	29.5 µin	0.75 µm	Header	Polyphenylene Sulfide (PPS) Glass Filled	6	Board to Board Cable	Tin	118.1 µin	3 µm
Harwin Inc. M80-6660422			-55 C	125 °C			UL94 V-0	Latch Lock	Gold	Circular	2 mm	0.079 in	Brass	0.079 "	2 mm	Black	All	2.2 A	Right Angle Surface Mount	800 V	Solder	2	0.235 in	5.97 mm	Strain Relief Clips	Male Pin	Shrouded - 4 Wall	29.5 µin	0.75 µm	Header	Polyphenylene Sulfide (PPS) Glass Filled	4	Board to Board Cable	Tin-Lead	118.1 µin	3 µm
Harwin Inc. M80-6660822			-55 C	125 °C			UL94 V-0	Latch Lock	Gold	Circular	2 mm	0.079 in	Brass	0.079 "	2 mm	Black	All	2.2 A	Right Angle Surface Mount	800 V	Solder	2	0.235 in	5.97 mm	Strain Relief Clips	Male Pin	Shrouded - 4 Wall	29.5 µin	0.75 µm	Header	Polyphenylene Sulfide (PPS) Glass Filled	8	Board to Board Cable	Tin-Lead	118.1 µin	3 µm

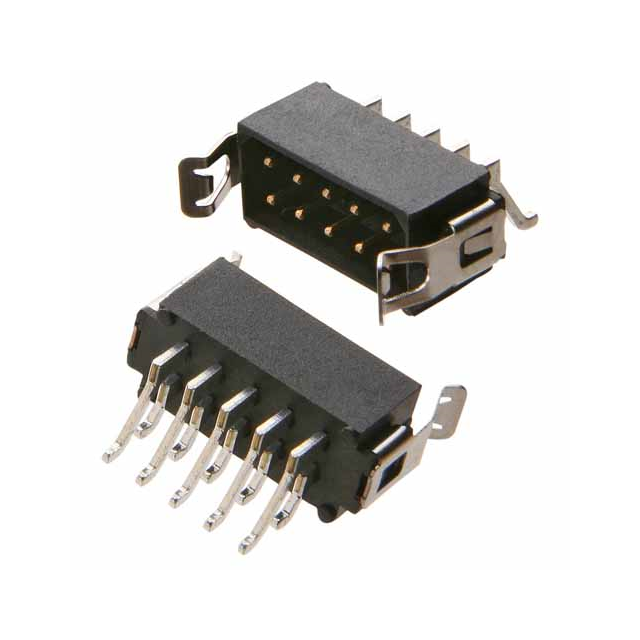

Harwin Inc. M80-6661842			-55 C	125 °C			UL94 V-0	Latch Lock	Gold	Circular	2 mm	0.079 in	Brass	0.079 "	2 mm	Black	All	2.2 A	Right Angle Surface Mount	800 V	Solder	2	0.235 in	5.97 mm	Strain Relief Clips	Male Pin	Shrouded - 4 Wall	29.5 µin	0.75 µm	Header	Polyphenylene Sulfide (PPS) Glass Filled	18	Board to Board Cable	Tin	118.1 µin	3 µm
Harwin Inc. M80-6662022			-55 C	125 °C			UL94 V-0	Latch Lock	Gold	Circular	2 mm	0.079 in	Brass	0.079 "	2 mm	Black	All	2.2 A	Right Angle Surface Mount	800 V	Solder	2	0.235 in	5.97 mm	Strain Relief Clips	Male Pin	Shrouded - 4 Wall	29.5 µin	0.75 µm	Header	Polyphenylene Sulfide (PPS) Glass Filled	20	Board to Board Cable	Tin-Lead	118.1 µin	3 µm
Harwin Inc. M80-6661422			-55 C	125 °C			UL94 V-0	Latch Lock	Gold	Circular	2 mm	0.079 in	Brass	0.079 "	2 mm	Black	All	2.2 A	Right Angle Surface Mount	800 V	Solder	2	0.235 in	5.97 mm	Strain Relief Clips	Male Pin	Shrouded - 4 Wall	29.5 µin	0.75 µm	Header	Polyphenylene Sulfide (PPS) Glass Filled	14	Board to Board Cable	Tin-Lead	118.1 µin	3 µm
