1734709 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN HEADER SMD R/A 15POS 1MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Applications | Contact Finish - Post | Connector Type | Number of Positions Loaded | Contact Type | Pitch - Mating | Pitch - Mating | Termination | Features | Insulation Color | Contact Material | Number of Positions | Mounting Type | Contact Shape | Voltage Rating | Number of Rows | Style | Insulation Height | Insulation Height | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

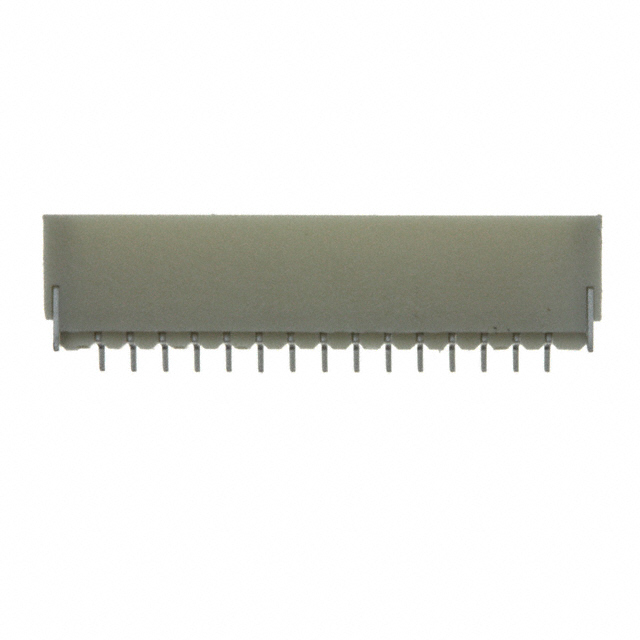

 TE Connectivity AMP Connectors | 120 Áin | 3.05 Ám | Automotive General Purpose Industrial Medical | Tin | Header | All | Male Pin | 1 mm | 0.039 in | Solder | Solder Retention | Natural | Phosphor Bronze | 15 | Right Angle Surface Mount | Square | 50 V | 1 | Board to Cable/Wire | 0.114 in | 2.9 mm | UL94 V-0 | 120 µin | 3.05 µm | Shrouded - 4 Wall | -55 C | 105 ░C |
 TE Connectivity AMP Connectors | 120 Áin | 3.05 Ám | Automotive General Purpose Industrial Medical | Tin | Header | All | Male Pin | 1 mm | 0.039 in | Solder | Solder Retention | Natural | Phosphor Bronze | 13 | Right Angle Surface Mount | Square | 50 V | 1 | Board to Cable/Wire | 0.114 in | 2.9 mm | UL94 V-0 | 120 µin | 3.05 µm | Shrouded - 4 Wall | -55 C | 105 ░C |

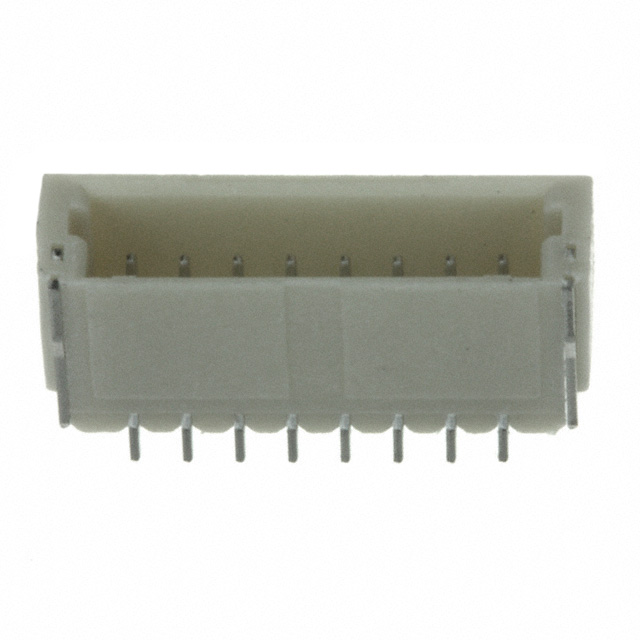

 TE Connectivity AMP Connectors | 120 Áin | 3.05 Ám | Automotive General Purpose Industrial Medical | Tin | Header | All | Male Pin | 1 mm | 0.039 in | Solder | Solder Retention | Natural | Phosphor Bronze | 8 | Right Angle Surface Mount | Square | 50 V | 1 | Board to Cable/Wire | 0.114 in | 2.9 mm | UL94 V-0 | 120 µin | 3.05 µm | Shrouded - 4 Wall | -55 C | 105 ░C |

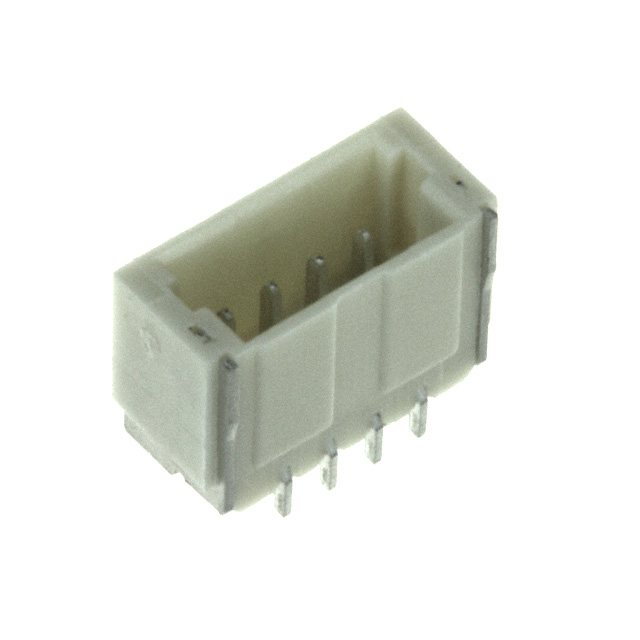

 TE Connectivity AMP Connectors | 120 Áin | 3.05 Ám | Automotive General Purpose Industrial Medical | Tin | Header | All | Male Pin | 1 mm | 0.039 in | Solder | Solder Retention | Natural | Phosphor Bronze | 4 | Right Angle Surface Mount | Square | 50 V | 1 | Board to Cable/Wire | 0.114 in | 2.9 mm | UL94 V-0 | 120 µin | 3.05 µm | Shrouded - 4 Wall | -55 C | 105 ░C |
 TE Connectivity AMP Connectors | 120 Áin | 3.05 Ám | Automotive General Purpose Industrial Medical | Tin | Header | All | Male Pin | 1 mm | 0.039 in | Solder | Solder Retention | Natural | Phosphor Bronze | 5 | Right Angle Surface Mount | Square | 50 V | 1 | Board to Cable/Wire | 0.114 in | 2.9 mm | UL94 V-0 | 120 µin | 3.05 µm | Shrouded - 4 Wall | -55 C | 105 ░C |
