CC-1-3047 Series

Catalog

PMI DIA .319" (8.10MM) GREEN 24V

Part	Voltage	Lens Style	Current	Lamp Color	Ratings	Type	Wavelength - Peak	Lens Size	Lens Size	Millicandela Rating	Termination Style	Lens Color	Panel Cutout Shape	Panel Cutout Dimensions	Panel Cutout Dimensions	Viewing Angle

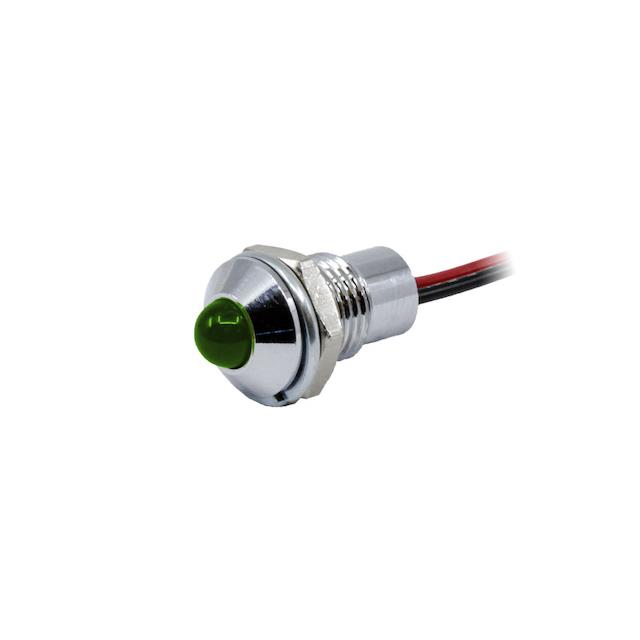

Visual Communications Company - VCC CC-1-3047-9910-I	3.2 V 24 V	Round with Domed Top	20 mA	Green	DC	LED	520 nm	5 mm	T-1 3/4	5490 mcd	Wire Leads - 6.000" (152.40mm)	Green	Round	0.32 "	8.1 mm	20 °
Visual Communications Company - VCC CC-1-3047-9912-I	3.2 V 48 V	Round with Domed Top	20 mA	Green	DC	LED	520 nm	5 mm	T-1 3/4	5490 mcd	Wire Leads - 6.000" (152.40mm)	Green	Round	0.32 "	8.1 mm	20 °
Visual Communications Company - VCC CC-1-3047-9920-I	3.2 V 120 V	Round with Domed Top	20 mA	Green	AC	LED	520 nm	5 mm	T-1 3/4	5490 mcd	Wire Leads - 6.000" (152.40mm)	Green	Round	0.32 "	8.1 mm	20 °
Visual Communications Company - VCC CC-1-3047-9914-I	3.2 V 60 V	Round with Domed Top	20 mA	Green	DC	LED	520 nm	5 mm	T-1 3/4	5490 mcd	Wire Leads - 6.000" (152.40mm)	Green	Round	0.32 "	8.1 mm	20 °
Visual Communications Company - VCC CC-1-3047-0000-I	3.2 V	Round with Domed Top	20 mA	Green		LED	520 nm	5 mm	T-1 3/4	5490 mcd	Wire Leads - 6.000" (152.40mm)	Green	Round	0.32 "	8.1 mm	20 °
