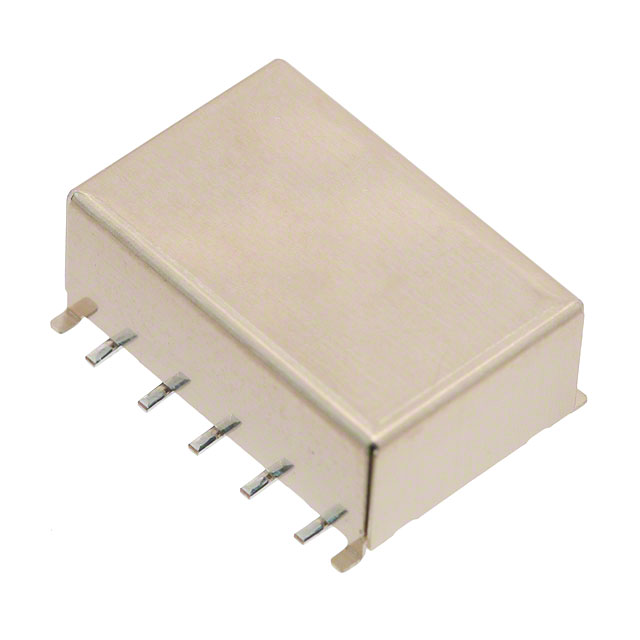

ARA210 Series

Catalog

RELAY RF DPDT 1A 4.5V

Part	Mounting Type	Coil Type	Contact Material	Coil Power	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating (Current)	Contact Form	Operate Time	Coil Resistance	Coil Voltage	Coil Current	Release Time	Must Operate Voltage	Switching Voltage	Termination Style	Load - Max Switching [Max]	Relay Type
Panasonic Electric Works ARA210A4HX	Surface Mount	Latching Single Coil	Gold (Au) Silver Palladium (AgPd)	70 mW	85 °C	-40 °C	1 A	DPDT (2 Form C)	4 ms	289.3 Ohms	4.5 VDC	15.6 mA	4 ms	3.38 VDC	30 VDC	Gull Wing
Panasonic Electric Works ARA210A12	Surface Mount	Latching Single Coil	Gold (Au) Silver Palladium (AgPd)	70 mW	85 °C	-40 °C	1 A	DPDT (2 Form C)	4 ms	2.06 kOhms	12 VDC	5.8 mA	4 ms	9 VDC	30 VDC	Gull Wing
Panasonic Electric Works ARA210A03Z	Surface Mount	Latching Single Coil	Gold (Au) Silver Palladium (AgPd)	70 mW	85 °C	-40 °C	1 A	DPDT (2 Form C)	4 ms	128.6 Ohms		23.3 mA	4 ms	2.25 VDC	30 VDC	Gull Wing
Panasonic Electric Works ARA210A24Z	Surface Mount	Latching Single Coil	Gold (Au) Silver Palladium (AgPd)	100 mW	85 °C	-40 °C	1 A	DPDT (2 Form C)	4 ms	5.76 kOhms	24 VDC	4.2 mA	4 ms	18 VDC	30 VDC	Gull Wing
Panasonic Electric Works ARA210A09Z	Surface Mount	Latching Single Coil	Gold (Au) Silver Palladium (AgPd)	70 mW	85 °C	-40 °C	1 A	DPDT (2 Form C)	4 ms	1.157 kOhms	9 VDC	7.8 mA	4 ms	6.75 VDC	30 VDC	Gull Wing
Panasonic Electric Works ARA210A24	Surface Mount	Latching Single Coil	Gold (Au) Silver Palladium (AgPd)	100 mW	85 °C	-40 °C	1 A	DPDT (2 Form C)	4 ms	5.76 kOhms	24 VDC	4.2 mA	4 ms	18 VDC	30 VDC	Gull Wing
Panasonic Electric Works ARA210A09X	Surface Mount	Latching Single Coil	Gold (Au) Silver Palladium (AgPd)	70 mW	85 °C	-40 °C	1 A	DPDT (2 Form C)	4 ms	1.157 kOhms	9 VDC	7.8 mA	4 ms	6.75 VDC	30 VDC	Gull Wing
Panasonic Electric Works ARA210A1H	Surface Mount	Latching Single Coil	Silver (Ag)				1 A	DPDT (2 Form C)		40 Ohms	1.5 VDC	46.9 mA		1.13 VDC	30 VDC	Gull Wing	30 W	RF
Panasonic Electric Works ARA210A4HZ	Surface Mount	Latching Single Coil	Gold (Au) Silver Palladium (AgPd)	70 mW	85 °C	-40 °C	1 A	DPDT (2 Form C)	4 ms	289.3 Ohms	4.5 VDC	15.6 mA	4 ms	3.38 VDC	30 VDC	Gull Wing
Panasonic Electric Works ARA210A03	Surface Mount	Latching Single Coil	Gold (Au) Silver Palladium (AgPd)	70 mW	85 °C	-40 °C	1 A	DPDT (2 Form C)	4 ms	129 Ohms		23.3 mA	4 ms	2.25 VDC	30 VDC	Gull Wing
