V24C48 Series

Catalog

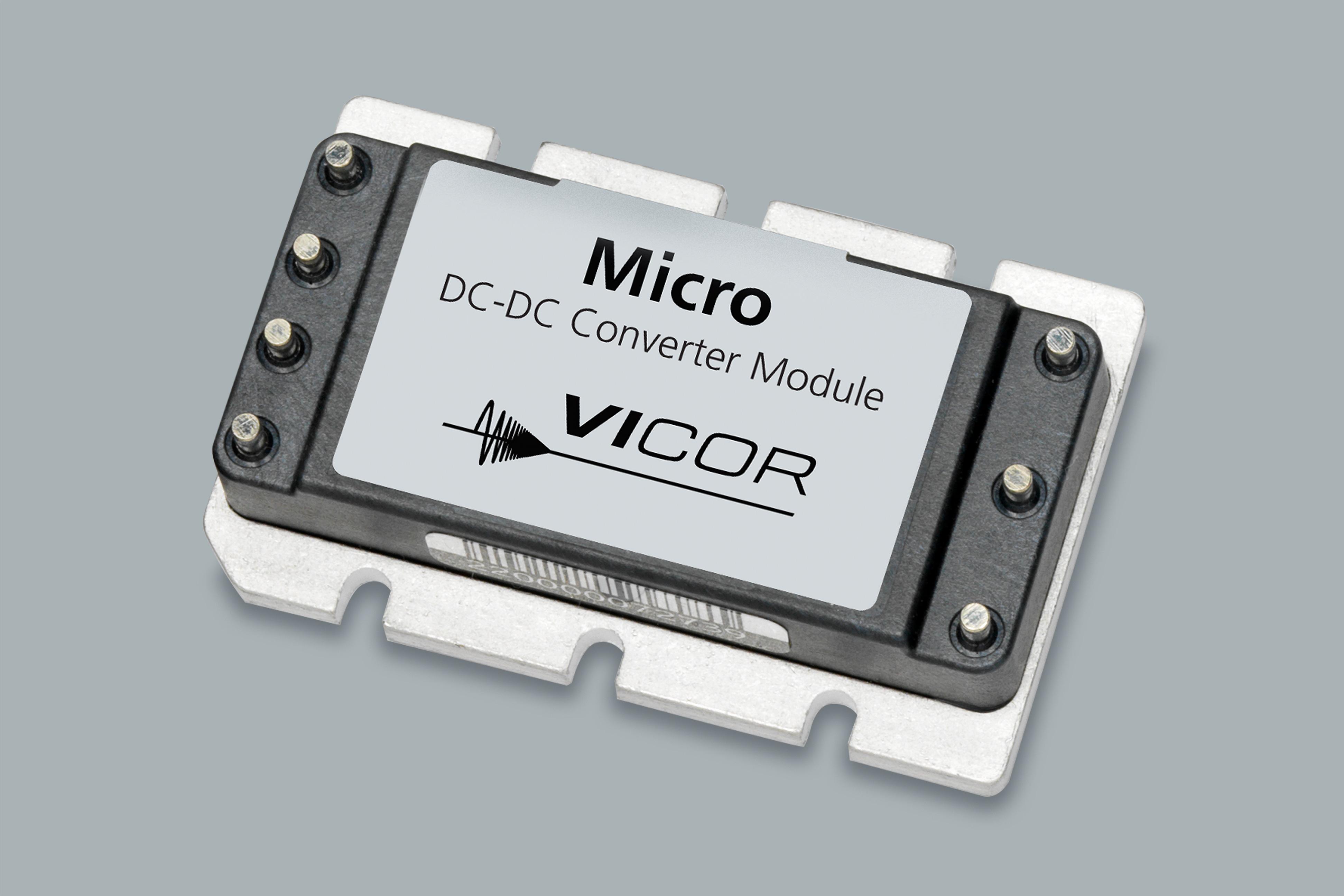

DC DC CONVERTER 48V 50W

Part	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Applications	Mounting Type	Number of Outputs	Features	Voltage - Output 1	Power (Watts)	Efficiency	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Isolation	Type
Vicor Corporation V24C48M50BS2	36 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	100 °C	-55 °C	Quarter Brick	ITE (Commercial)	Through Hole	1	OVP UVLO	48 V	50 W	87.2 %	1.04 A	18 V	3000 V	Isolated Module
Vicor Corporation V24C48M100BN	36 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	100 °C	-55 °C	Quarter Brick	ITE (Commercial)	Through Hole	1	OVP UVLO	48 V	100 W	87.7 %	2.08 A	18 V	3000 V	Isolated Module
Vicor Corporation V24C48C100BN2	36 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	100 °C	-20 C	Quarter Brick	ITE (Commercial)	Through Hole	1	OVP UVLO	48 V	100 W	87.7 %	2.08 A	18 V	3000 V	Isolated Module
Vicor Corporation V24C48T50BN	36 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	100 °C	-40 °C	Quarter Brick	ITE (Commercial)	Through Hole	1	OVP UVLO	48 V	50 W	87.2 %	1.04 A	18 V	3000 V	Isolated Module
Vicor Corporation V24C48T100BS	36 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	100 °C	-40 °C	Quarter Brick	ITE (Commercial)	Through Hole	1	OVP UVLO	48 V	100 W	87.7 %	2.08 A	18 V	3000 V	Isolated Module
Vicor Corporation V24C48T100BN	36 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	100 °C	-40 °C	Quarter Brick	ITE (Commercial)	Through Hole	1	OVP UVLO	48 V	100 W	87.7 %	2.08 A	18 V	3000 V	Isolated Module
Vicor Corporation V24C48C100BS	36 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	100 °C	-20 C	Quarter Brick	ITE (Commercial)	Through Hole	1	OVP UVLO	48 V	100 W	87.7 %	2.08 A	18 V	3000 V	Isolated Module
Vicor Corporation V24C48H100BN	36 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	100 °C	-40 °C	Quarter Brick	ITE (Commercial)	Through Hole	1	OVP UVLO	48 V	100 W	87.7 %	2.08 A	18 V	3000 V	Isolated Module
Vicor Corporation V24C48C100BN	36 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	100 °C	-20 C	Quarter Brick	ITE (Commercial)	Through Hole	1	OVP UVLO	48 V	100 W	87.7 %	2.08 A	18 V	3000 V	Isolated Module
Vicor Corporation V24C48T100BN3	36 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	100 °C	-40 °C	Quarter Brick	ITE (Commercial)	Through Hole	1	OVP UVLO	48 V	100 W	87.7 %	2.08 A	18 V	3000 V	Isolated Module
