0814-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth [z]	Socket Depth [z]	Contact Finish Thickness	Contact Finish Thickness	Length - Overall	Length - Overall	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Type	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Material	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Finish	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Termination

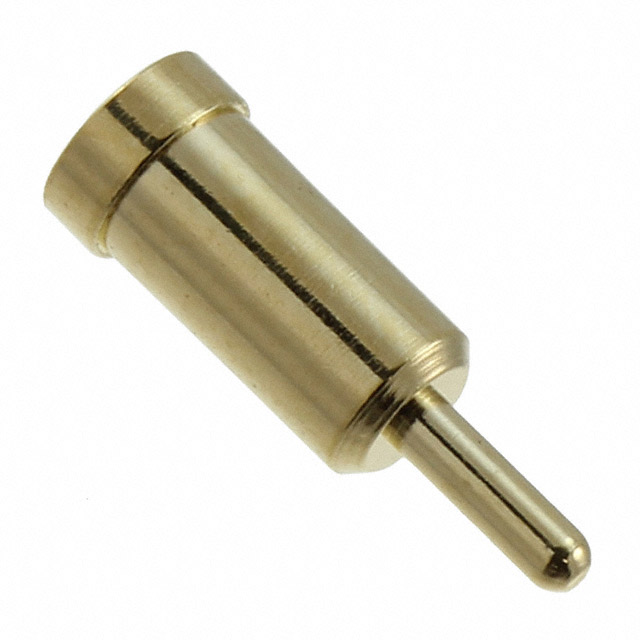

Mill-Max Manufacturing Corp. 0814-0-15-80-34-14-04-0	-55 C	125 °C	0.09 in	2.29 mm	3.81 mm	0.15 in	0.25 Ám	10 Áin	0.28 in	7.11 mm	2.08 mm	0.082 in	Standard Tail	1.17 mm	0.81 mm	0.046 "	0.032 "	Beryllium Copper	0.03 in	0.76 mm	Gold	1.63 mm	0.064 in	Solder

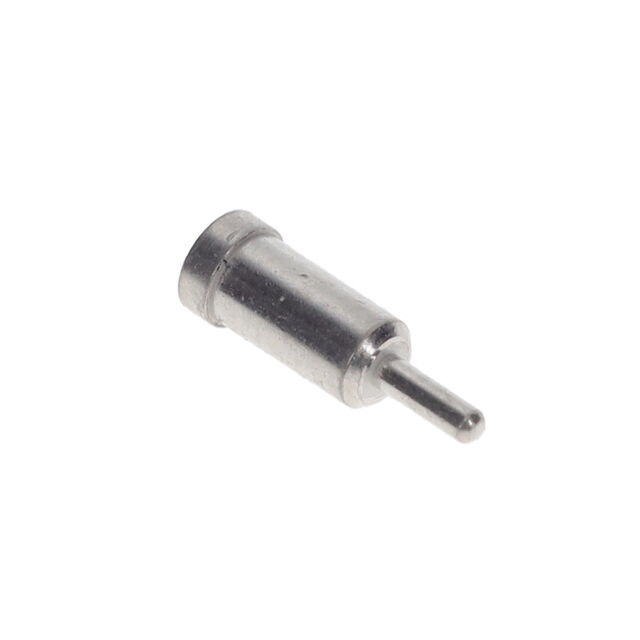

Mill-Max Manufacturing Corp. 0814-0-15-80-34-80-04-0	-55 C	125 °C	0.09 in	2.29 mm	3.81 mm	0.15 in	5.08 Ám	200 Áin	0.28 in	7.11 mm	2.08 mm	0.082 in	Standard Tail	1.17 mm	0.81 mm	0.046 "	0.032 "	Beryllium Copper	0.03 in	0.76 mm	Tin	1.63 mm	0.064 in	Solder
Mill-Max Manufacturing Corp. 0814-0-15-01-34-14-04-0	-55 C	125 °C	0.09 in	2.29 mm	3.81 mm	0.15 in	0.25 Ám	10 Áin	0.28 in	7.11 mm	2.08 mm	0.082 in	Standard Tail	1.17 mm	0.81 mm	0.046 "	0.032 "	Beryllium Copper	0.03 in	0.76 mm	Gold	1.63 mm	0.064 in	Solder

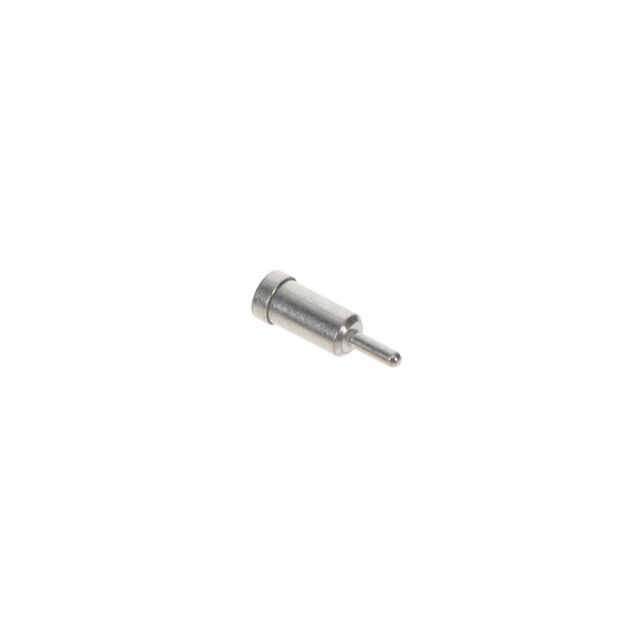

Mill-Max Manufacturing Corp. 0814-0-15-01-34-01-04-0	-55 C	125 °C	0.09 in	2.29 mm	3.81 mm	0.15 in	5.08 Ám	200 Áin	0.28 in	7.11 mm	2.08 mm	0.082 in	Standard Tail	1.17 mm	0.81 mm	0.046 "	0.032 "	Beryllium Copper	0.03 in	0.76 mm	Tin-Lead	1.63 mm	0.064 in	Solder
Mill-Max Manufacturing Corp. 0814-0-15-15-34-27-04-0	-55 C	125 °C	0.09 in	2.29 mm	3.81 mm	0.15 in	0.76 Ám	30 Áin	0.28 in	7.11 mm	2.08 mm	0.082 in	Standard Tail	1.17 mm	0.81 mm	0.046 "	0.032 "	Beryllium Copper	0.03 in	0.76 mm	Gold	1.63 mm	0.064 in	Solder
Mill-Max Manufacturing Corp. 0814-0-15-01-34-27-04-0	-55 C	125 °C	0.09 in	2.29 mm	3.81 mm	0.15 in	0.76 Ám	30 Áin	0.28 in	7.11 mm	2.08 mm	0.082 in	Standard Tail	1.17 mm	0.81 mm	0.046 "	0.032 "	Beryllium Copper	0.03 in	0.76 mm	Gold	1.63 mm	0.064 in	Solder
Mill-Max Manufacturing Corp. 0814-0-15-80-34-27-04-0	-55 C	125 °C	0.09 in	2.29 mm	3.81 mm	0.15 in	0.76 Ám	30 Áin	0.28 in	7.11 mm	2.08 mm	0.082 in	Standard Tail	1.17 mm	0.81 mm	0.046 "	0.032 "	Beryllium Copper	0.03 in	0.76 mm	Gold	1.63 mm	0.064 in	Solder
