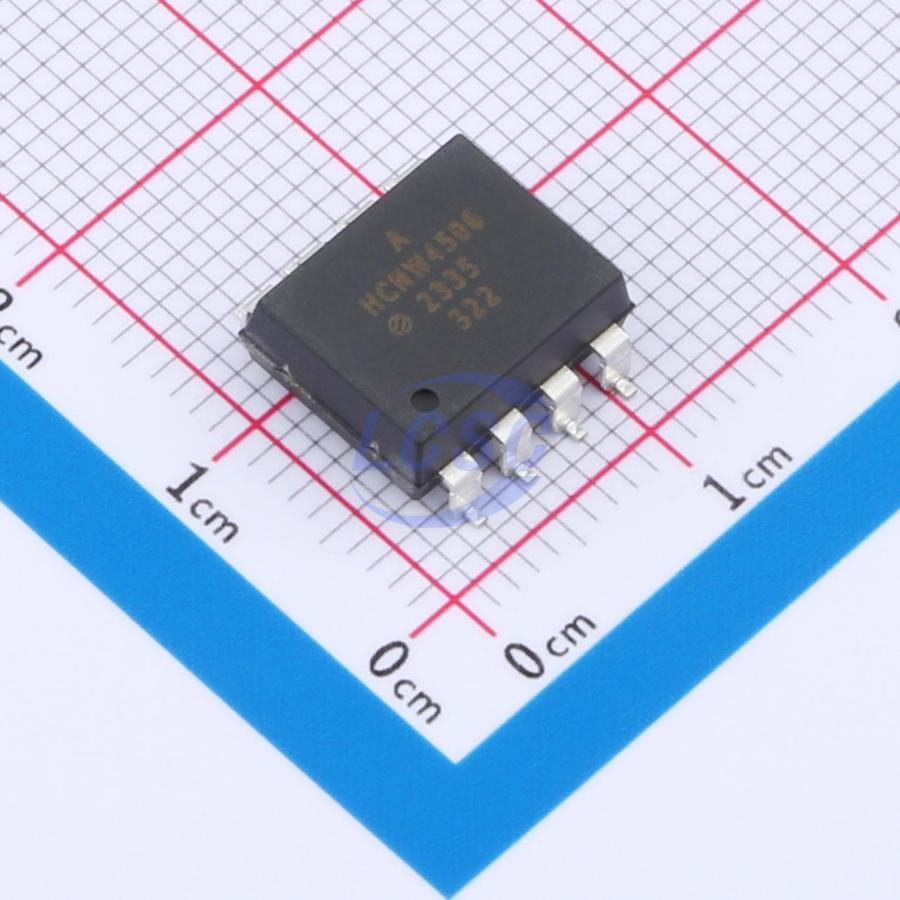

HCNW4506 Series

Catalog

OPTOISO 5KV OPEN COLL 8DIP GW

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Number of Channels [custom]	Current - Output / Channel	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max) [Max]	Common Mode Transient Immunity (Min) [Min]	Inputs - Side 1/Side 2 [custom]	Mounting Type	Output Type	Package / Case
Broadcom Limited HCNW4506#500	30 VDC	4.5 V	8-DIP Gull Wing	1	15 mA	400 ns	550 ns	-40 C	100 °C	DC	1.6 V	25 mA	15 kV/µs	1	Surface Mount	Open Collector Schottky Clamped
Broadcom Limited HCNW4506-300E	30 VDC	4.5 V	8-DIP Gull Wing	1	15 mA	400 ns	550 ns	-40 C	100 °C	DC	1.6 V	25 mA	15 kV/µs	1	Surface Mount	Open Collector Schottky Clamped
Broadcom Limited HCNW4506-500E	30 VDC	4.5 V	8-DIP Gull Wing	1	15 mA	400 ns	550 ns	-40 C	100 °C	DC	1.6 V	25 mA	15 kV/µs	1	Surface Mount	Open Collector Schottky Clamped
Broadcom Limited HCNW4506	30 VDC	4.5 V	8-DIP	1	15 mA	400 ns	550 ns	-40 C	100 °C	DC	1.6 V	25 mA	15 kV/µs	1	Through Hole	Open Collector Schottky Clamped	8-DIP (0.400" 10.16mm)
