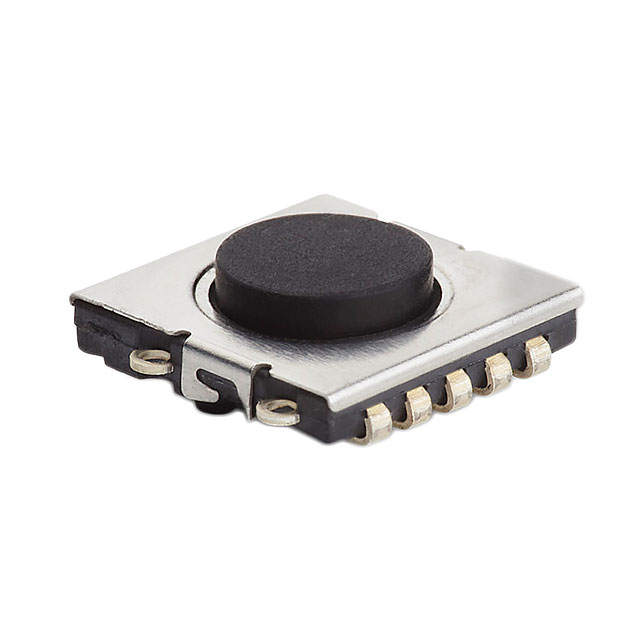

6CJ1NO Series
Manufacturer: MEC Switches
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 24V
| Part | Mechanical Life | Actuator Material | Switch Travel | Actuator Type | Operating Force | Actuator Height off PCB, Vertical [z] | Actuator Orientation | Contact Rating @ Voltage | Termination Style | Mounting Type | Ingress Protection | Illumination | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Outline [x] | Outline [y] | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEC Switches | 3000000 Cycles | Silicone Rubber | 0.3 mm | Plunger for Cap | 370 gf | 2.5 mm | Top Actuated | 0.05 A 24 VDC | J Lead | Surface Mount | IP67 - Dust Tight Waterproof | Non-Illuminated | Off-Mom | 85 °C | -40 C | 8 mm | 8 mm | SPST-NO |
